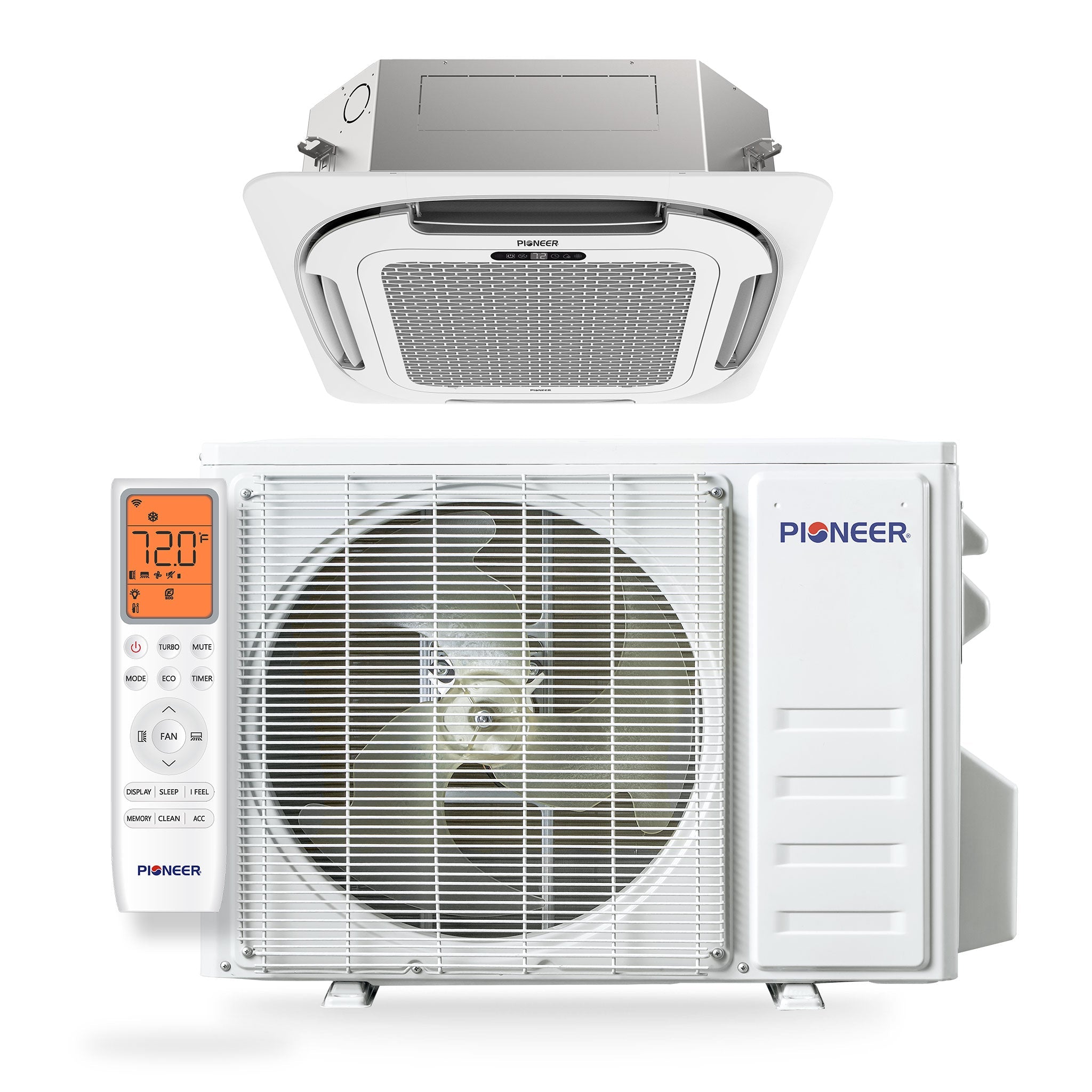

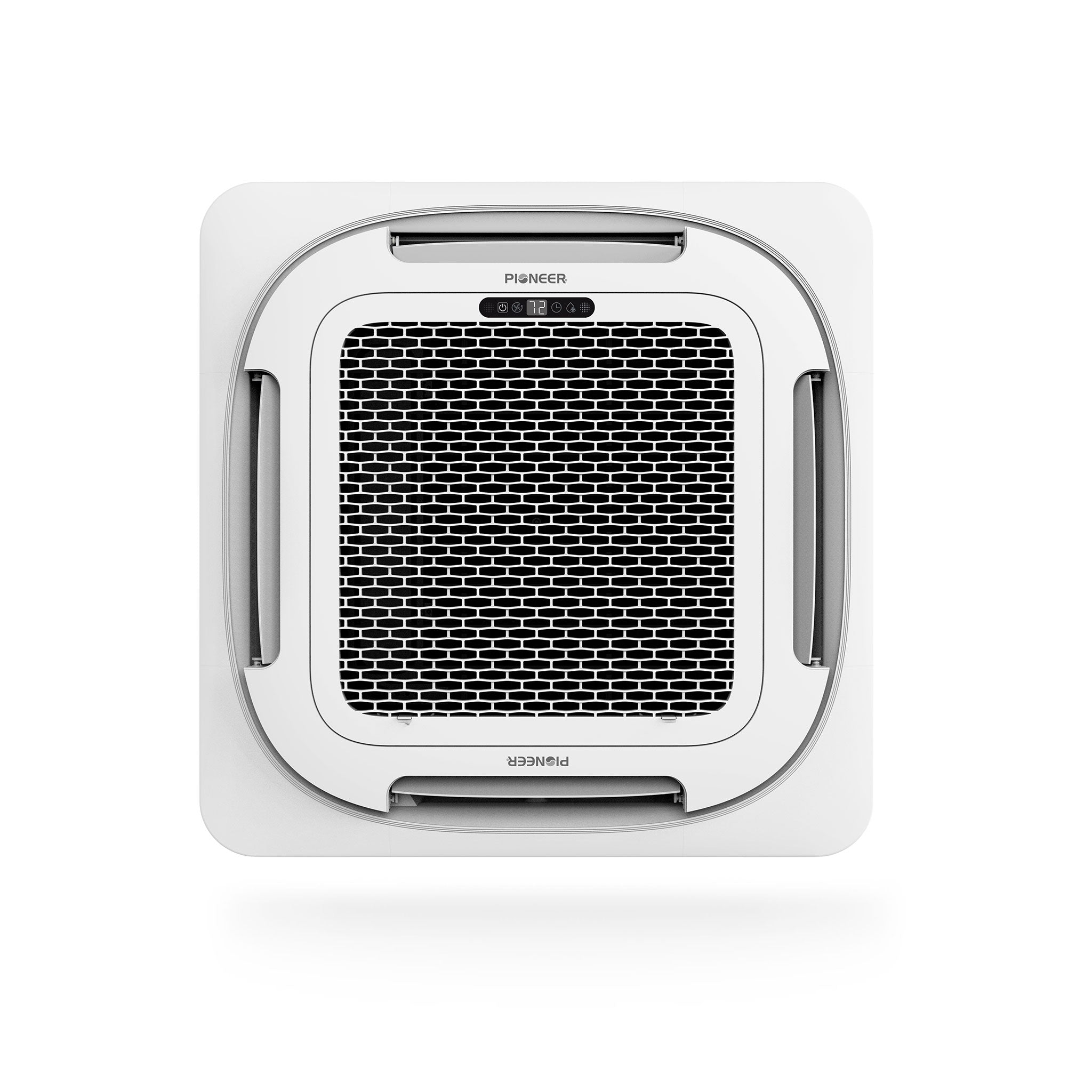

Pioneer® Quantum Ultra™ 12,000 BTU 21 SEER2 230V 8-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Summary

• High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
• Cooling capacity: 12,000 BTU/H with 21 SEER2 / 11.7 EER2 efficiency
• Heating capacity: 12,000 BTU/H with 10 HSPF2 / 3.5 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

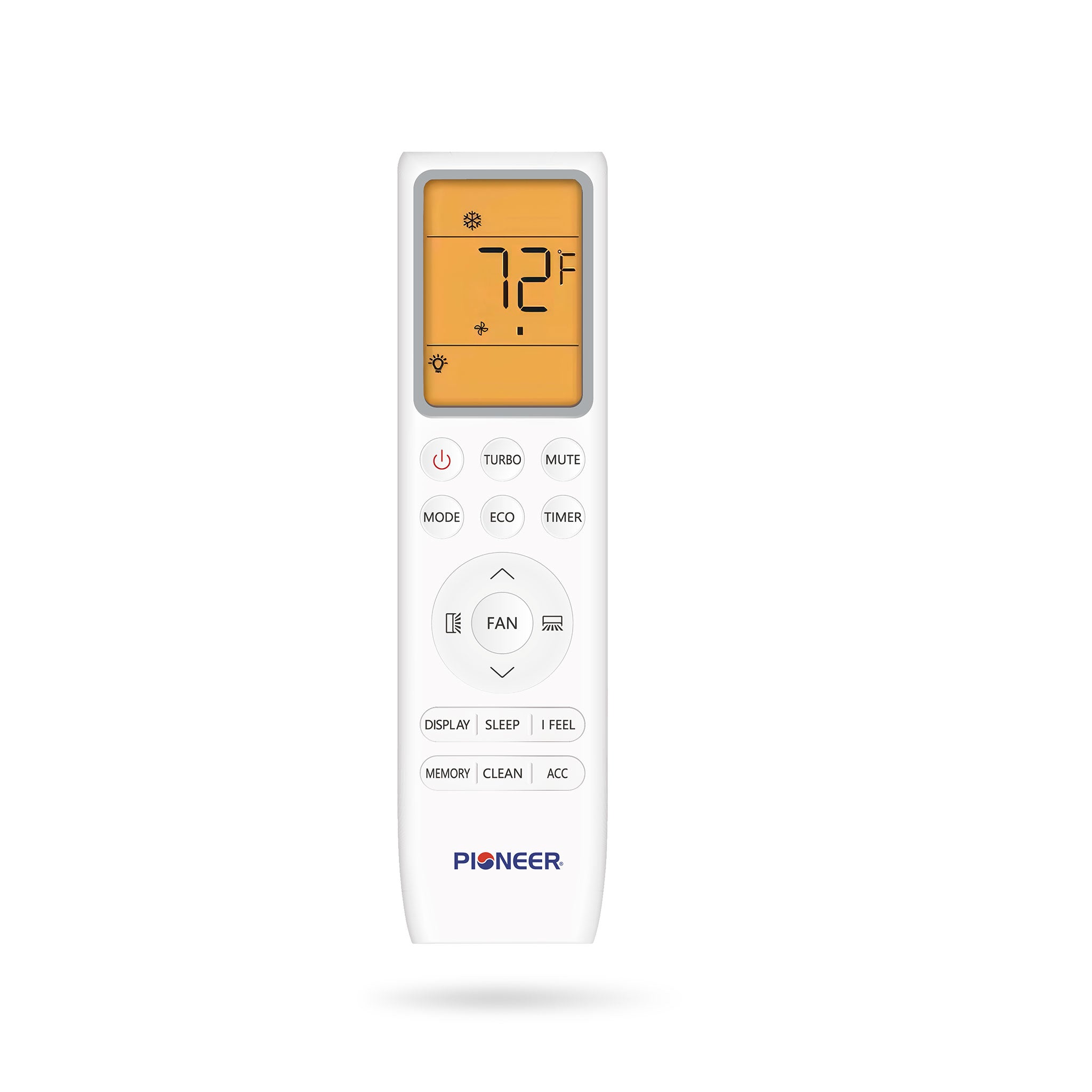

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

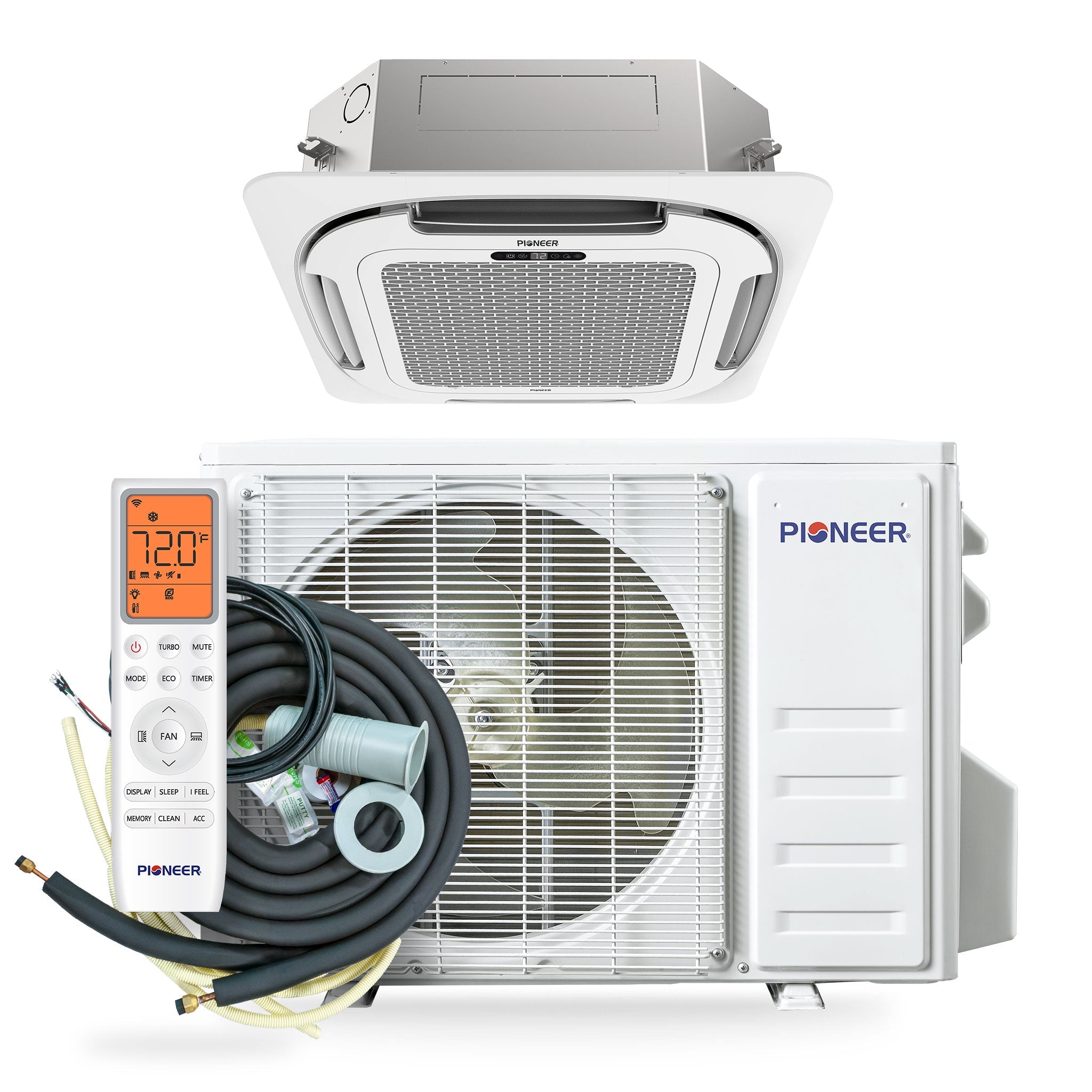

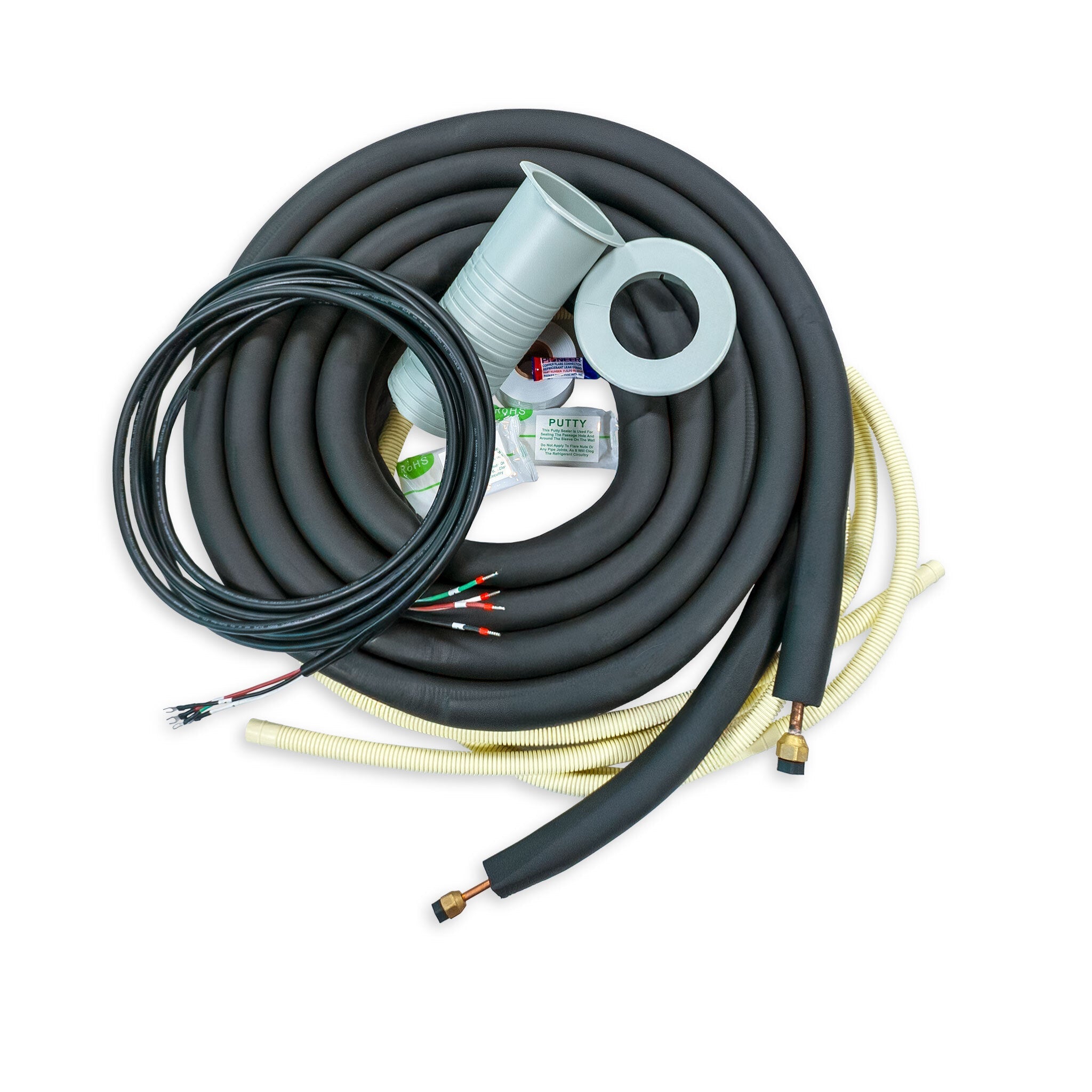

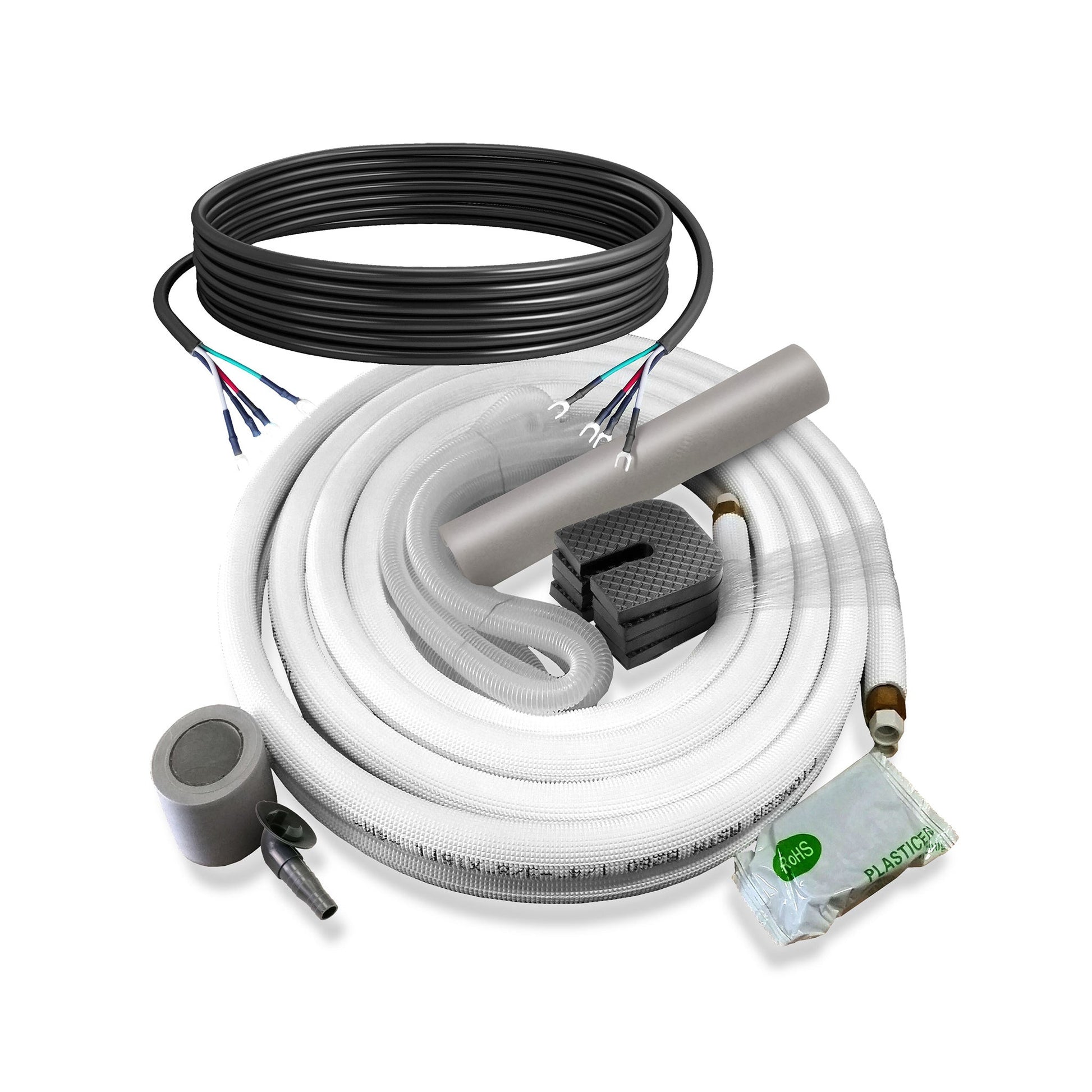

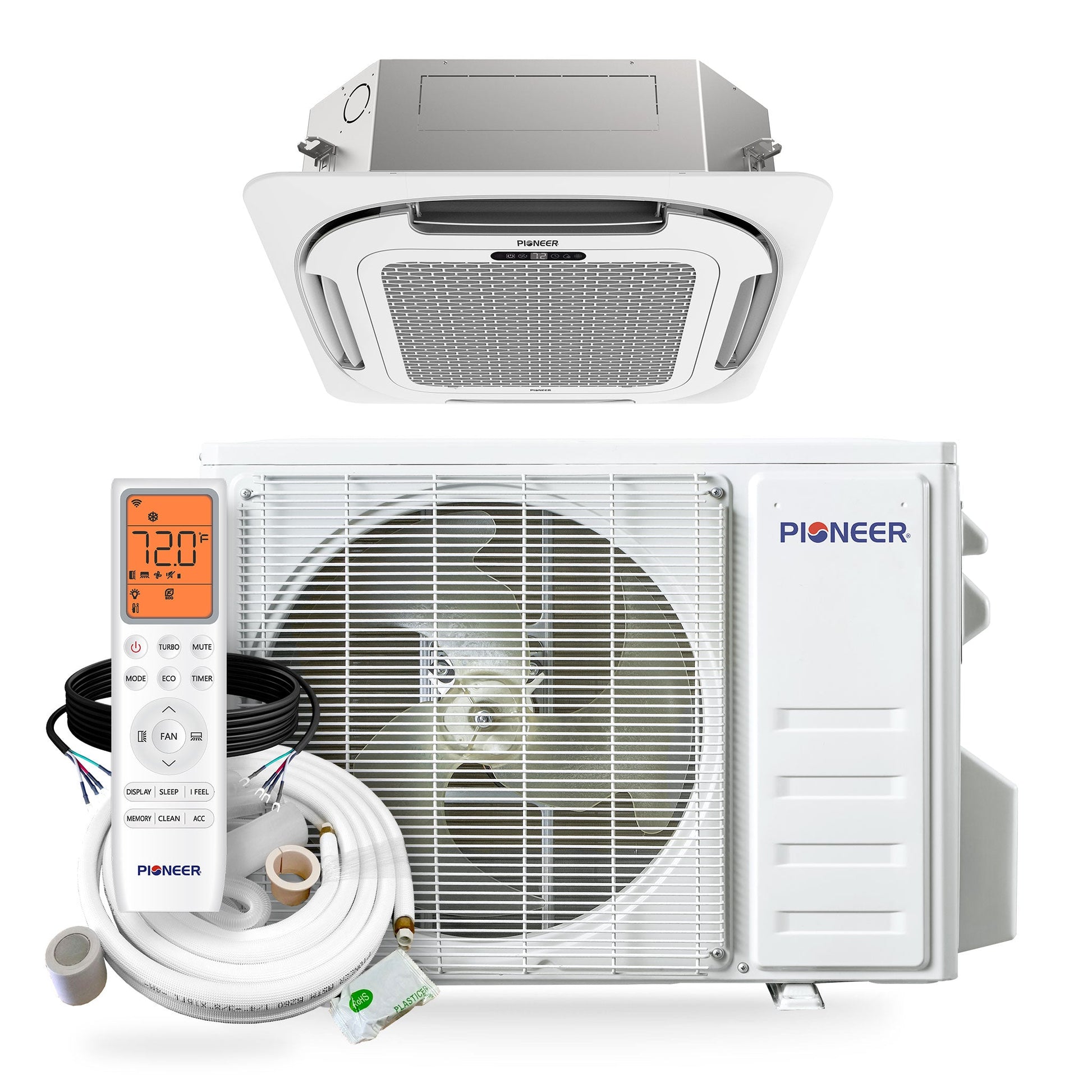

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 2,000~13,600 BTU/h
  • Cooling SEER2: 21.0 BTU/W.h
  • Cooling EER2: 11.7 BTU/W.h
  • Heating Rated Capacity: 12,000 BTU/h
  • Heating Capacity Range: 3,100~12,700 BTU/h
  • Heating HSPF2 (Region IV/V): 10.0 / 8.9 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.5 / 1.9 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 350~500 sq ft
  • AHRI Reference: 217048759

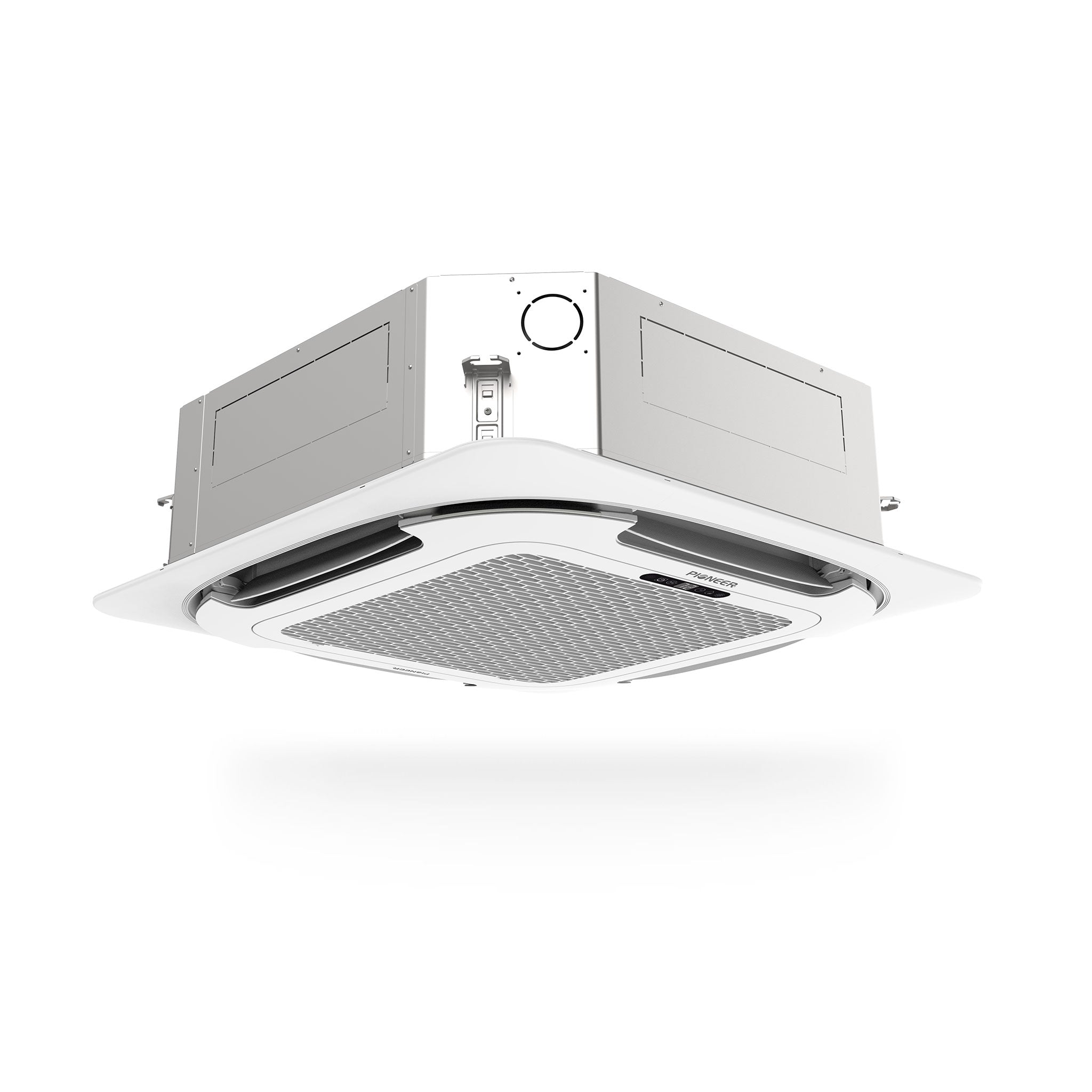

• Indoor Unit
  • Part Number: CT012GLSILCFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 470 / 411 / 323 / 205 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 46 / 44 / 36 / 32 / 30 dB(A)
  • Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
  • Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
  • Net / Gross Weight: 32.0 / 38.6 lbs
• Decorative Panel
  • Part Number: CT0918DPNL
  • Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
  • Carton Dimensions (WDH): 28"-7/8 x 28"-7/8 x 4"-3/8
  • Net / Gross Weight: 6.0 / 9.5 lbs

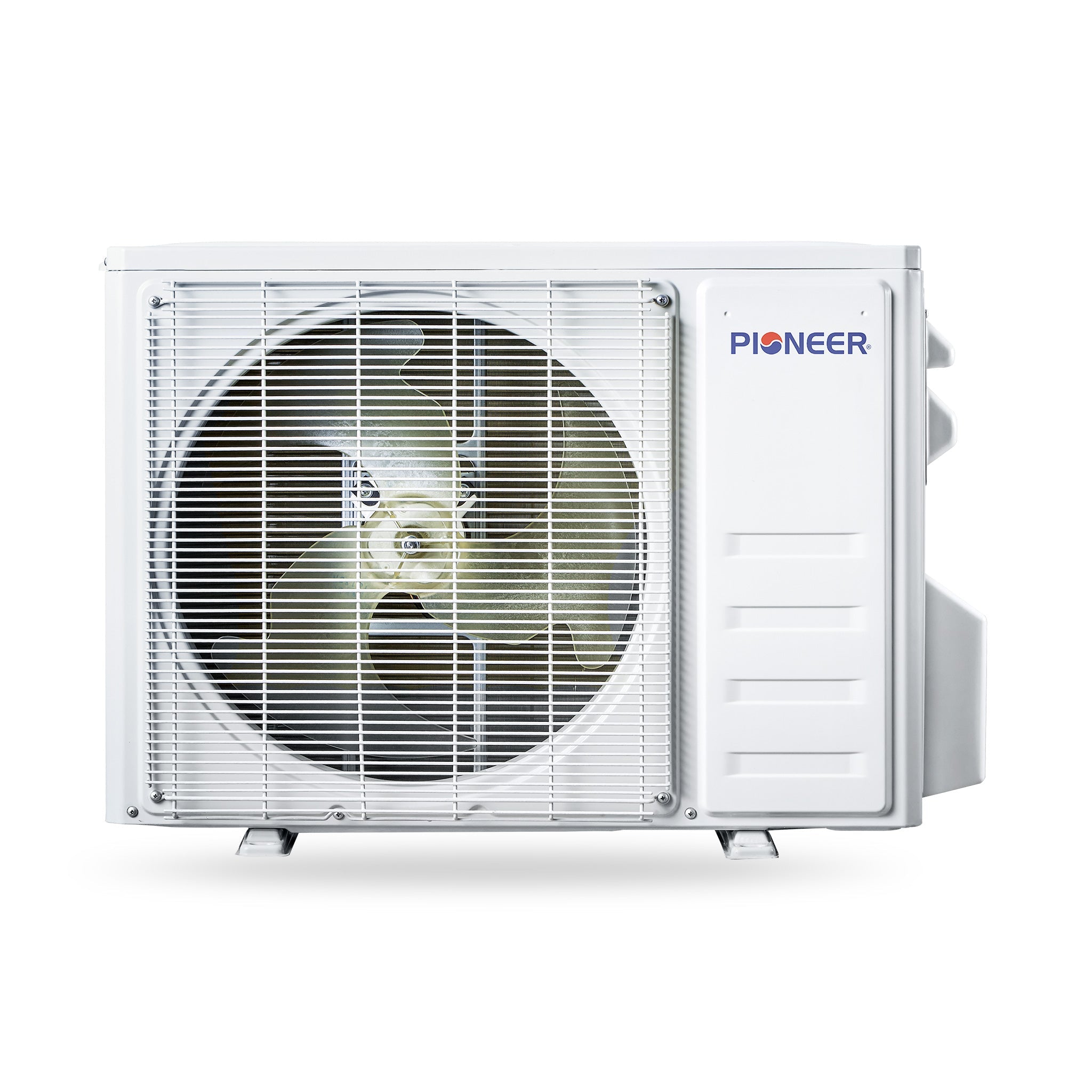

• Outdoor Unit
  • Part Number: YN012GLSI24RPG
  • Breaker Needed: 15A (double-pole)
  • Sound Level: 52 dB(A)
  • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
  • Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
  • Net / Gross Weight: 58.4 / 65.0 lbs.

Dimension Chart
