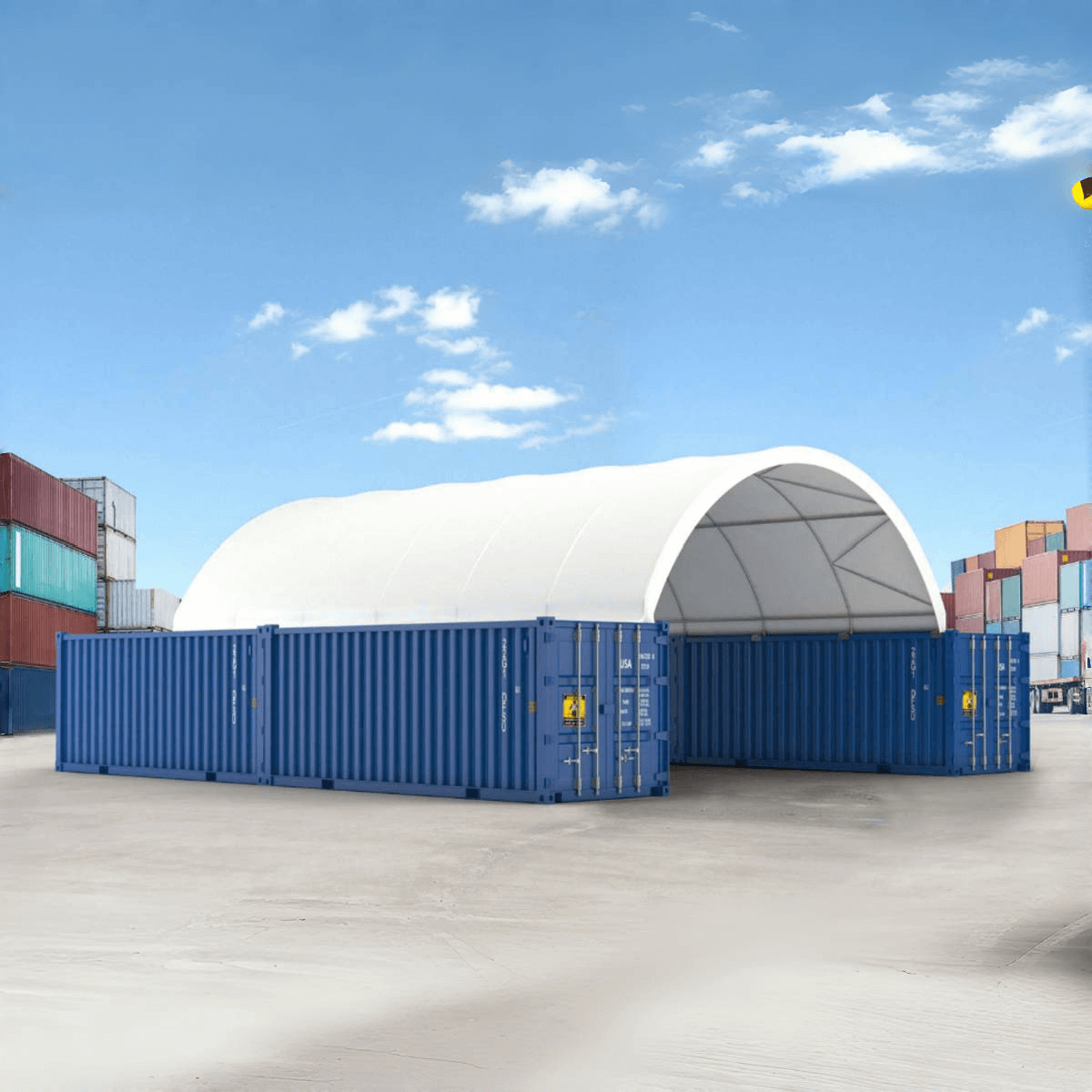

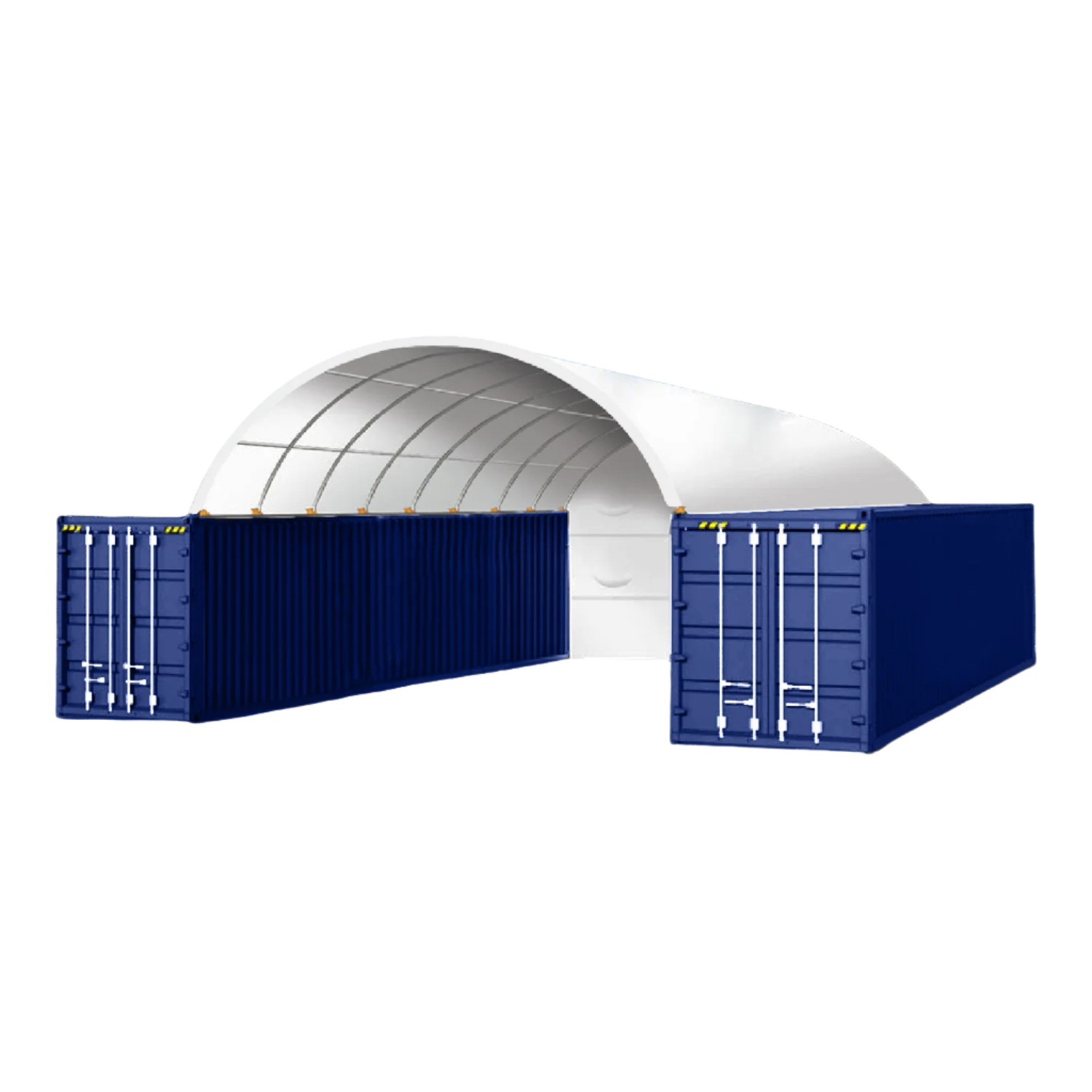

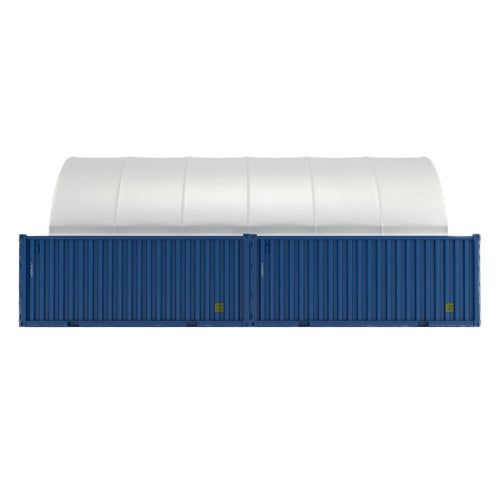

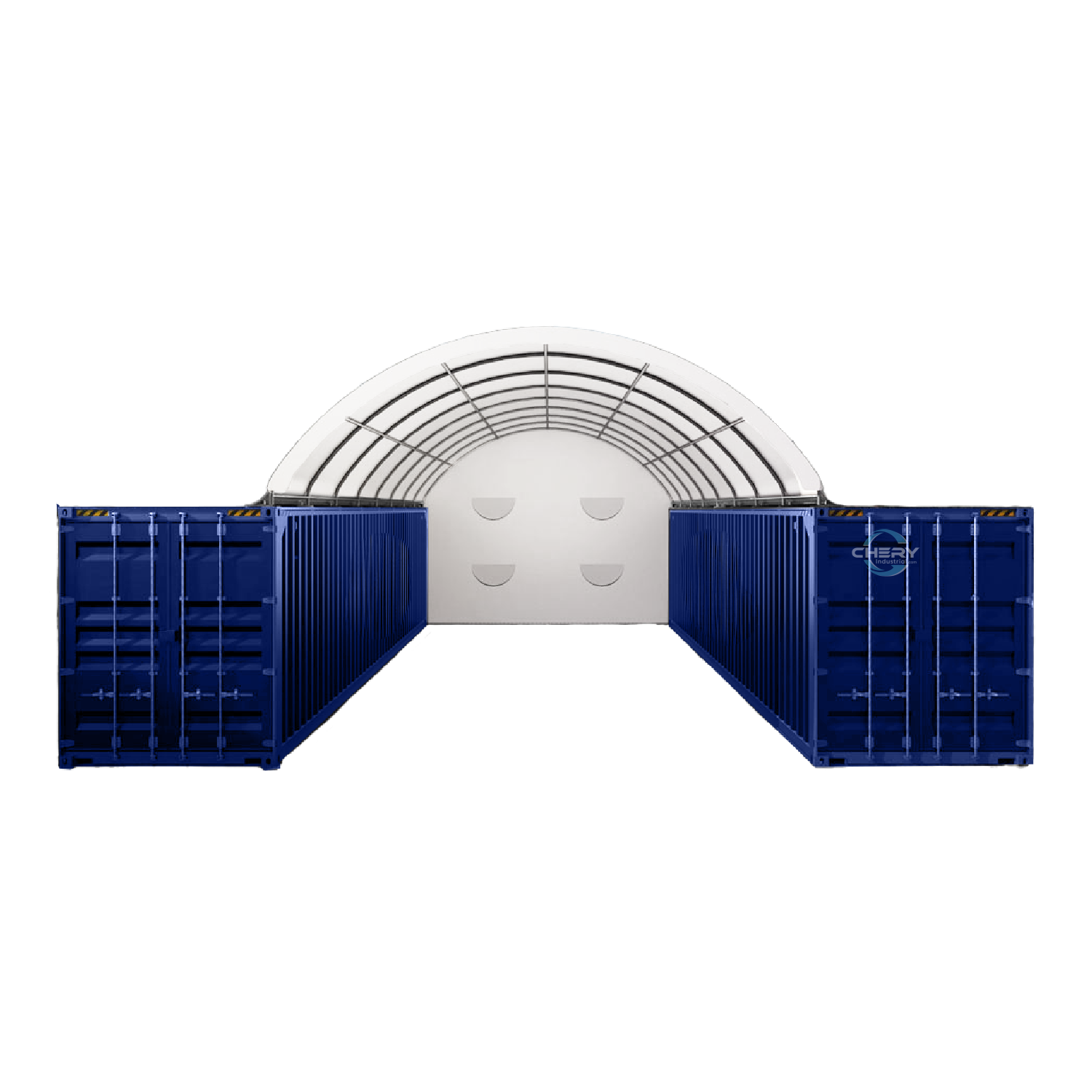

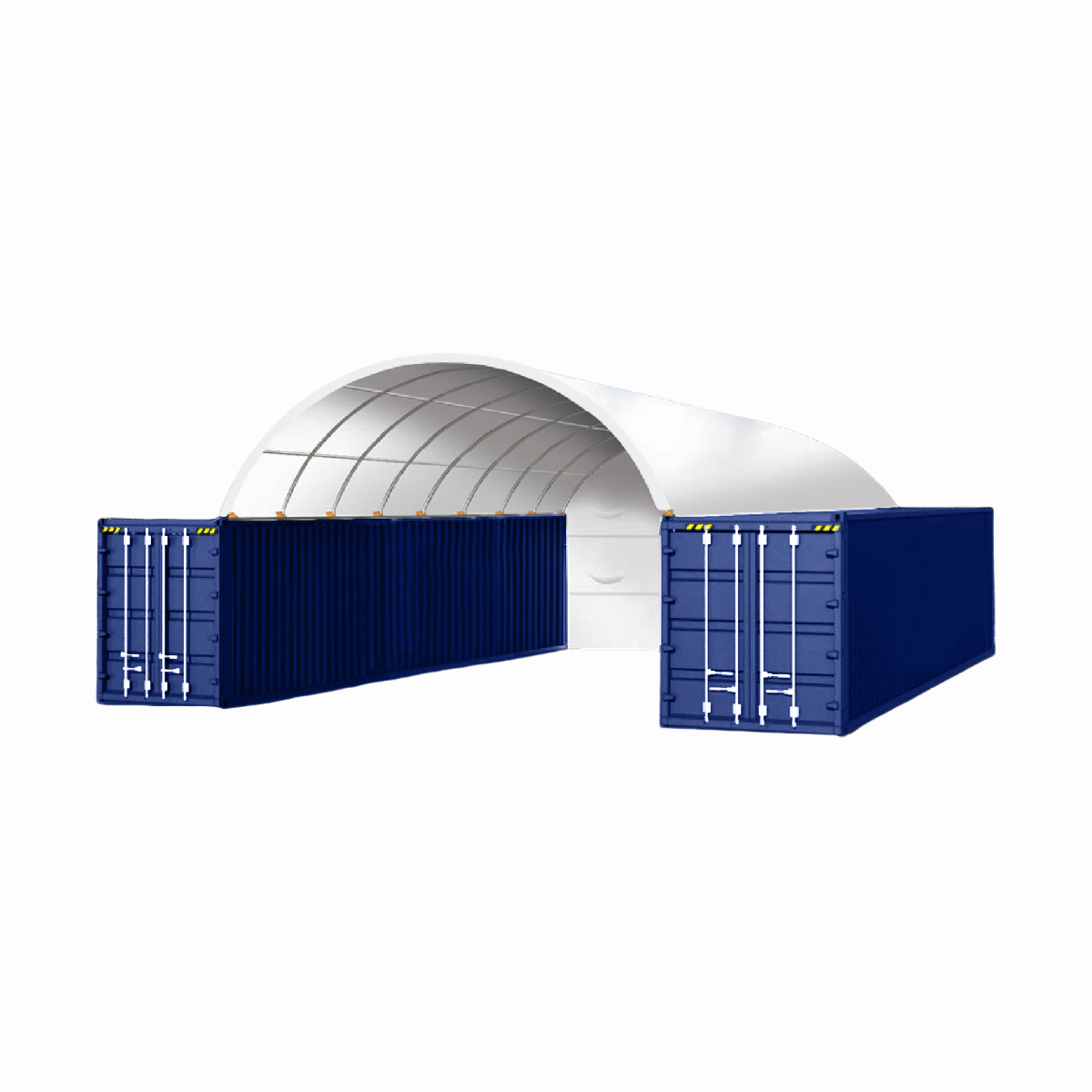

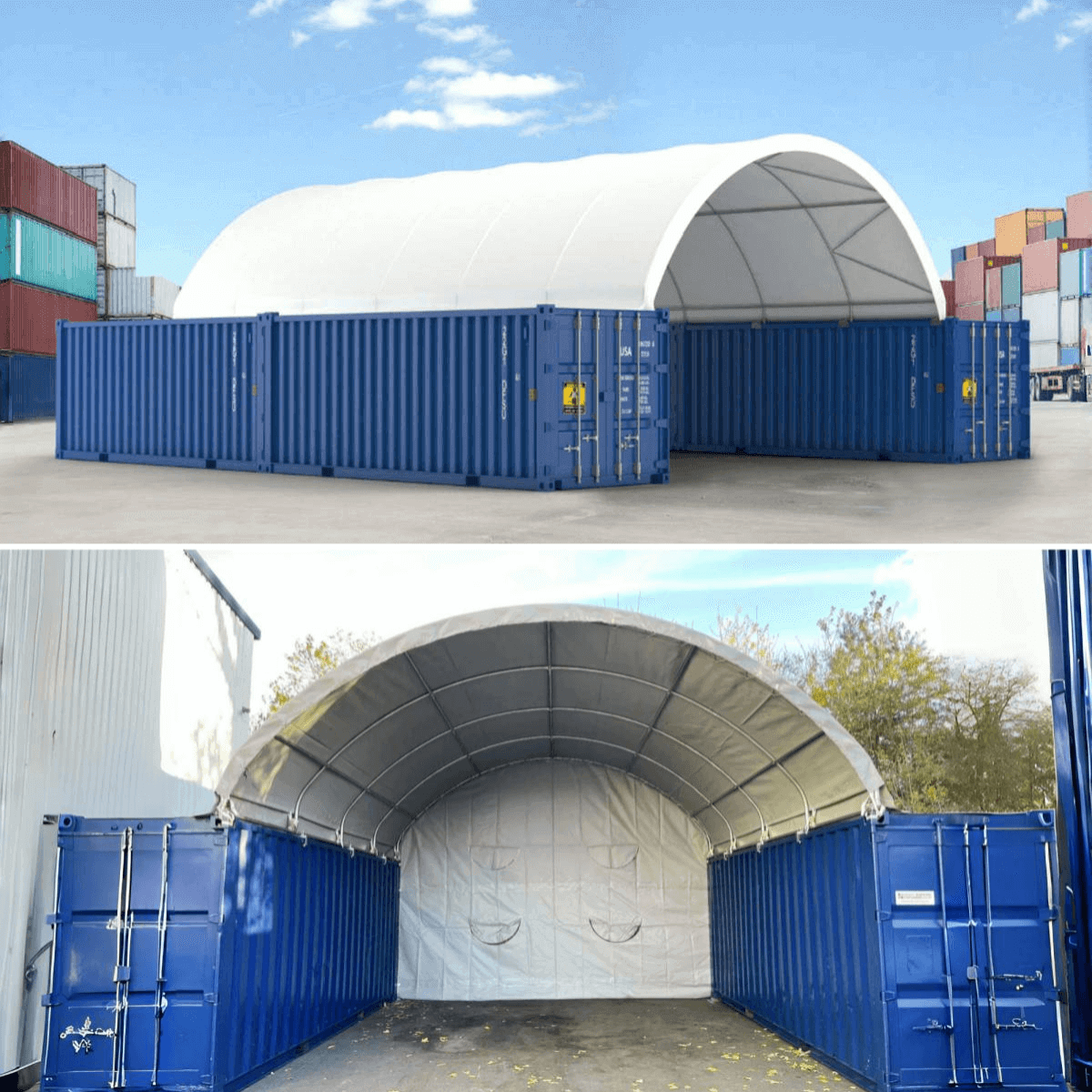

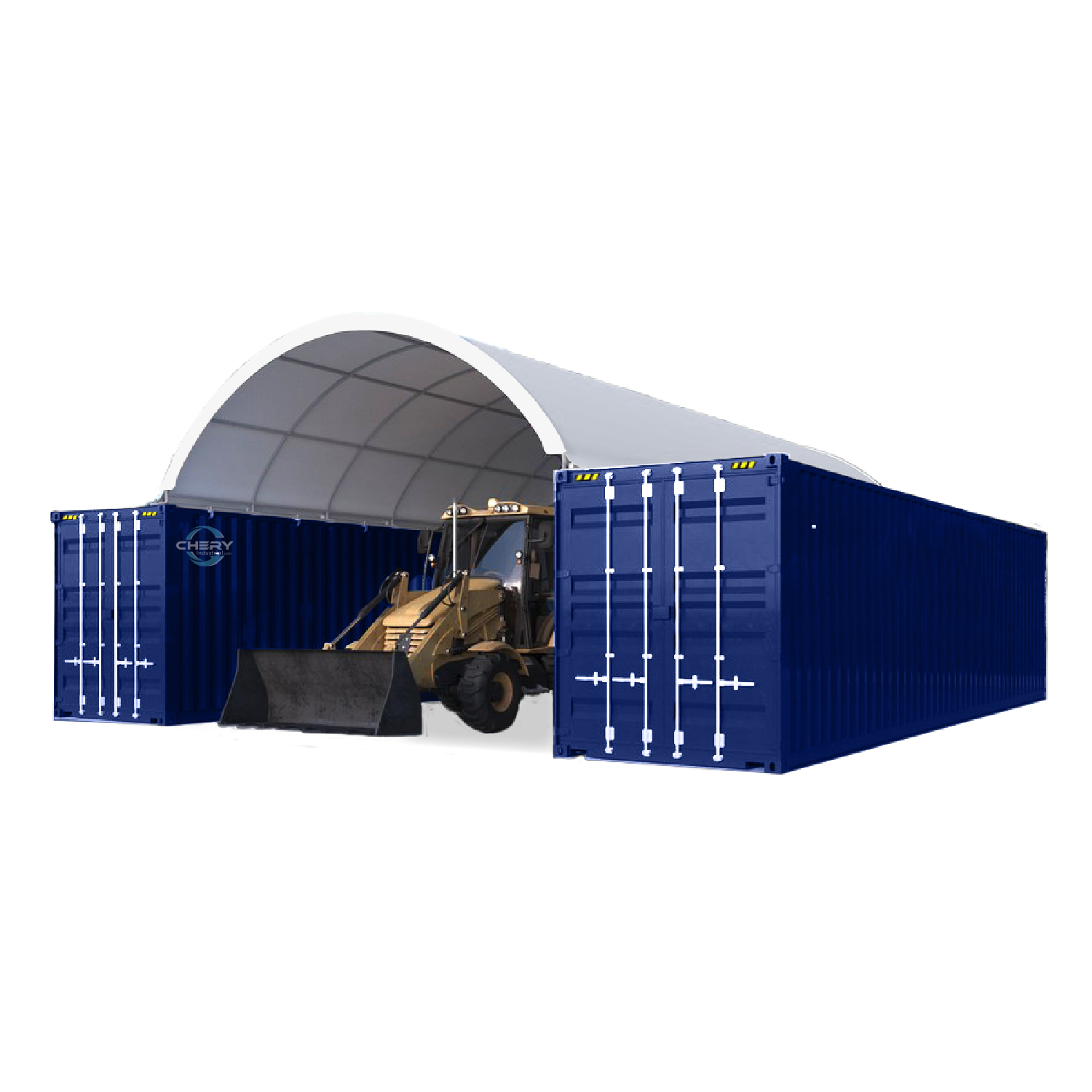

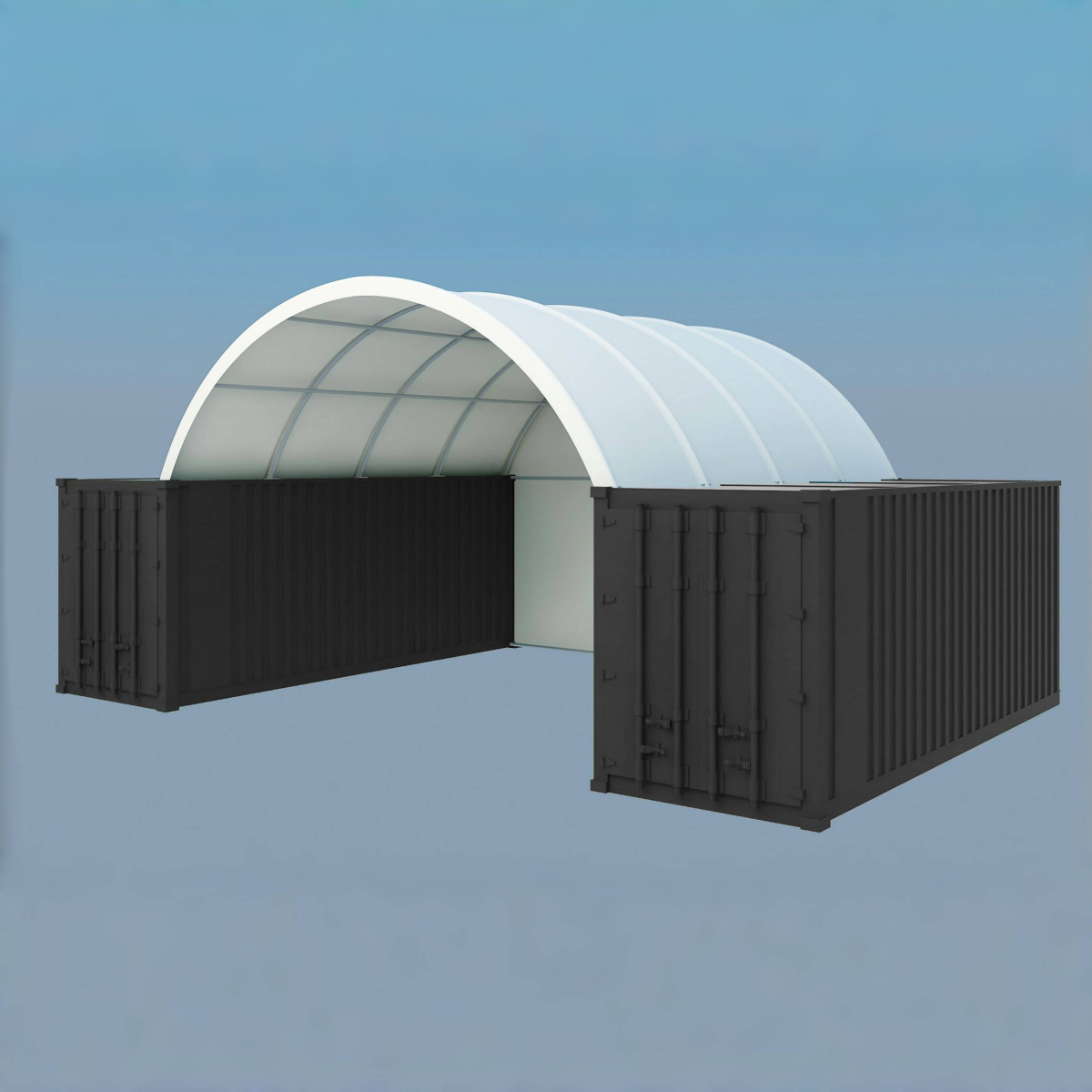

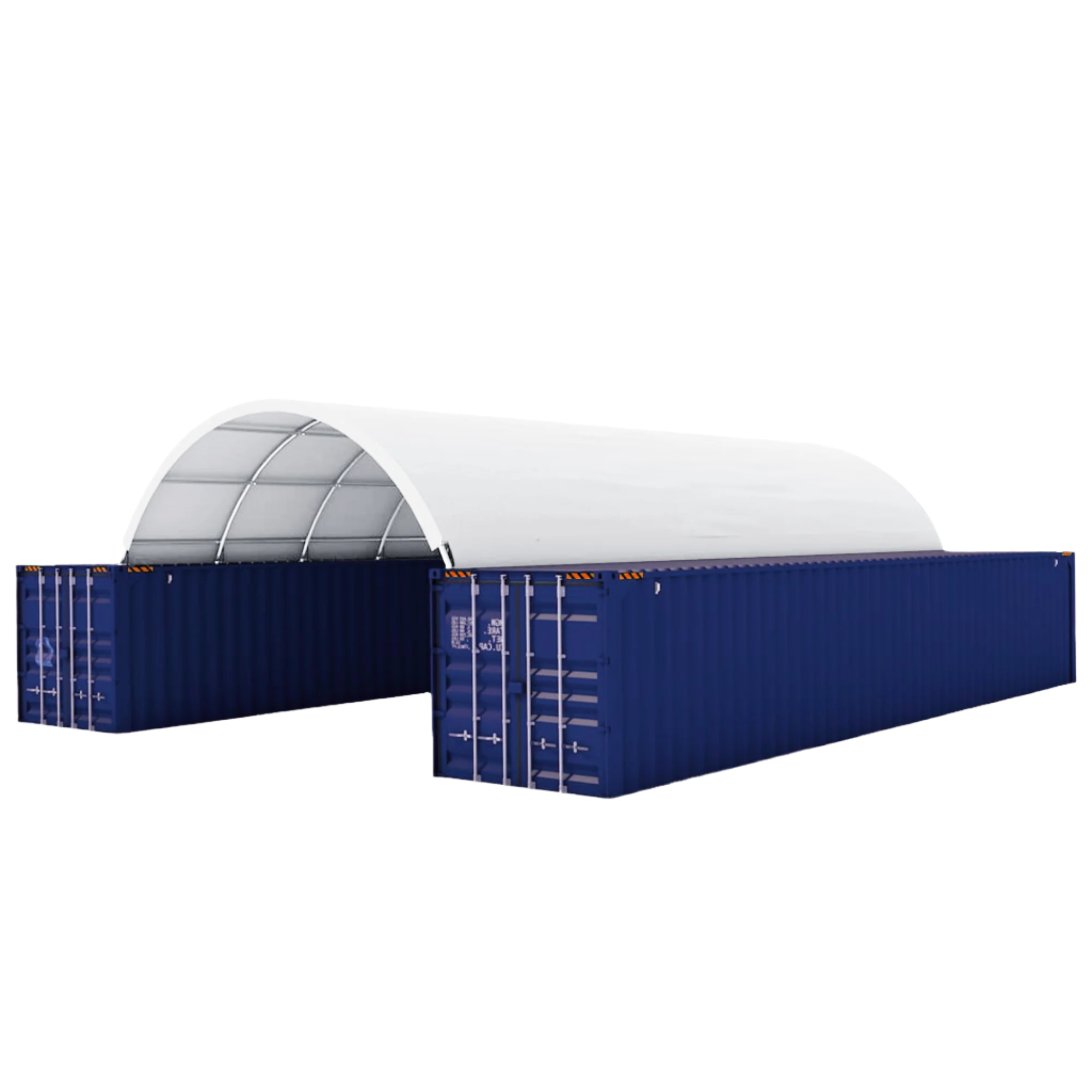

The 20x40 ft Container Shelter with Closed Back Panel boasts versatile tarpaulins in various materials and a robust PE back panel. This spacious, durable shelter provides excellent protection, making it ideal for diverse applications in any environment.
Installation Manual
How to Install the Container Shelter?
Specification
| Description |
Specifications |
| Model |
C2040 Dome Container Shelter |
| Dimension (ft) |

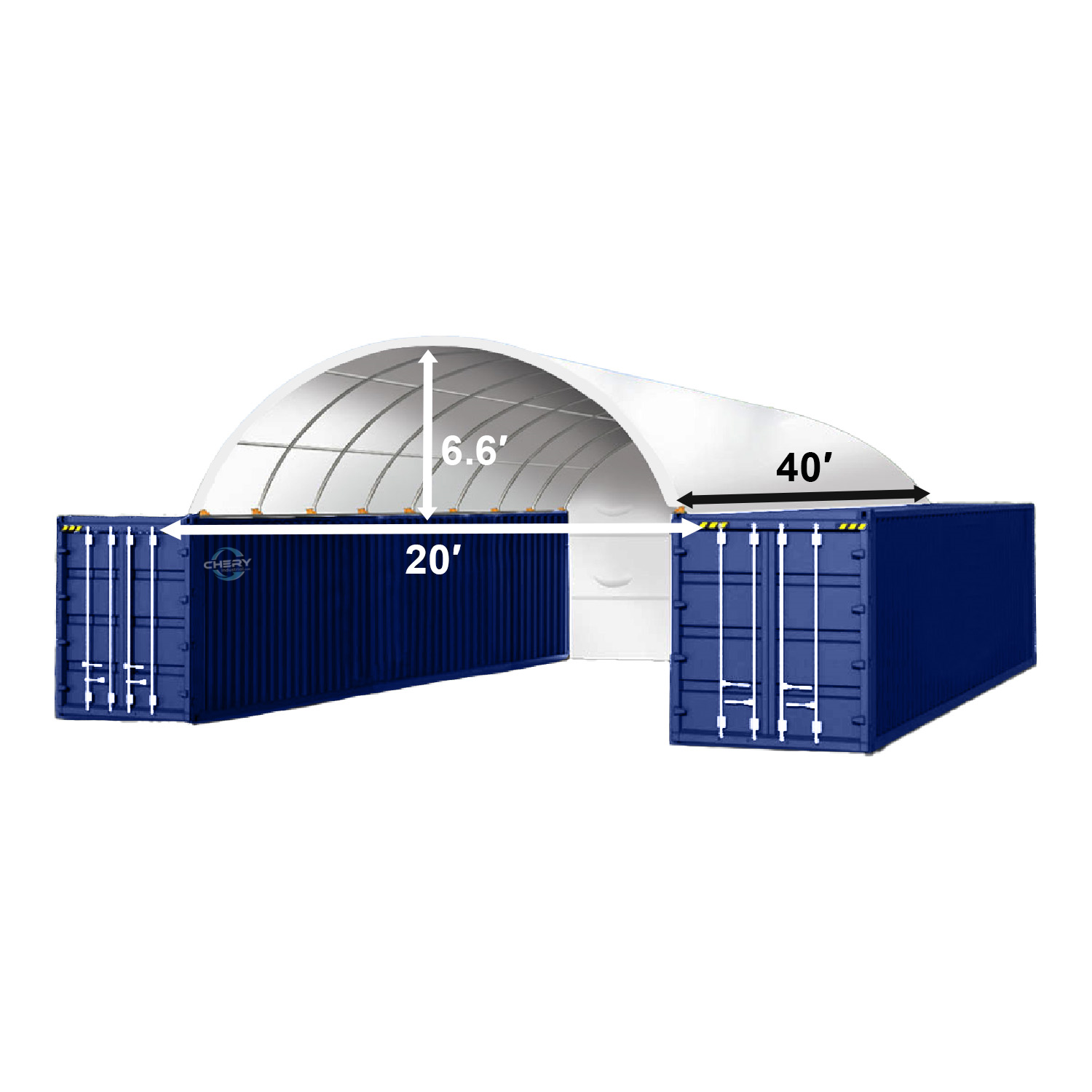

W20xL40xH6.6 |
| Frame |
Single Truss Galvanized Tube |
| Steel Structure |
High-Grade Hot Dip Galvanized Steel |
| Fabric |
- Economical - 11oz/m²(300 gsm) Polyethylene (PE) Tarpaulin Fabric
- Heavy Duty - 15oz/m²(420 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 22oz/m²(610 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
|
| Fabric Feature |
Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature resistance |
-22 - +158 °F |
| Front/back walls (optional) |
|
| Arch Interval |
5 ft |
| Arch Ø (mm) |
Ø45x1.5 |
| Purlin Ø (mm) |
Ø32x1.2 |
| Tension System |
Pipe and Ratchet Tie-Down System |
| Easy Installation |

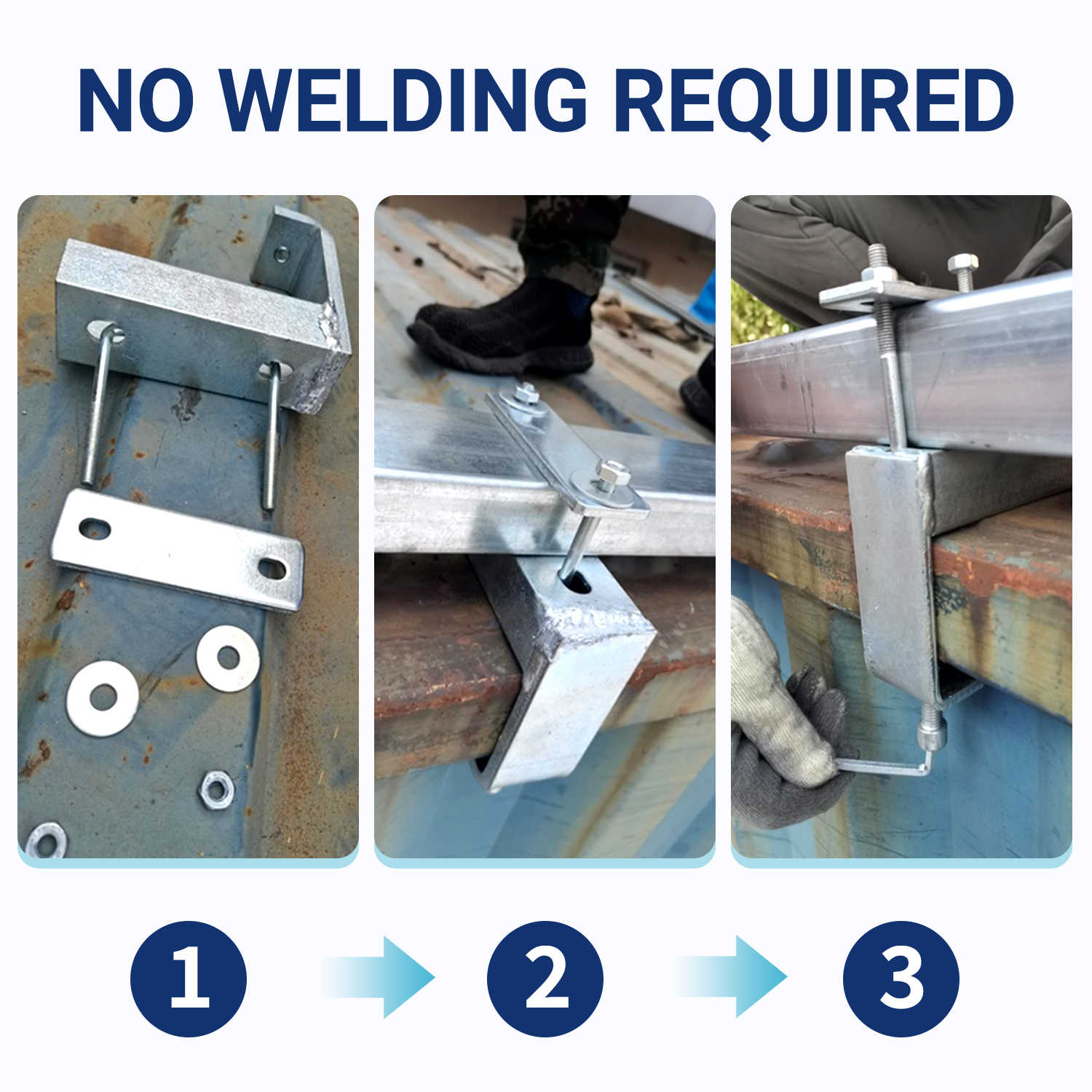

Twist lock and clamp installation |
| Weld |
No welding required |
| Snow Load |
48 lbs/ft² |
| Wind Load |
50 miles/h |
| Average assembly time for DIY with 4 persons |
Max. 1 day |
| Safety |
The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan |
15+ years |
| Warranty |
- PE: 2 Years Warranty
- PVC: 8 Years Warranty
|
Note
- The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
- The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
Feature
- Style: Pony Wall.
- The tarpaulin is PFAS-free and EU REACH compliant.
- CSA/TUV Snow Rating Report.
- SGS fabric Certificate.
- No pole inside, and 100% of the interior space is available.

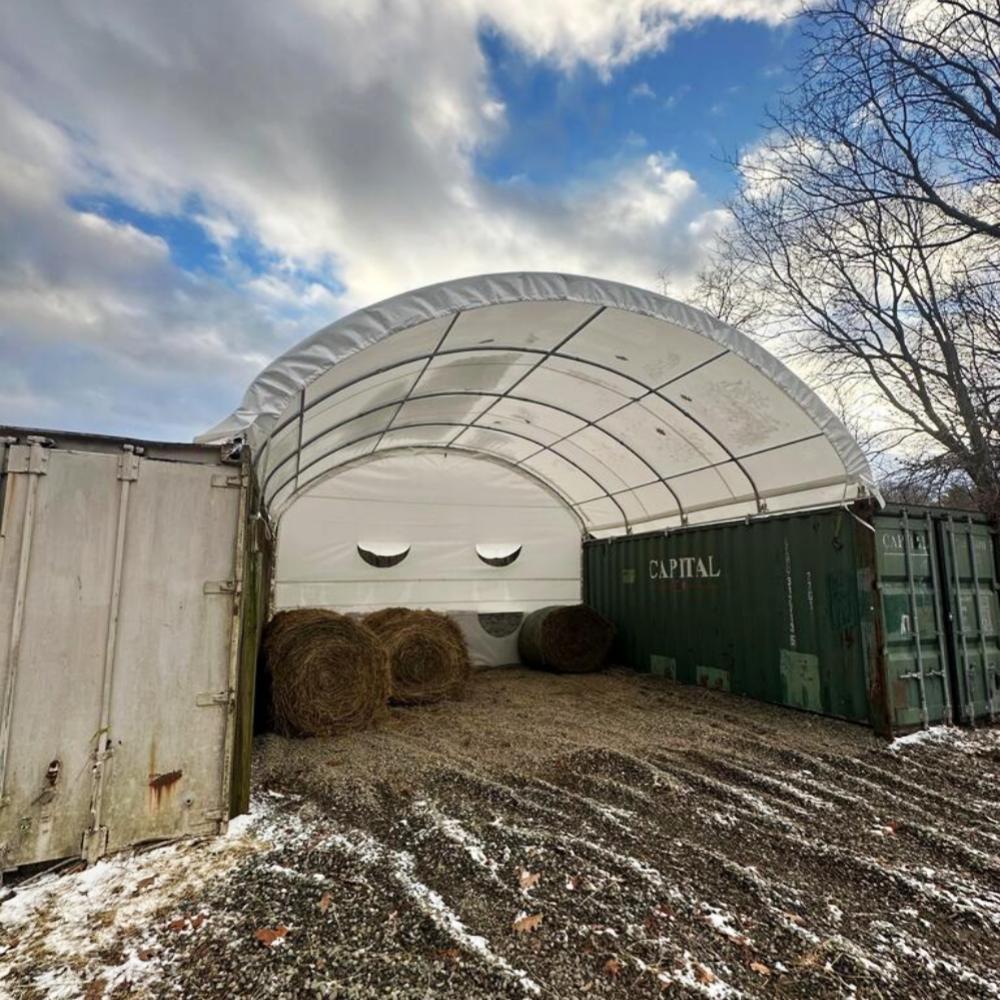

- Usage: Warehouse, farm tent, equipment storage, car lot, temporary office, livestock house, workshop, parties, big event.
Package Size
Box A:
- LxWxH (inch): 75x30x20
- Weight (lb): 805
- A forklift or equivalent is required for unloading
Box B:
- LxWxH(inch): 76x28.5x6
- Weight(lb): 86
A forklift or equivalent is required for unloading.
