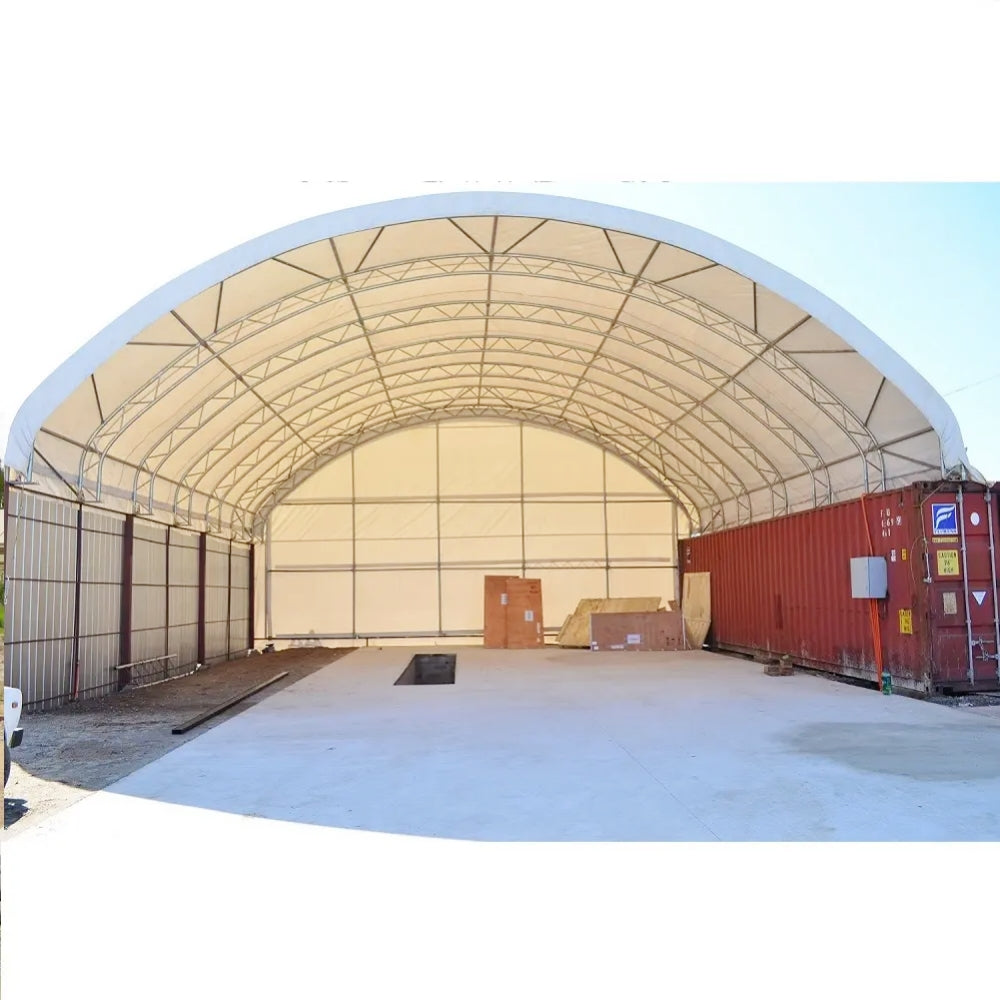

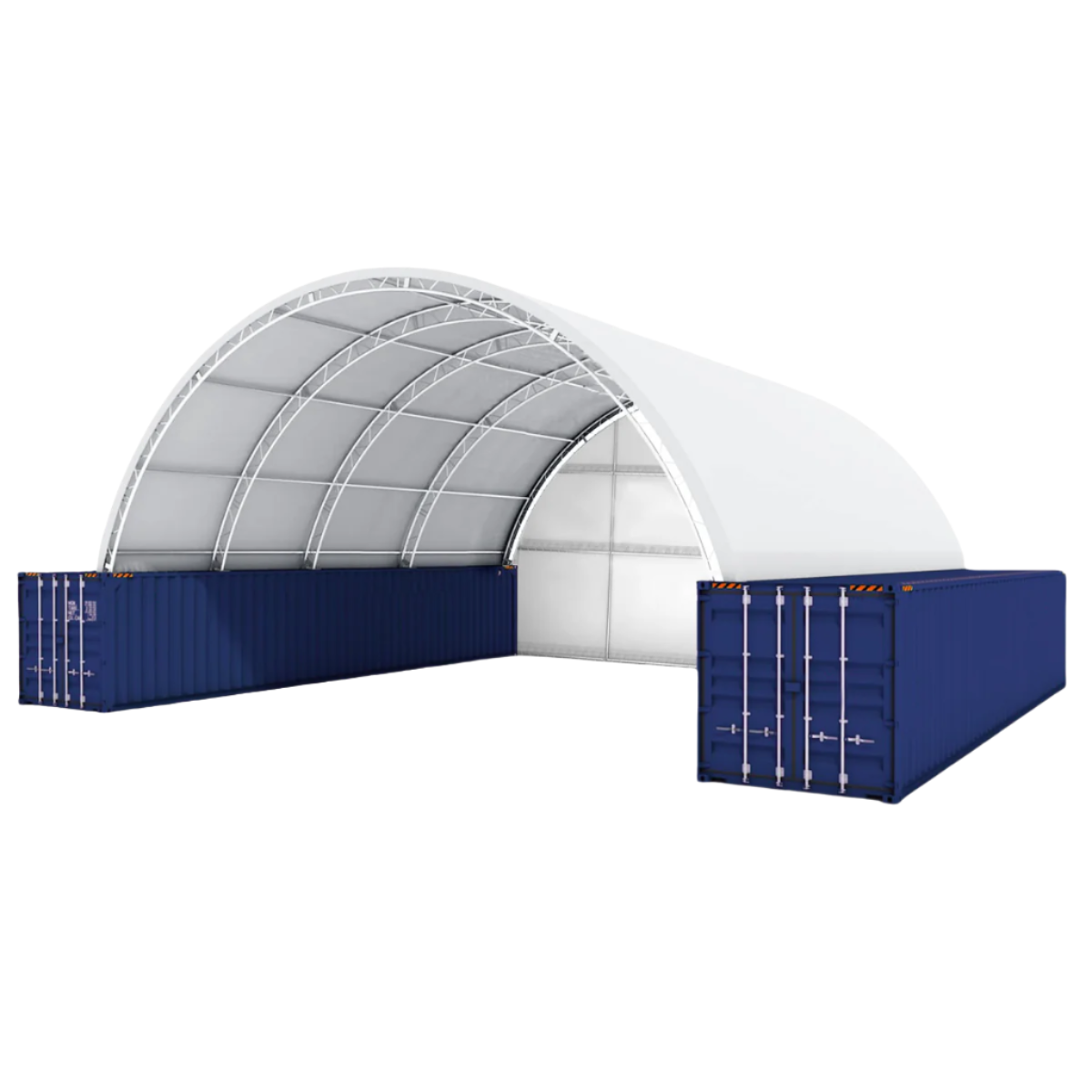

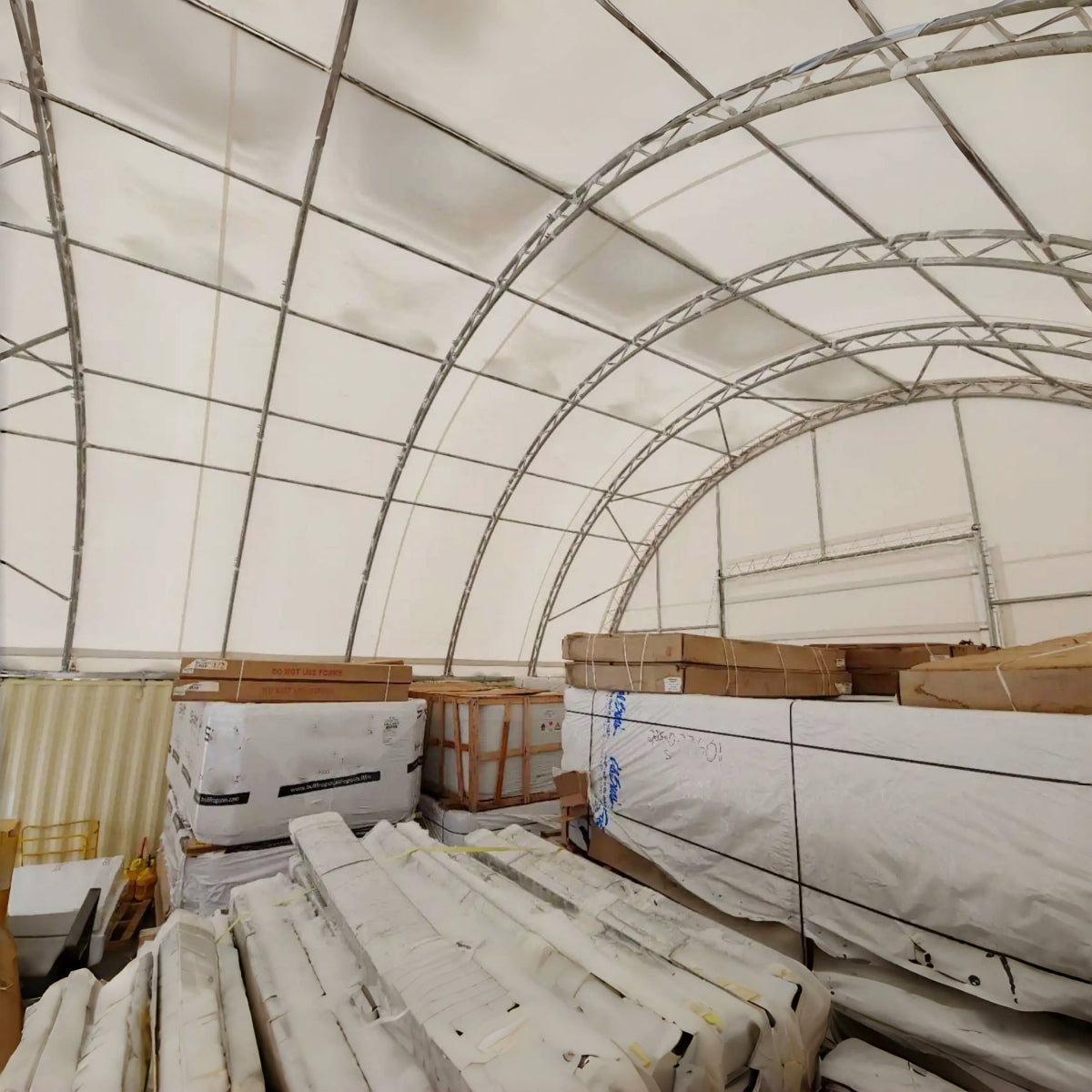

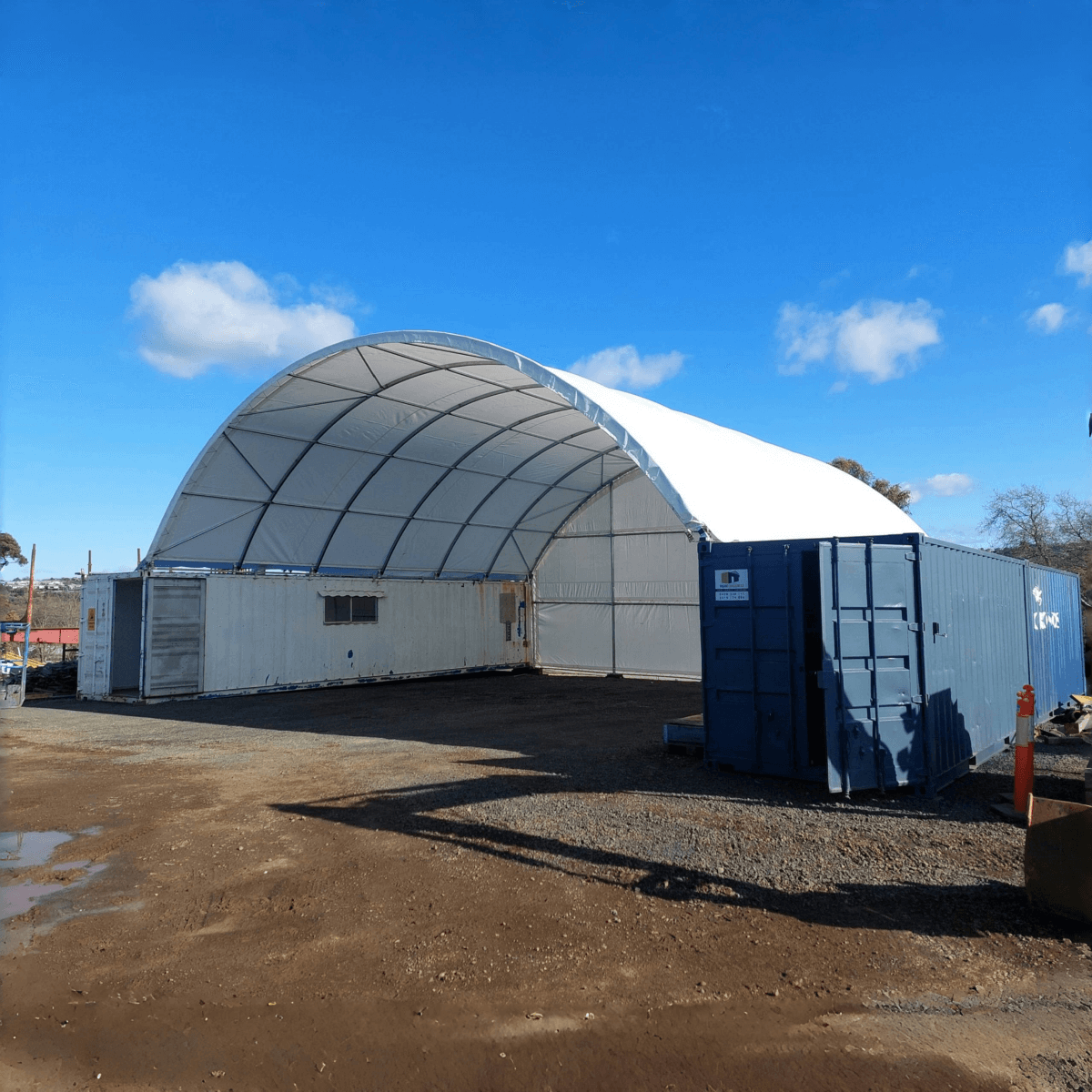

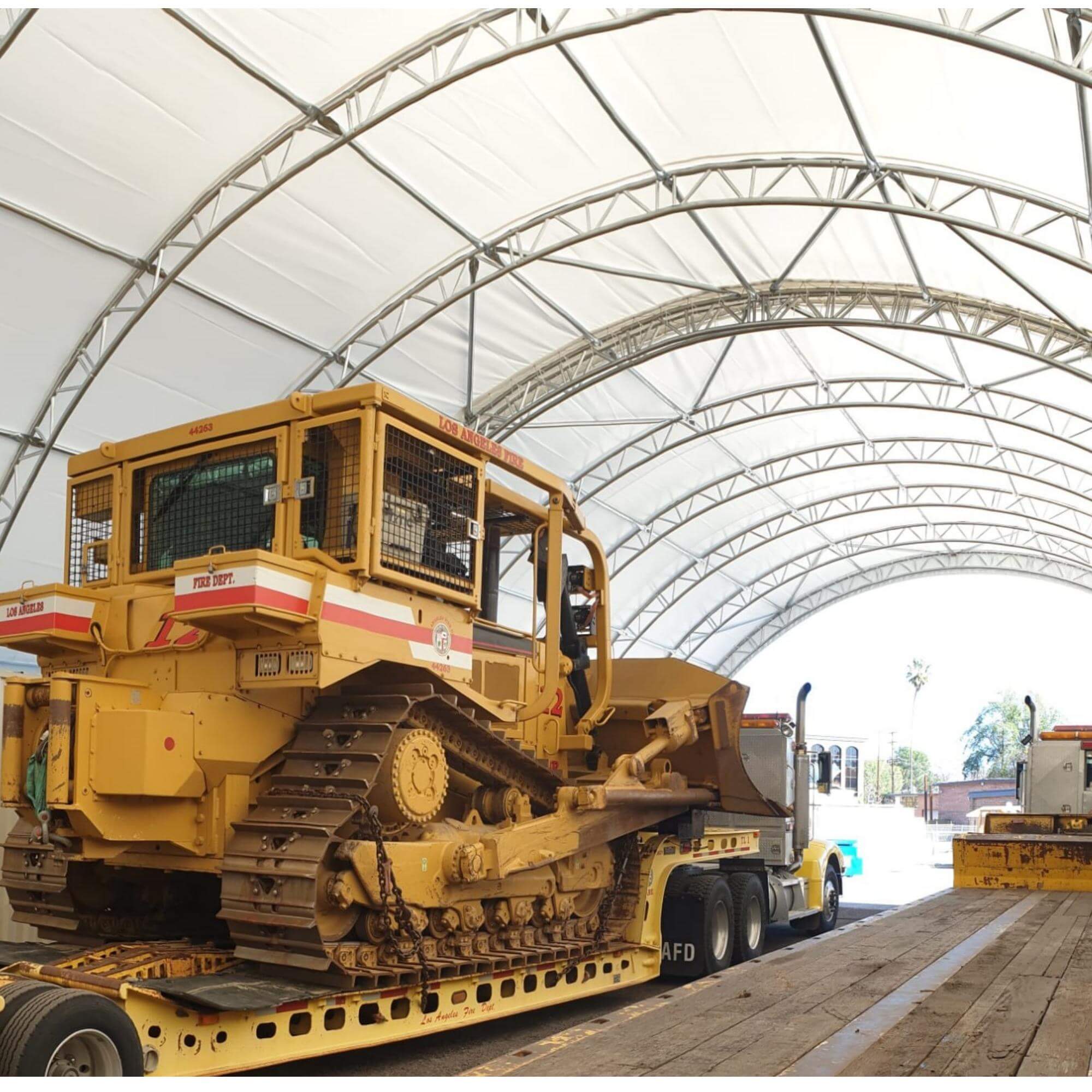

Introducing our 40x40x15 ft Container Shelter with Closed Back Panel, designed for robust protection and versatile storage. This durable structure features a closed back panel for enhanced security and weather resistance. Ideal for industrial, commercial, or personal use, it offers ample space and a sturdy galvanized steel frame for long-lasting reliability and performance.
Installation Manual

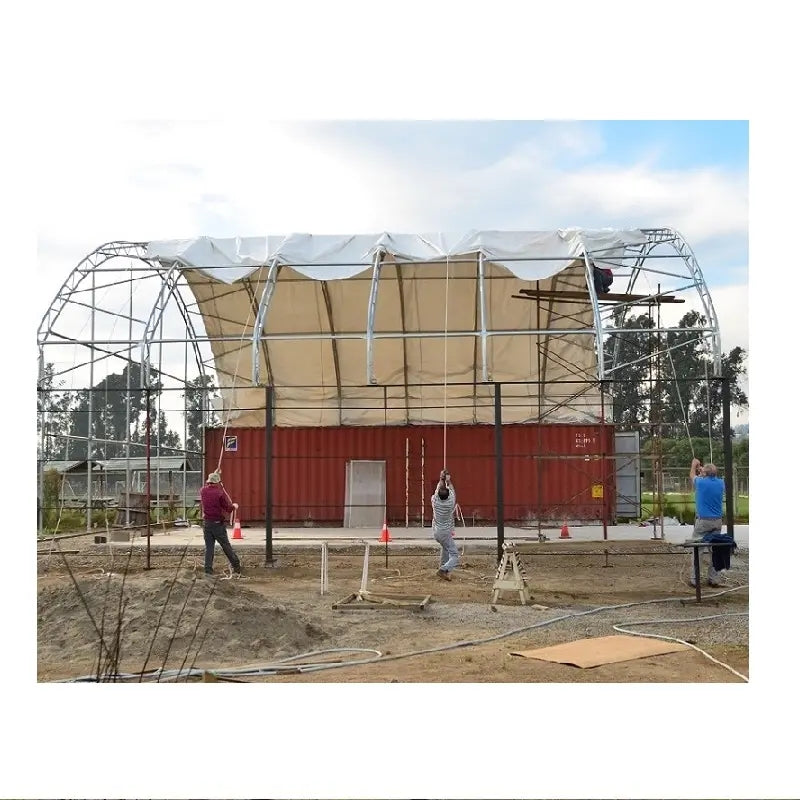

How to Install the Container Shelter?
Specification
| Description |
Specifications |
| Model |
C404015 Dome Container Shelter |
| Dimension (ft) |

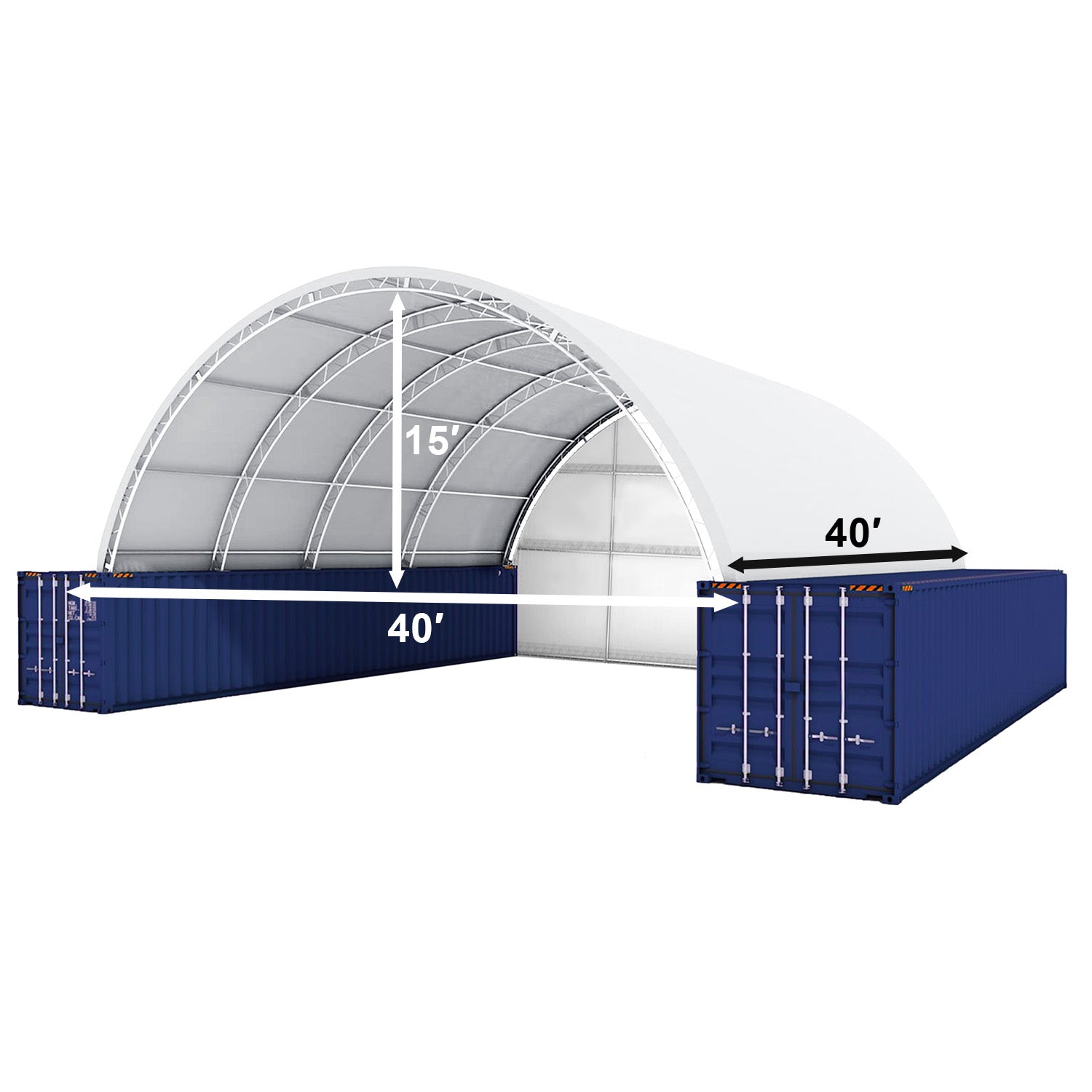

W40xL40xH15 |
| Frame |

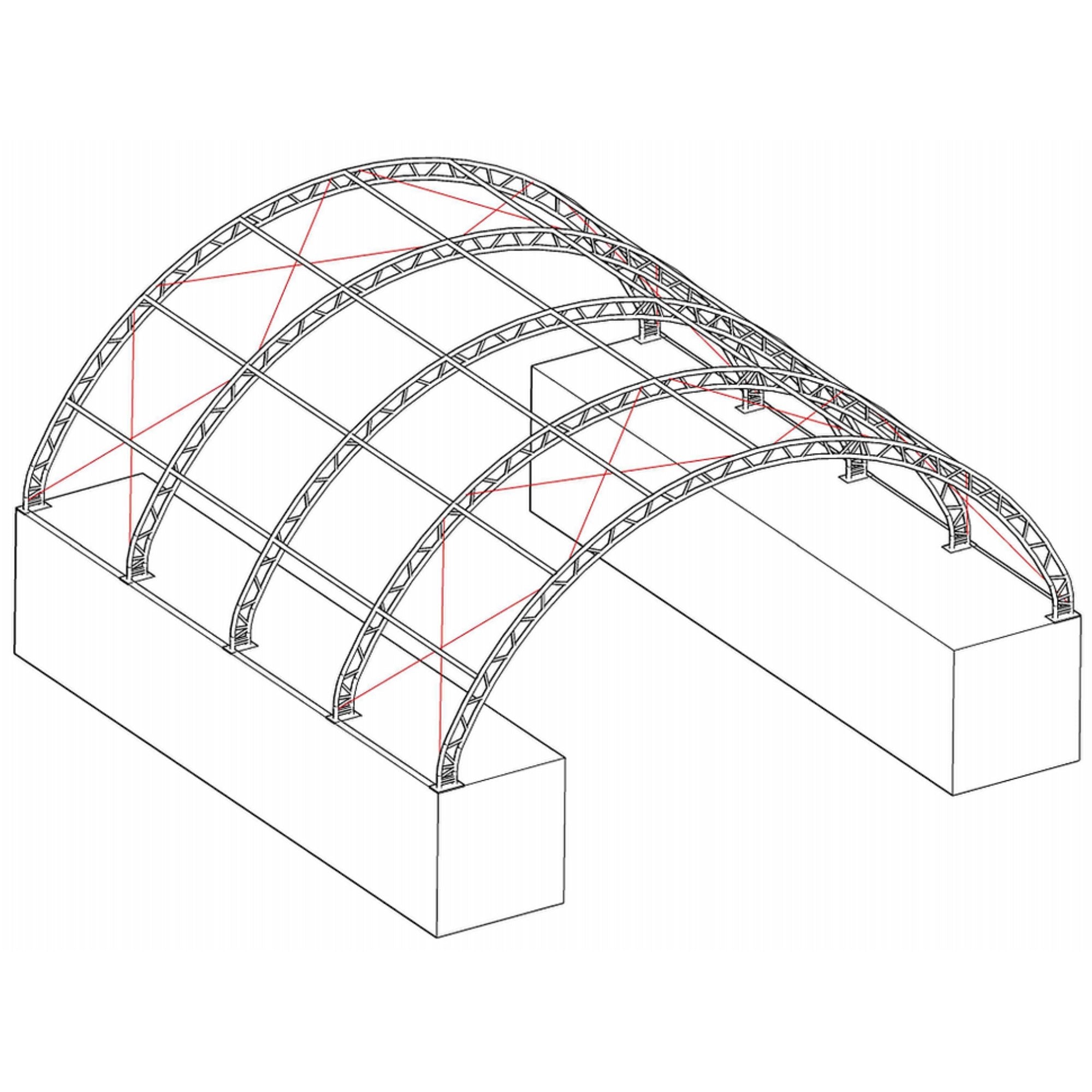

Double Truss Galvanized Tube |
| Steel Structure |
High-Grade Hot Dip Galvanized Steel |
| Fabric |
- Economical - 11oz/m²(300 gsm) Polyethylene (PE) Tarpaulin Fabric
- Heavy Duty - 15oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 22oz/m²(610 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
|
| Fabric Feature |
Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature Resistance |
-22 - +158 °F |
| Front/back walls (optional) |
|
| Arch Interval |
9.8 ft |
| Arch Ø (mm) |
Ø60x1.5 |
| Purlin Ø (mm) |
Ø48x1.5 |
| Tension System |

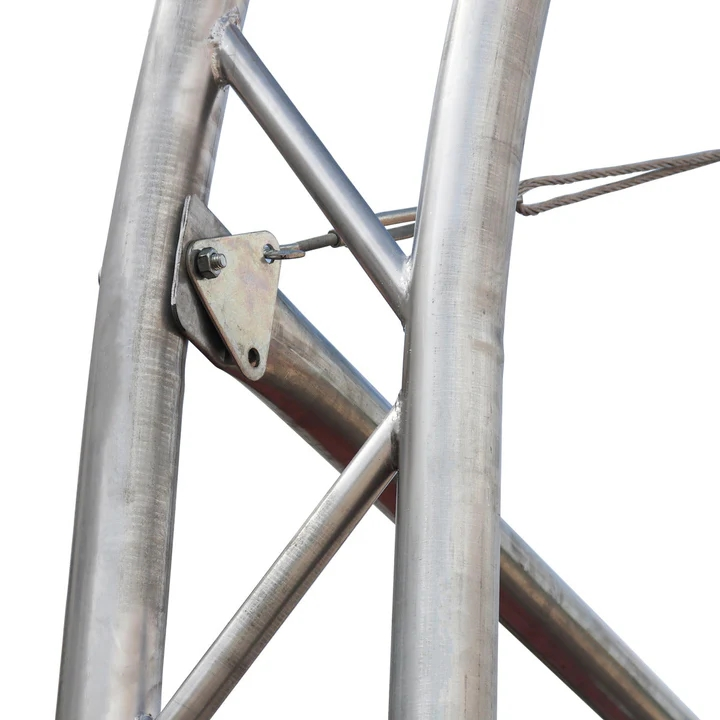

Pipe and Ratchet Tie-Down System |
| Easy Installation |

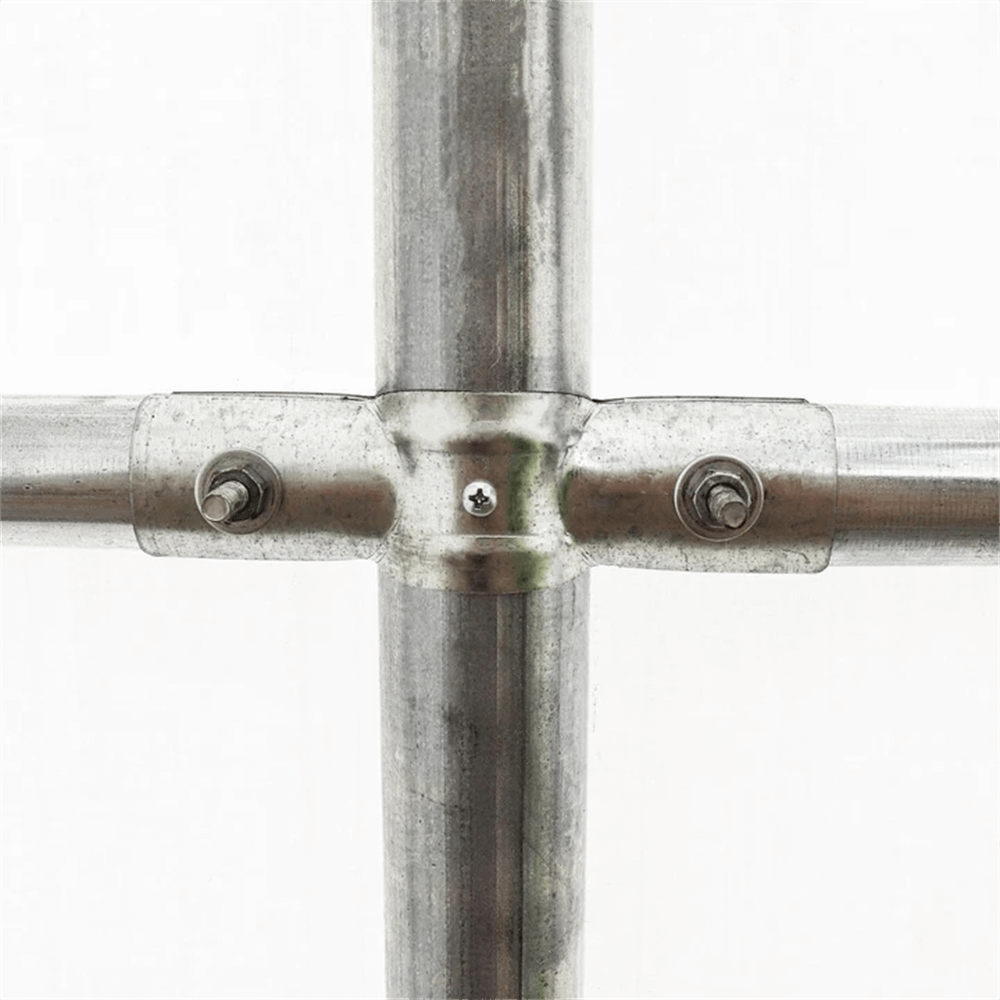

Twist lock and clamp installation |
| Weld |
Base plates need to be welded on the Containers. |
| Average assembly time for DIY with 4 persons |
- Shelter: 2 days
- Front or back wall: ½ day per wall
|
| Safety |
The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan |
15+ years |
| Warranty |
- PE: 2 Years Warranty
- PVC: 8 Years Warranty
|
Note
- The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
- The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
- Snow-state (Such as Alaska, Colorado, Vermont, etc)customers are strongly advised to opt for double-truss framing.
Package Size
-
Box 1
LxWxH (inch): 131x43x31
Weight (lb): 2100
-
Box 2
LxWxH (inch): 129x44x13
Weight (lb): 794
- A forklift or equivalent is required for unloading.
