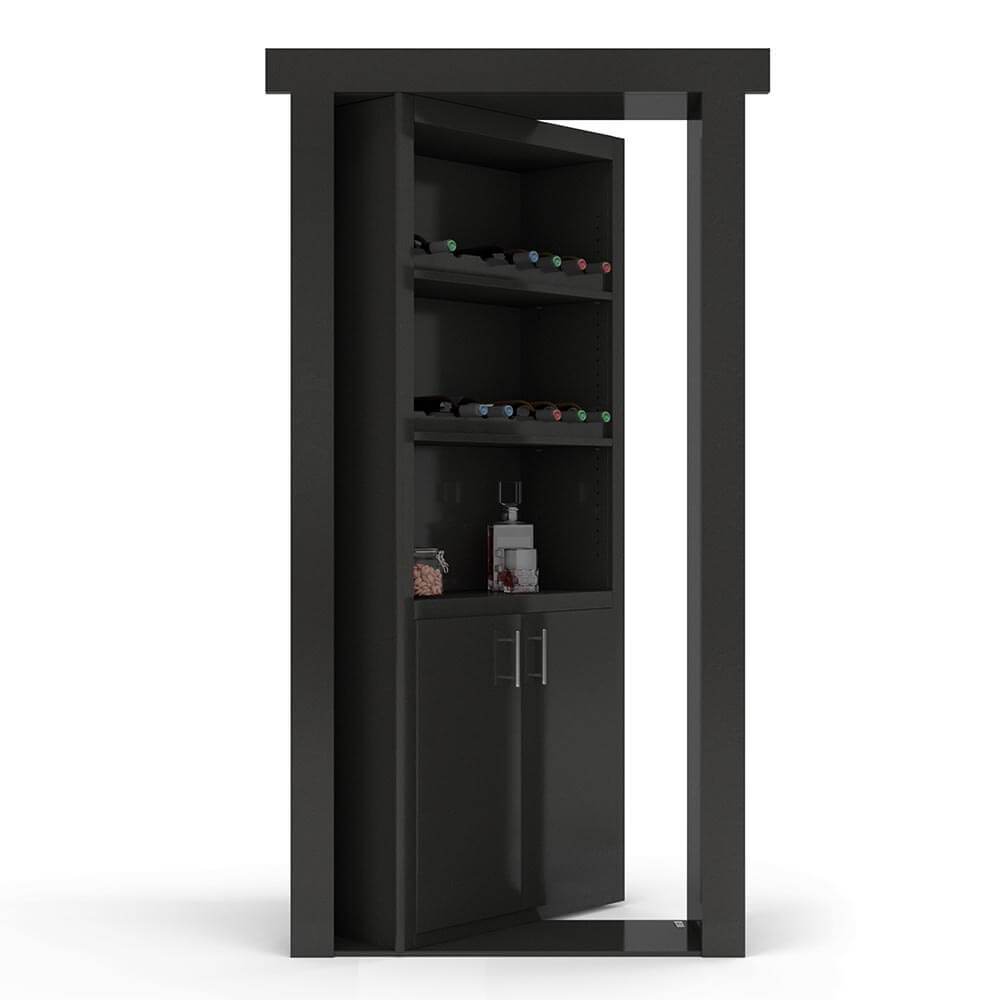

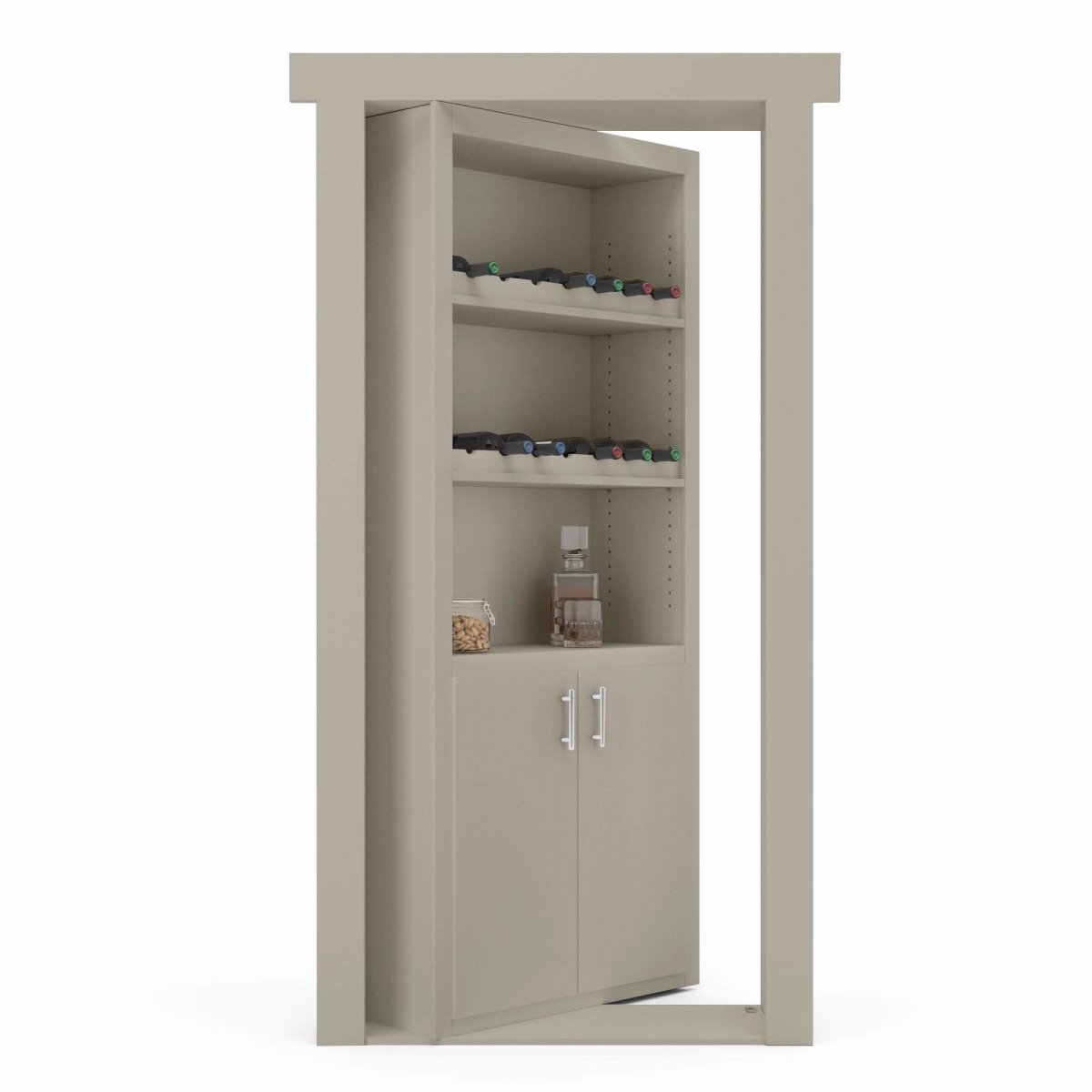

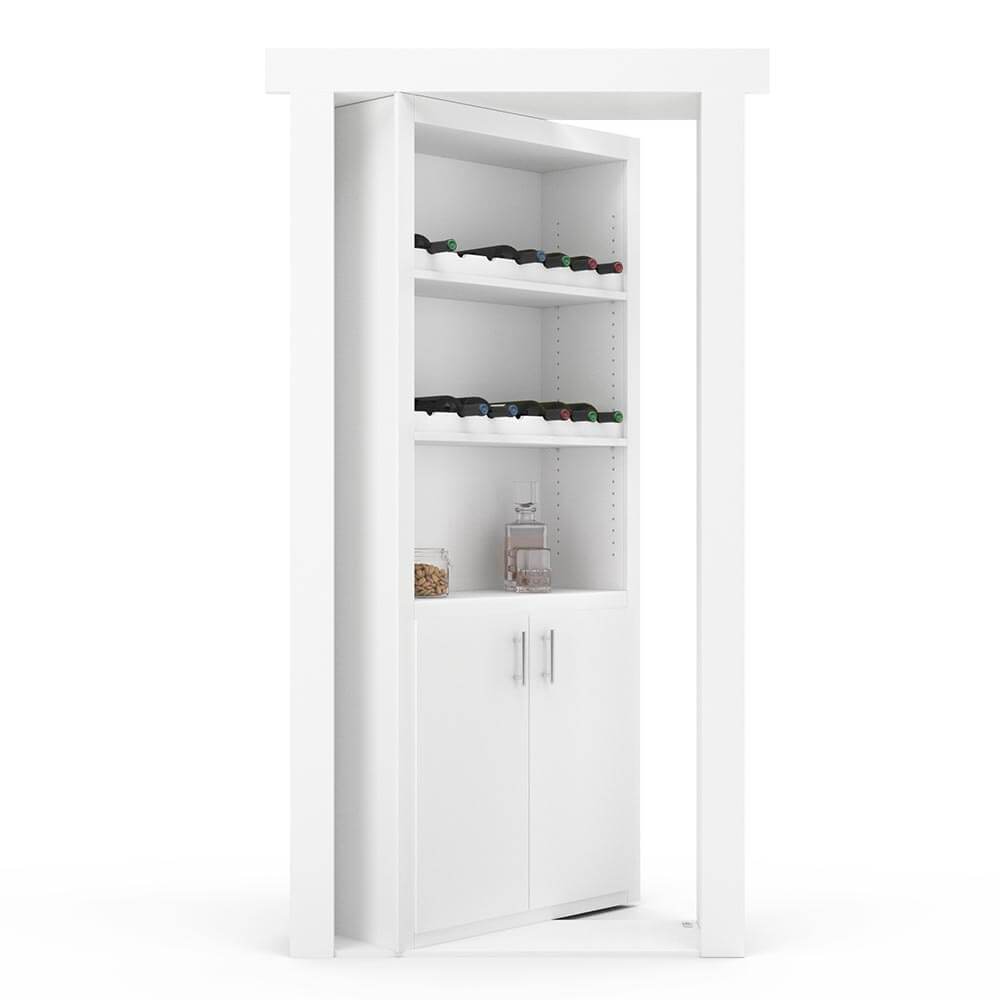

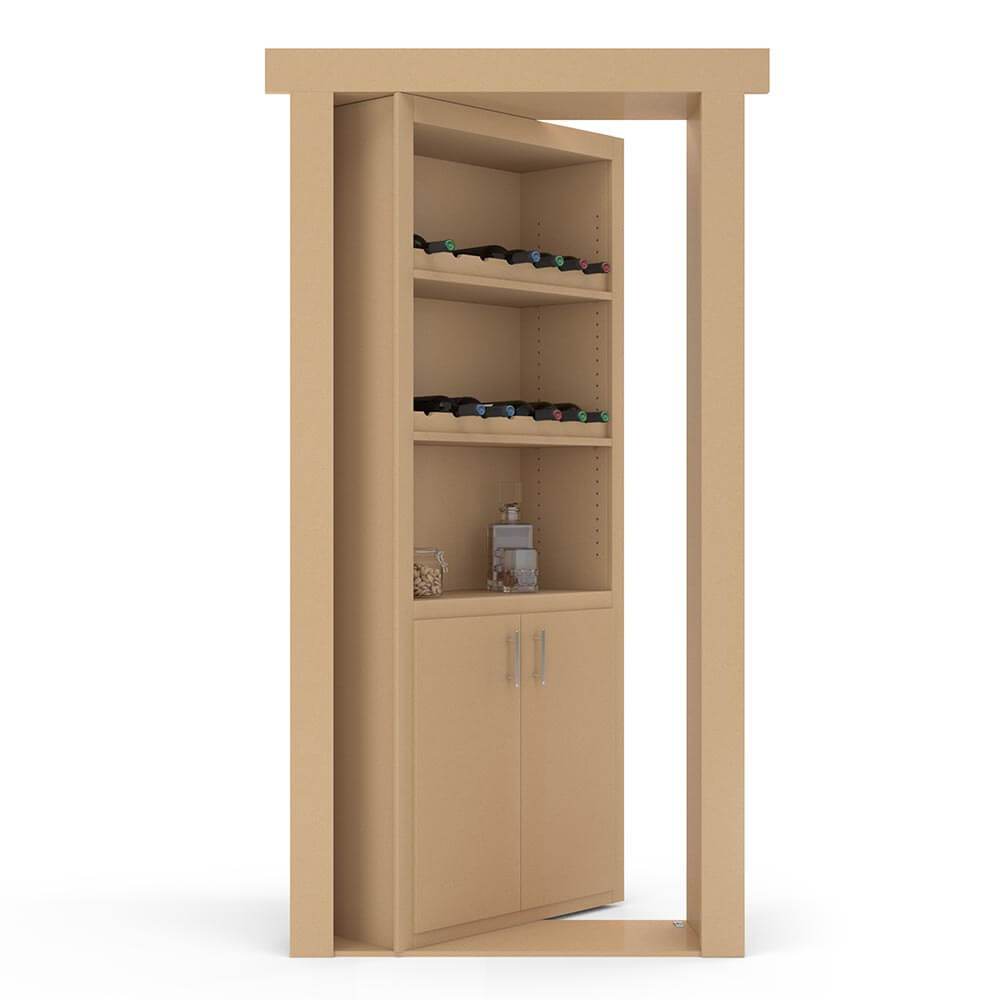

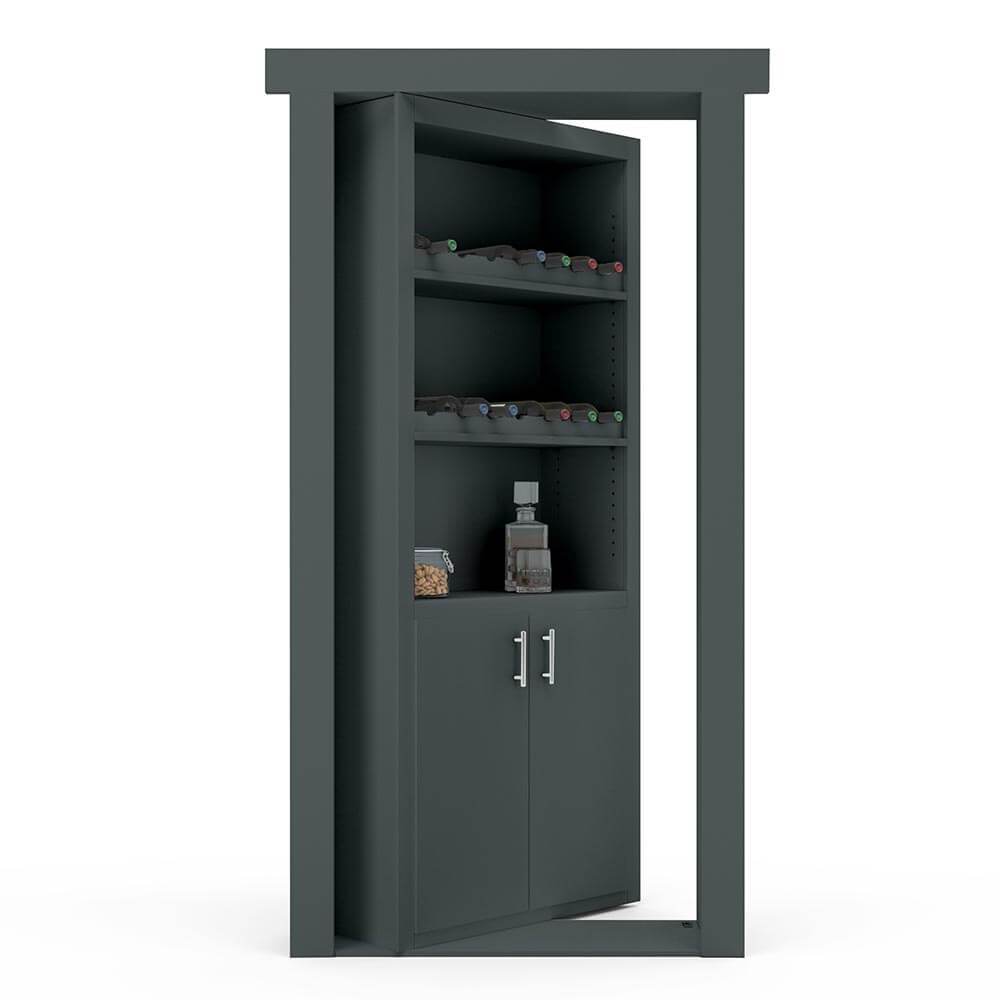

The Wine Rack door system from Murphy Door allows you to utilize any existing doorway and convert it into a beautiful wine storage solution. This is the perfect entryway for a hidden wine cellar!
Constructed with Paint Grade MDF, our flush mount Wine Rack Door arrives pre-assembled and installs like a regular door!
INCLUDES
- 2 Adjustable wine rack shelves, each holds 5-7 bottles depending on door width
- 1 Adjustable standard shelf
- 1 Standard fixed shelf
- 2 Slab cabinet doors (2) stainless steel pulls
All of our flush mount hidden doors will lose pass through space and protrude into the room behind.
IN-SWING DOORS
In-swing doors lose less pass through space, but require wall clearance to fully open.
| Door Depth |
Pass Through |
Wall Clearance |
Protrusion* |
6-1/2"
8-1/4"
10"
12" |
- 6"
- 6"
- 6"
- 6" |
NA
1-1/2"
3-1/2"
5-1/2" |
2"
3-3/4"
5-1/2"
7-1/2" |
*Door protrusion is based on a 4-9/16" door jamb.
OUT-SWING DOORS
Out-swing doors lose more pass through space, but will not require wall clearance to fully open.
| Door Depth |
Pass Through |
Protrusion* |
5-1/4"
8-1/4"
10"
12" |
- 8-1/4"
- 11-1/4"
- 13"
- 15" |
3/4"
3-3/4"
5-1/2"
7-1/2" |
*Door protrusion is based on a 4-9/16" door jamb.
