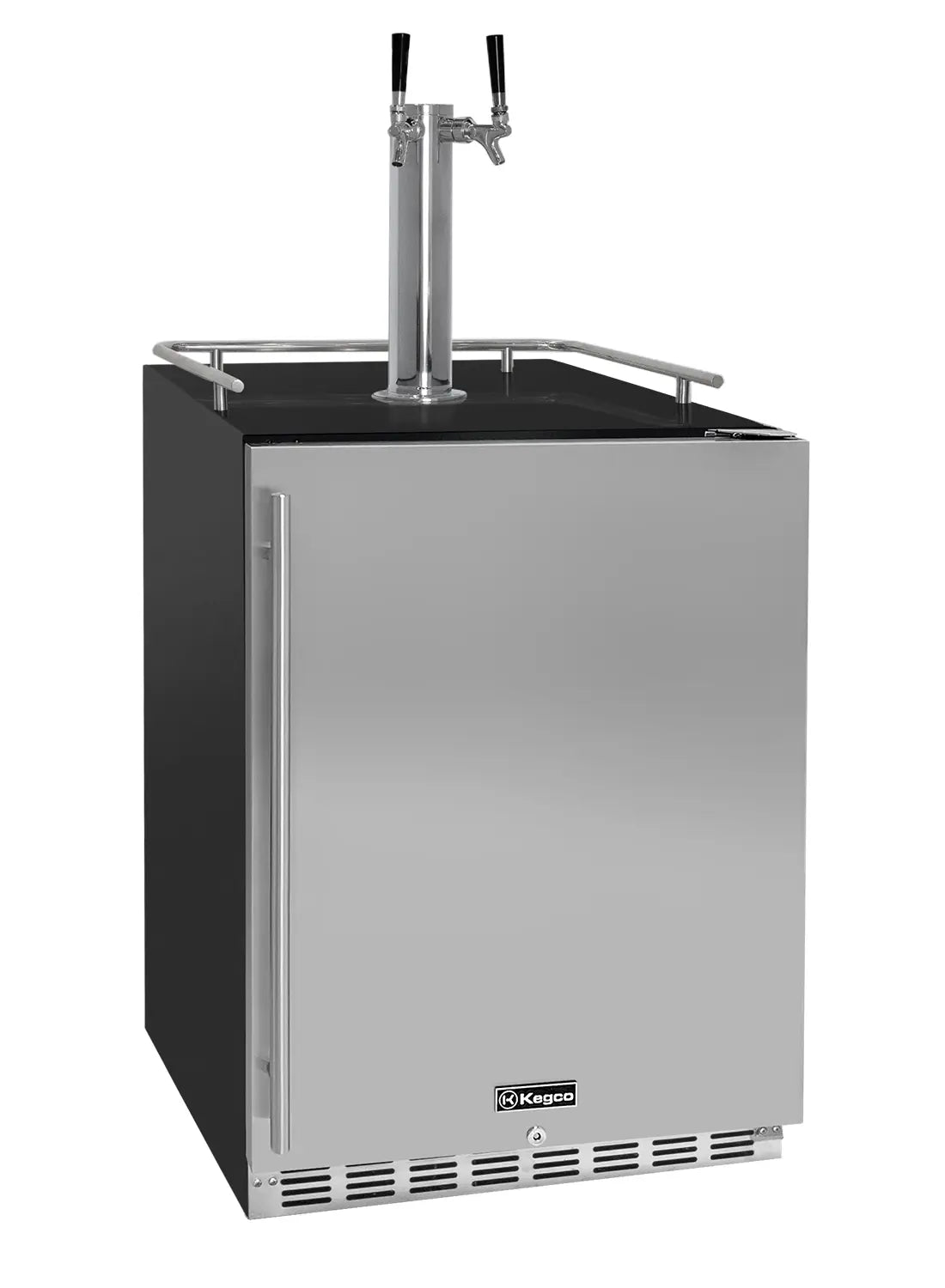

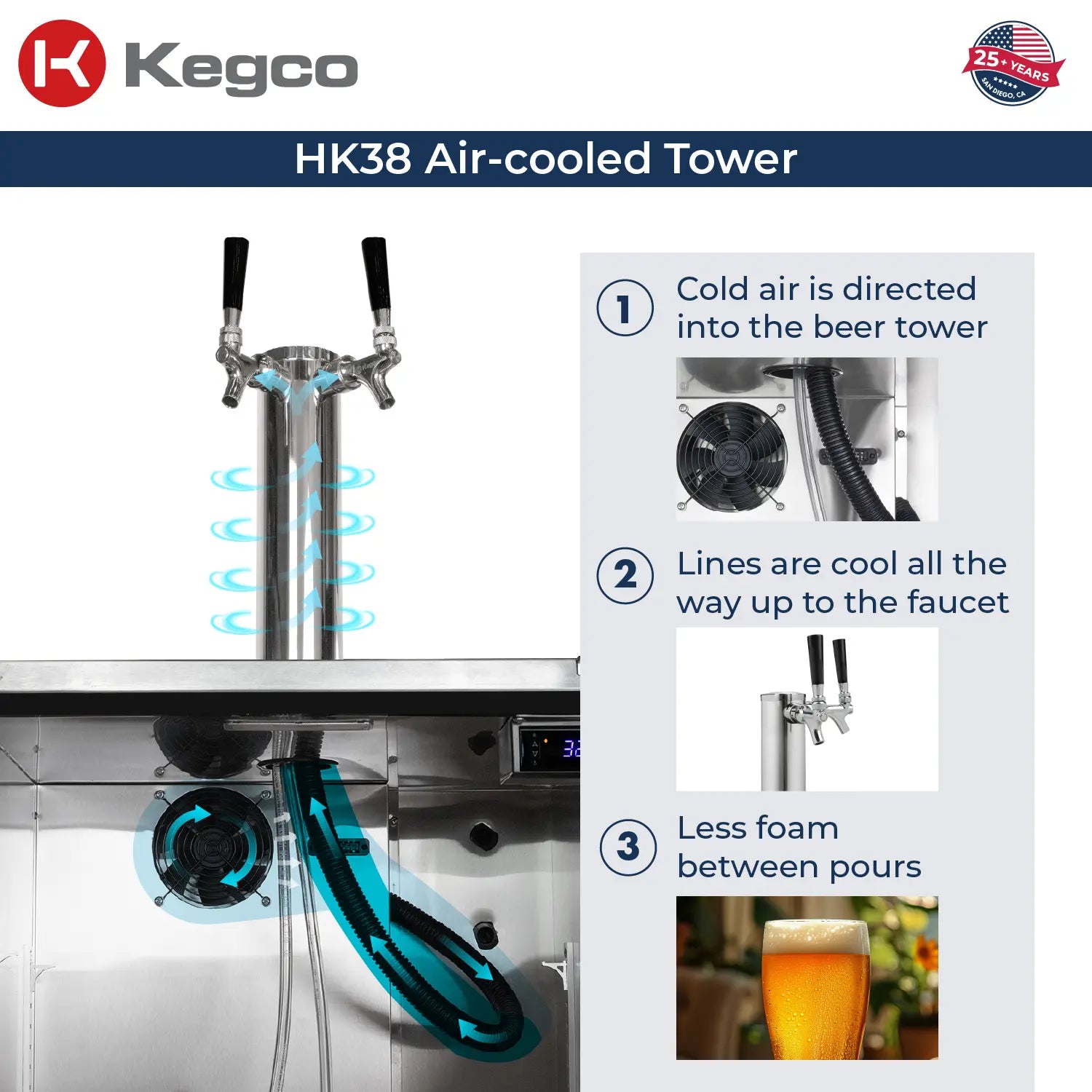

This undercounter kegerator combines commercial-grade performance with a sleek, built-in design that integrates seamlessly into any kitchen or home bar. Outfitted with X-CLUSIVE premium dispense components, it includes 100% stainless steel beer contact, a premium double gauge regulator, and a corrosion-resistant electric red CO₂ tank for optimal beverage quality and durability. Its forced air refrigeration system ensures consistent cooling throughout the cabinet and beer tower, so every pour is served perfectly chilled.
With a powerful 3200 BTU compressor—the most robust in its class—this kegerator offers rapid temperature recovery and outstanding cooling performance. The wide temperature range makes it highly versatile, capable of dispensing everything from crisp, cold beer to wine at its ideal serving temperature. Whether you're entertaining guests or upgrading your bar setup, this kegerator delivers professional-level results at home.
Instruction Manual
Digital Controller Manual
Parts Diagram
Dispense Kit Assembly Manual
Pressurized Cleaning Kit Manual
Material Safety Data Sheet
Custom Front Blueprint
Custom Side Blueprint
Installation Guide
Spec Sheet

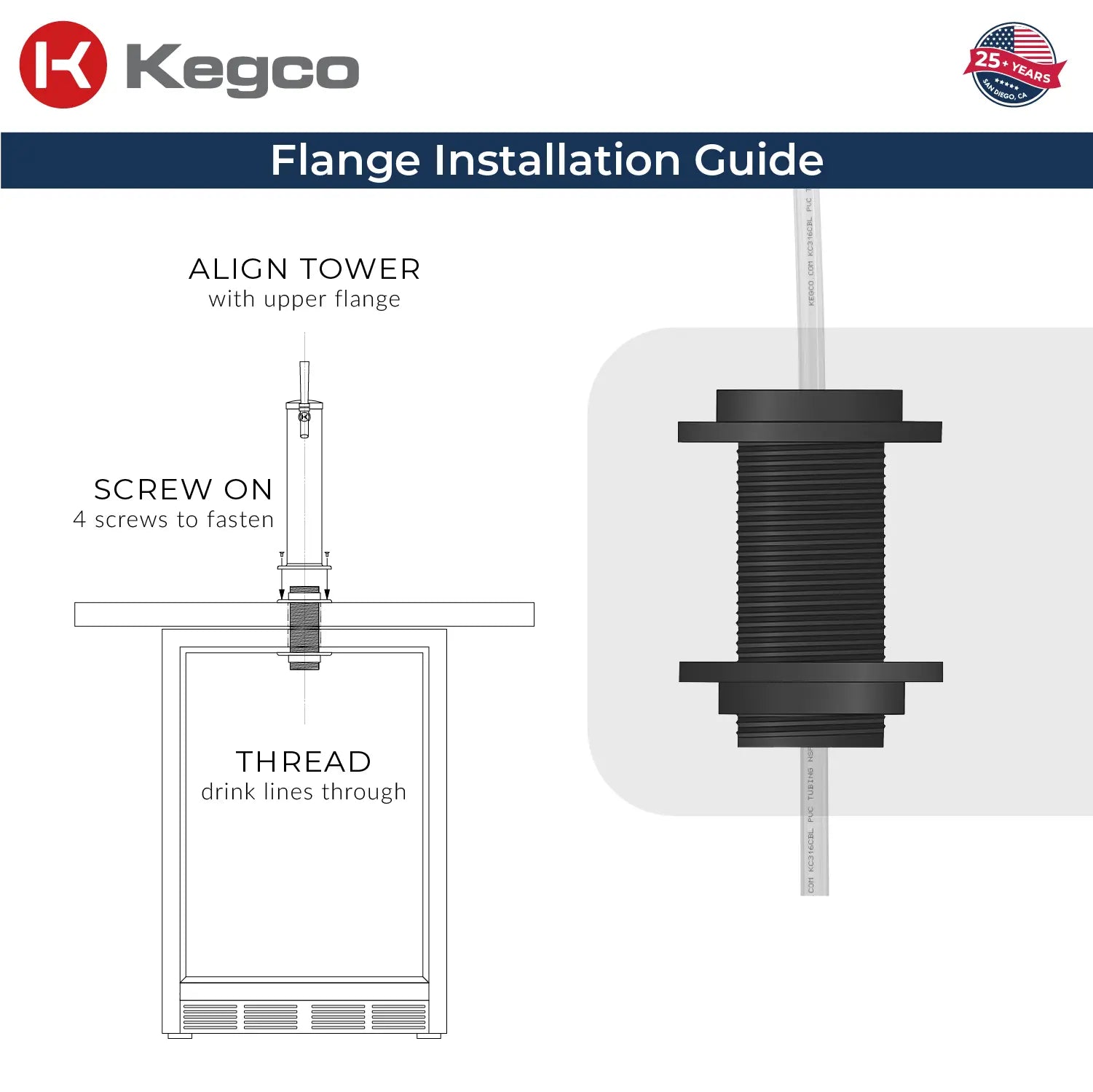

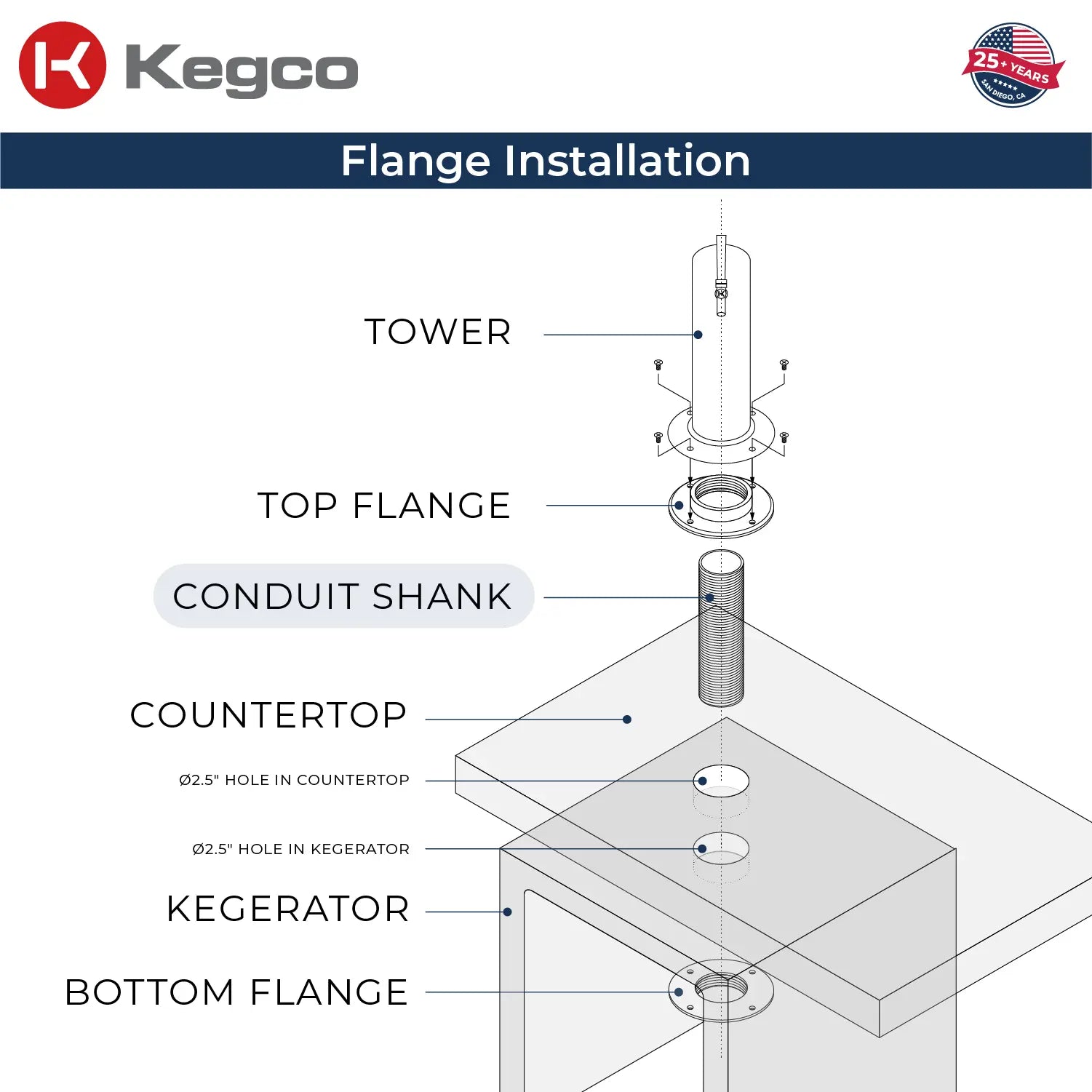

Flange Installation
Features
-

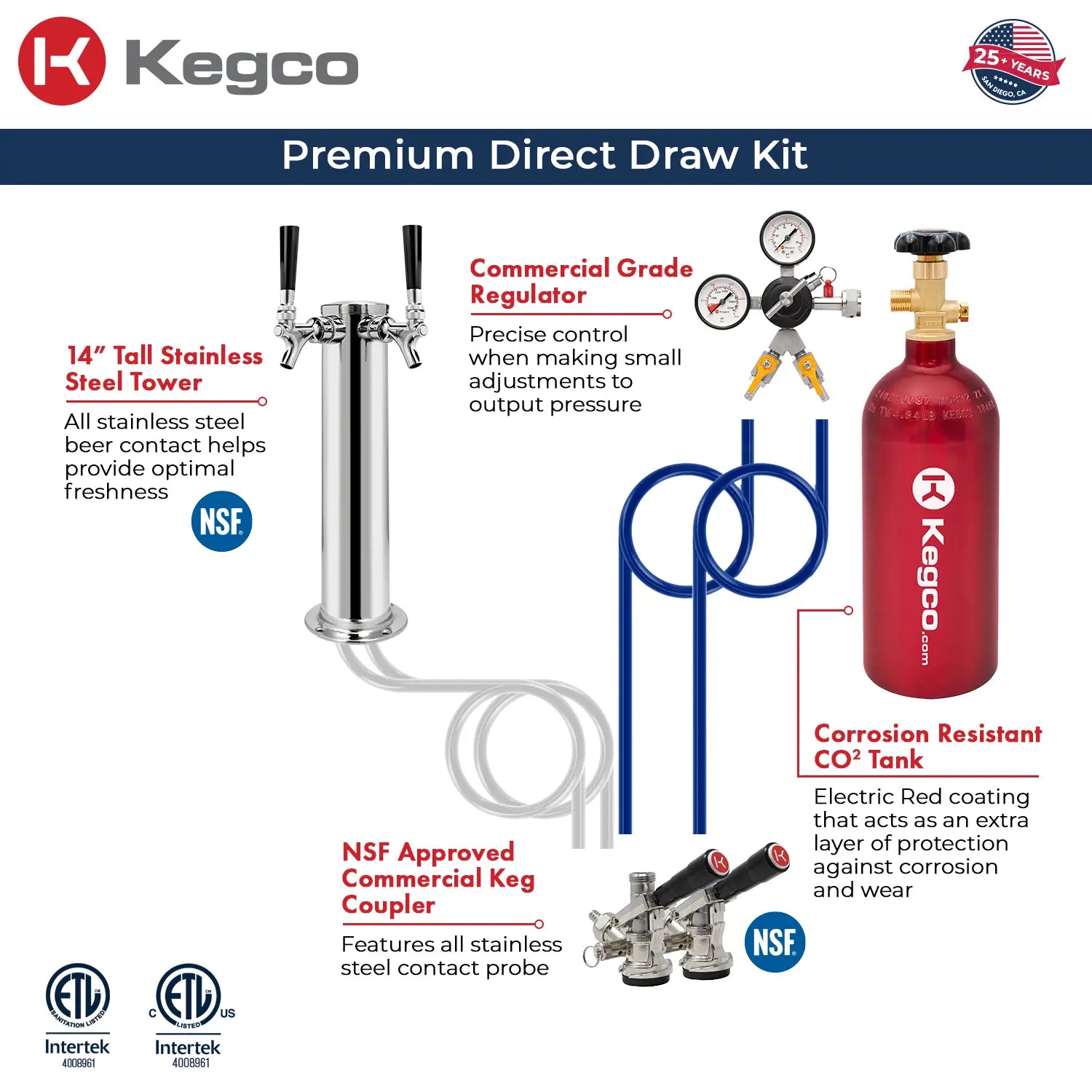

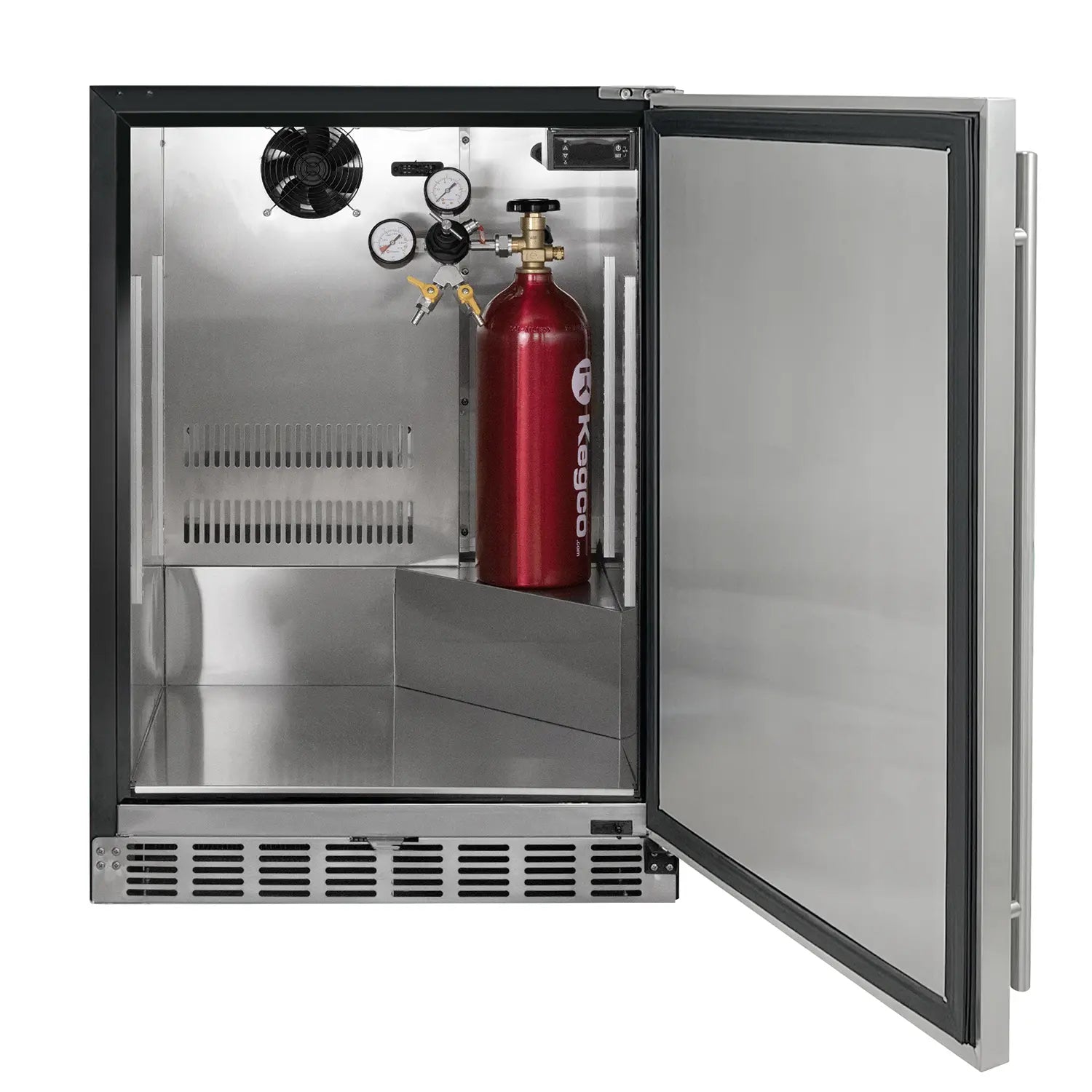

Includes a brand new 5 lb. Aluminum CO2 Tank with Electric Red Epoxy Finish
This tank is produced from high strength aluminum alloy 6061-T6, a highly corrosion-resistant material. It features an eye-catching glossy powder coated epoxy finish in Electric Red that acts as an extra layer of protection against corrosion and wear. The service pressure is up to 1800 PSI/124 BAR with a test pressure of 3000 PSI/207 BAR. These cylinders are stamped with the required U.S. Department of Transportation and Transport Canada Markings. The 320 Valves are CGA approved, and have a male thread for Co2 Regulators. An average fill is good for 5-6 kegs depending upon your fill. -
Includes Premium Double Gauge CO2 Regulator with Air Splitter
This two product regulator works with any CO2 tank with a CGA-320 valve. The top gauge measures PSI, indicating how much CO2 pressure is inside of the kegs. The side gauge measures the remaining volume of CO2 in the tank, so you'll know when it's about time to get the tank filled. This regulator has an air splitter with two shut-off valves to deliver CO2 to one or two kegs at the same pressure, and features a large hand control that makes it easy to adjust the pressure inside of the keg. -
Includes Two 5 Foot Lengths of 5/16 Inch I.D. Blue Air Line Assembly with 4 Plastic Snap Clamps
This standard length 5 foot 5/16" I.D. blue air/CO2 tubing is made of thermoplastic vinyl hose (Super Vinyl). This tubing will not rot, swell, or dry out, and is unaffected by normal cleaning compounds. The air line assemblies come with two plastic snap clamps with a reusable clamp design. -

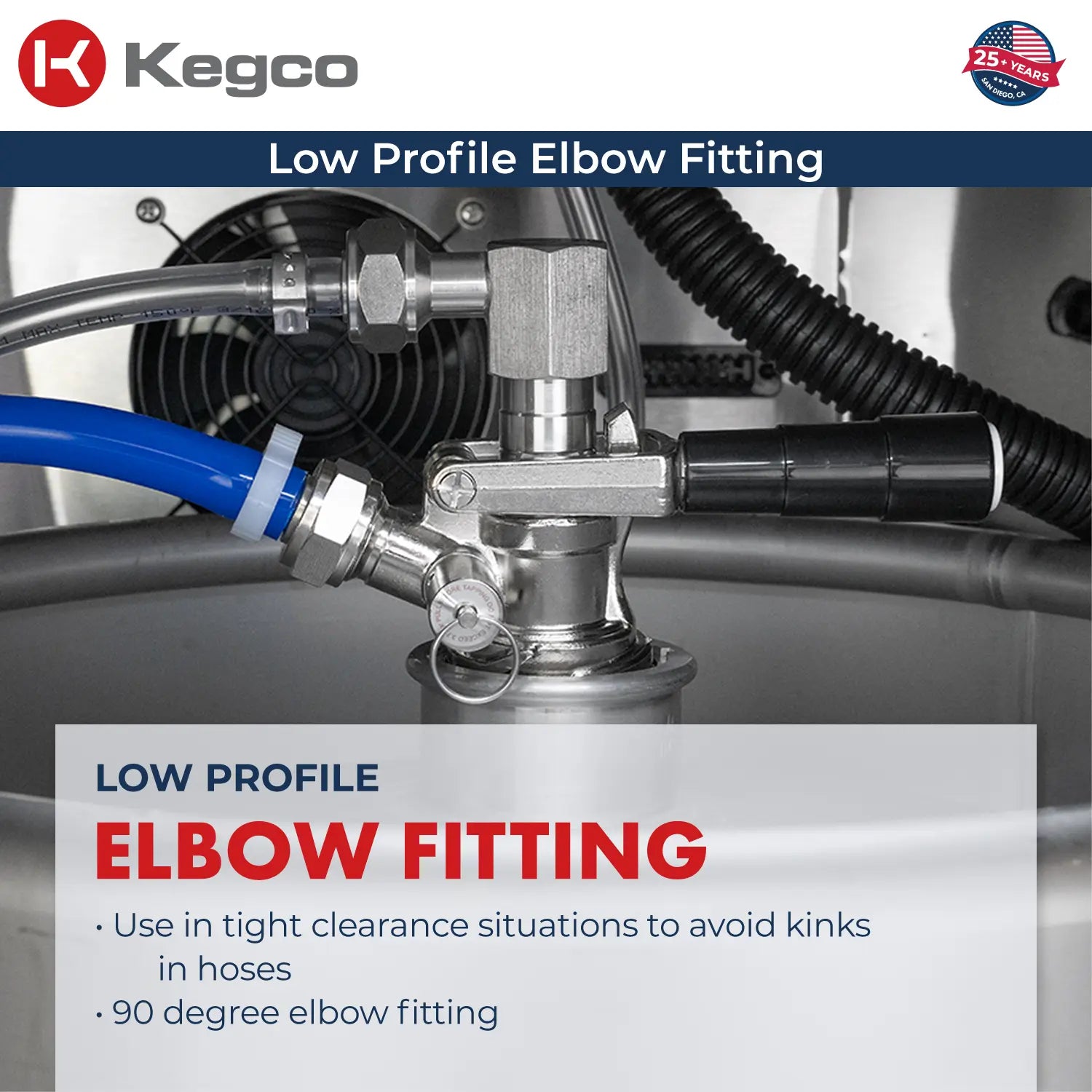

Includes two D system lever handle keg couplers that can tap all domestic kegs
These commercial grade lever handle keg couplers work with all American "D" system Sankey kegs. They feature 55-psi pressure relief valves and nickel plated forged brass bodies. To tap a keg, simply pull out and then down on the lever handle. -

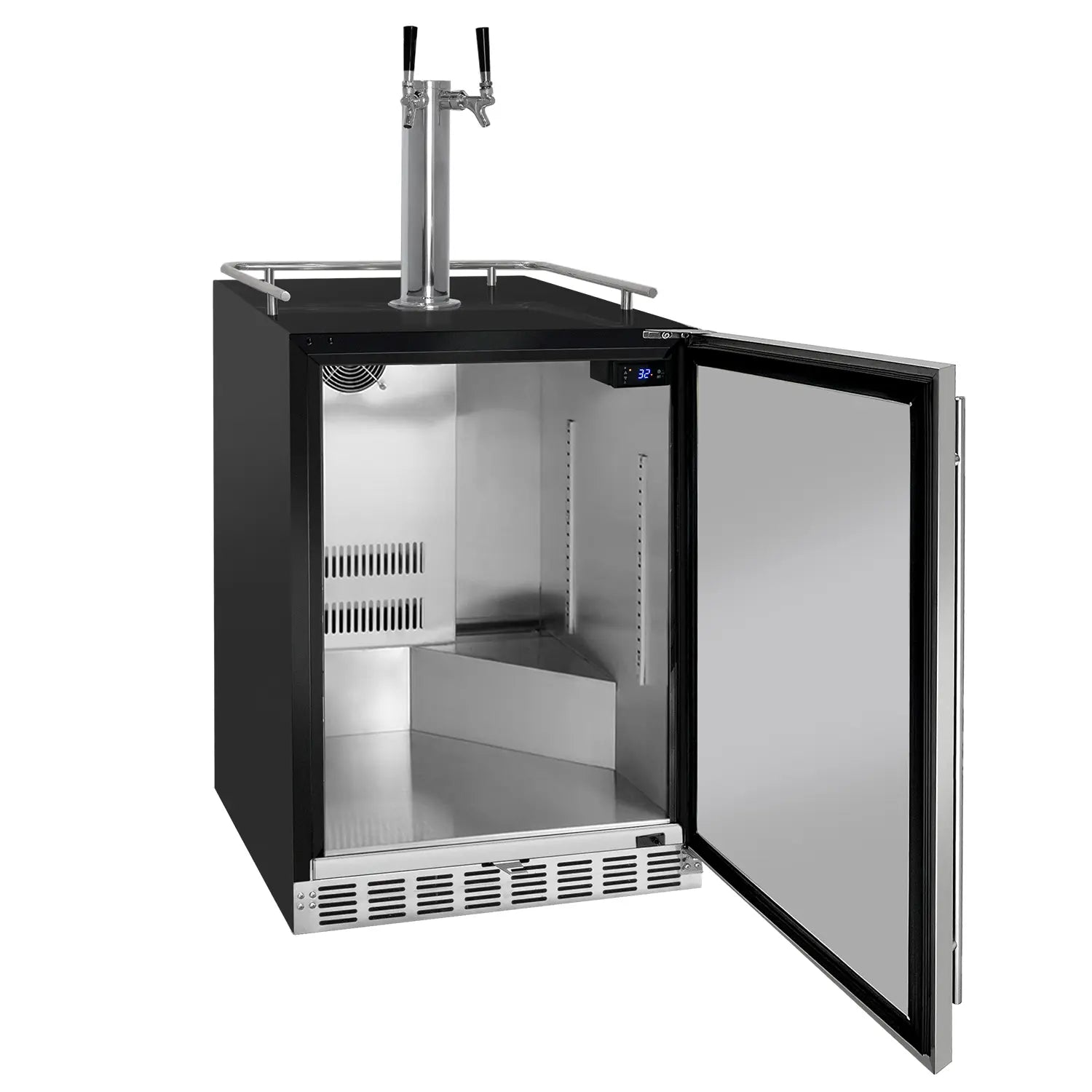

Includes a Kegco Exclusive 14" Tall, 3" Diameter Dual Faucet Polished Stainless Steel Draft Tower
This NSF-approved tower is a 3" diameter dual faucet metal draft tower made of polished stainless steel. It comes complete with two stainless steel faucets and two 5 foot lengths of 3/16 inch I.D. clear beer tubing. The tower is mounted using the gasket and four screws that are included. This Kegco Exclusive tower measures 14" tall, giving you an extra 2" of space over standard draft beer towers. - All dispensing accessories are UL recognized components

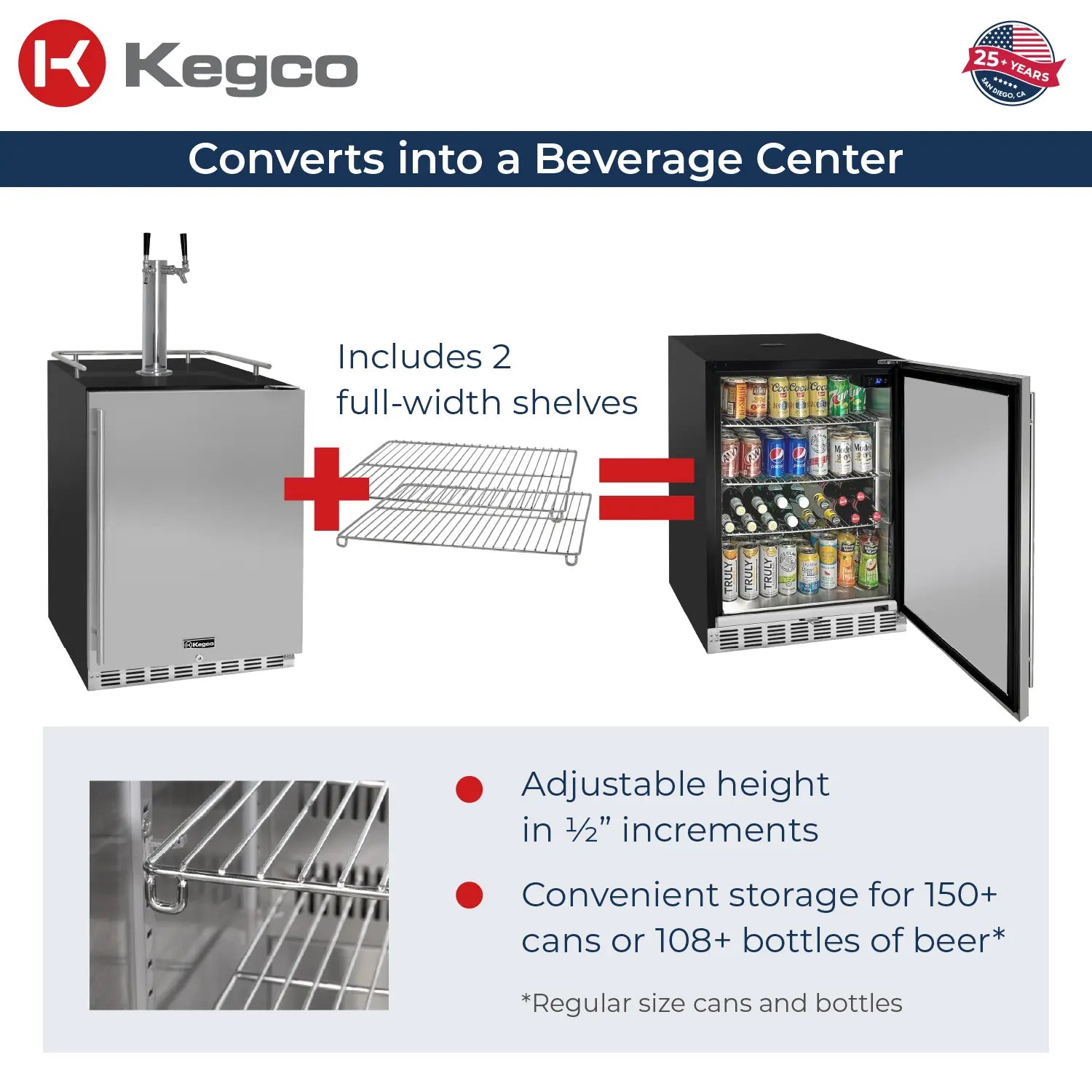

- Converts into a refrigerator using 2 full-width shelves that can be adjusted in 1/2" increments

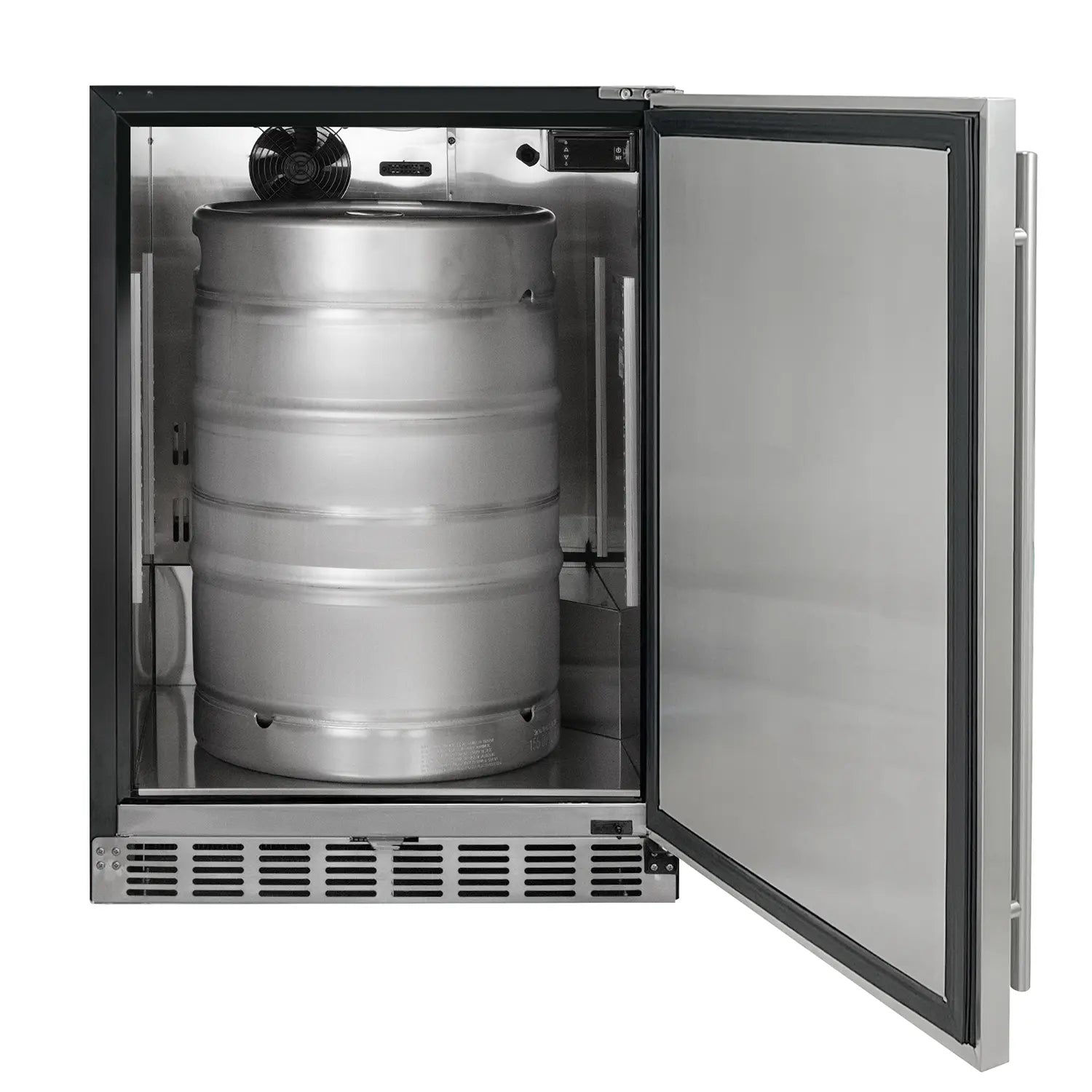

- Large enough to hold most full size kegs, including Coors and Miller. Interior height is a limitation, so kegs that are taller than the standard half barrel (23.25") may not fit with the keg coupler installed. We have run into this issue with certain German kegs along with the M system coupler, but most major brands in D and S System kegs will not be an issue.

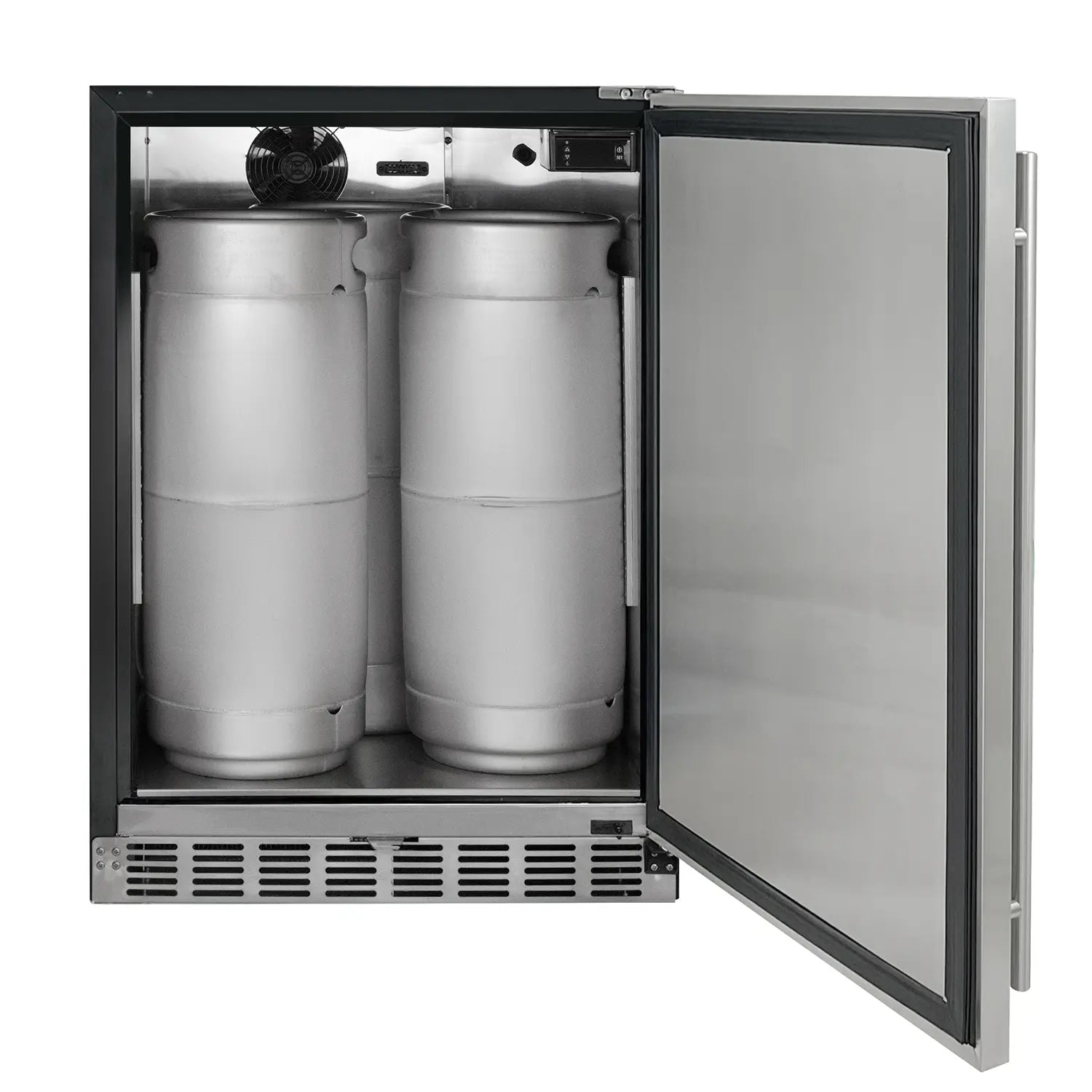

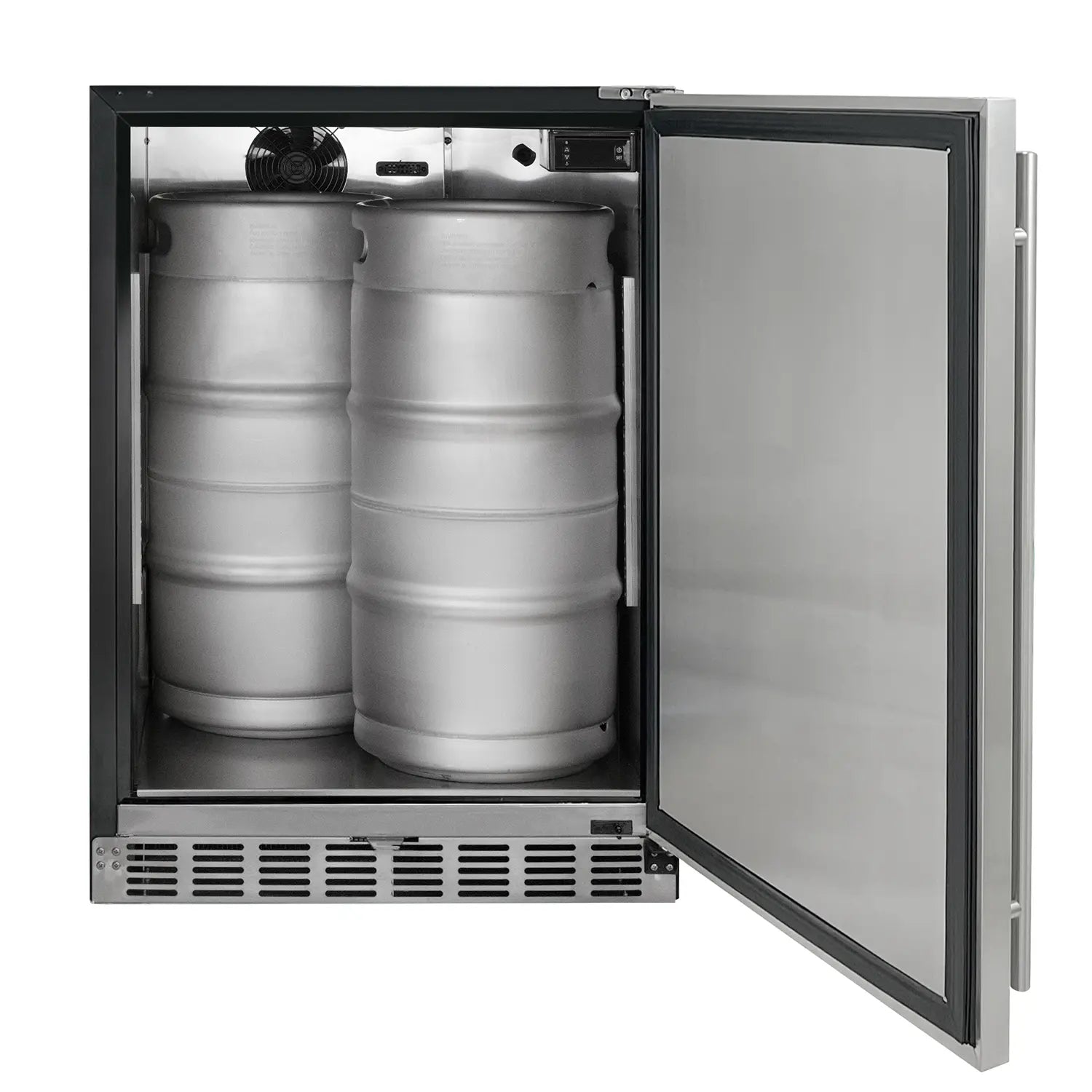

- Holds (1) full-size keg, (2) quarter slim kegs, (3) 5 gallon commercial kegs, or (3) 5 gallon home brew kegs
- PLEASE NOTE: Will not hold 50L European kegs

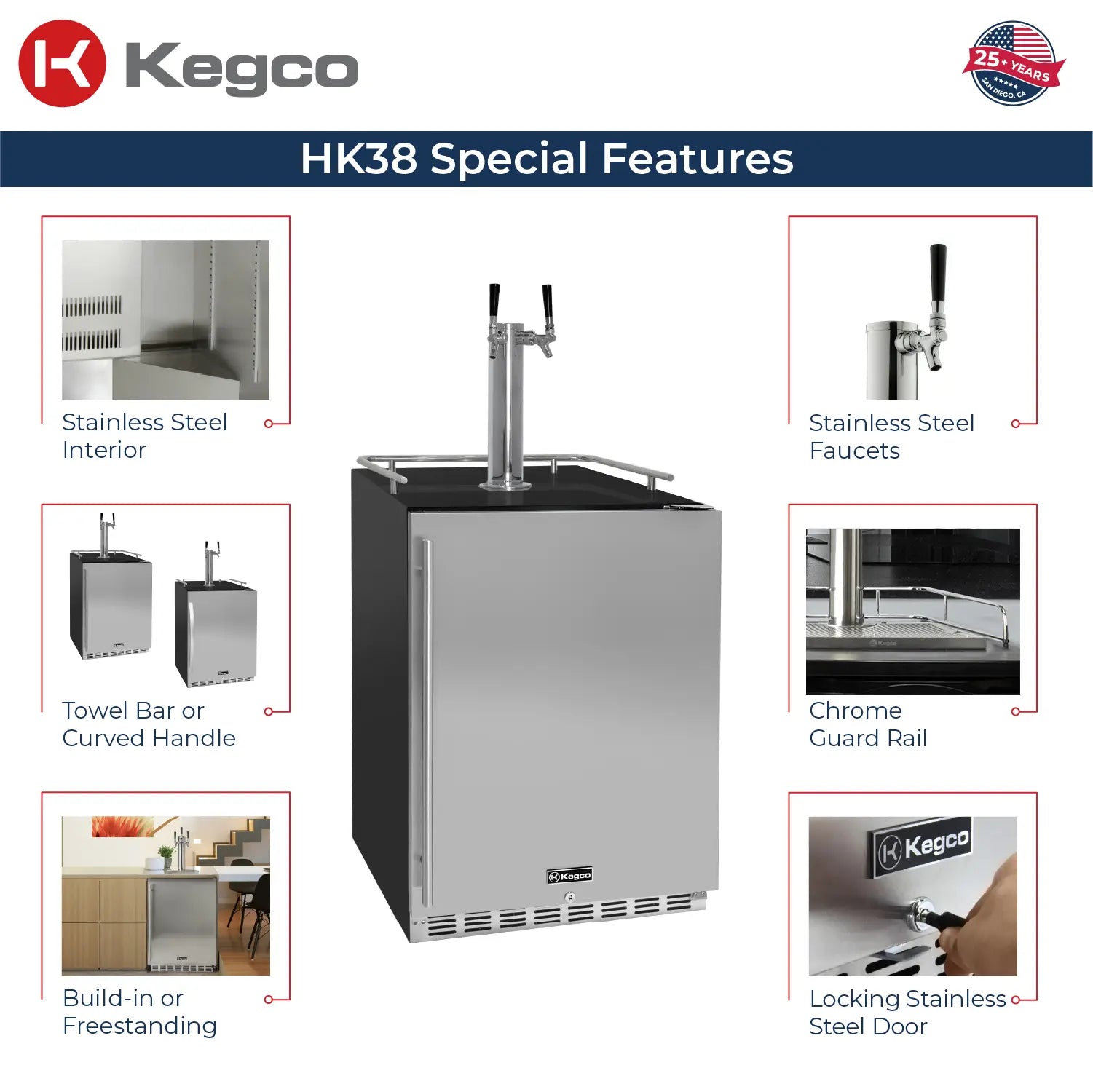

- Sleek black cabinet with stylish stainless steel door

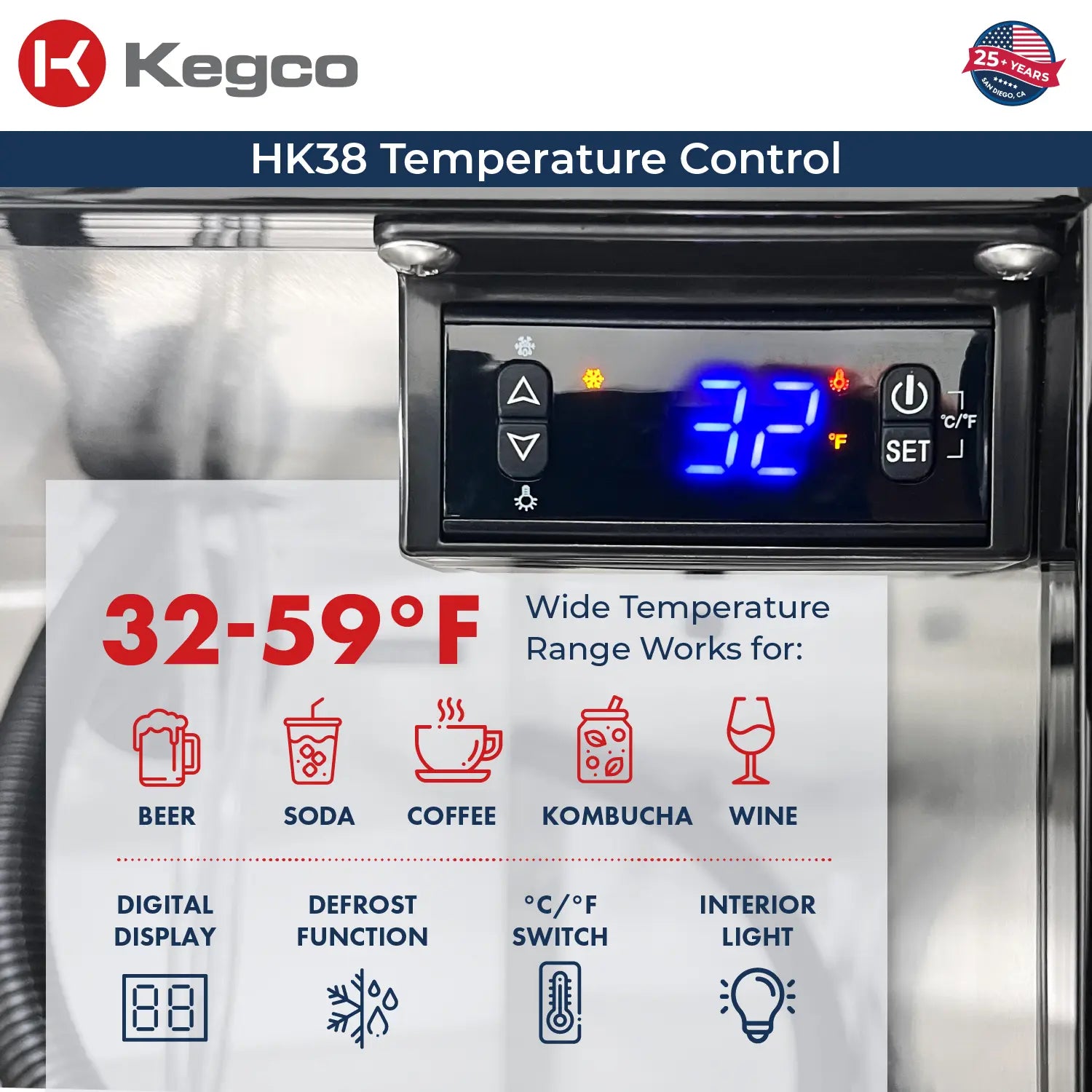

- Digital temperature control keeps temperature between 32-59 degrees Fahrenheit
- Maximum Ambient Temperature: 100 degrees Fahrenheit
- Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the ambient temperature.
- A perfect option for dispensing beer, soda, kombucha, wine or cold brew coffee
- Stainless steel guard rail helps prevent mugs and glasses from sliding off
- Stainless steel interior is more durable than the plastic liner found in most kegerators
- Plugs into standard home outlet
Specifications

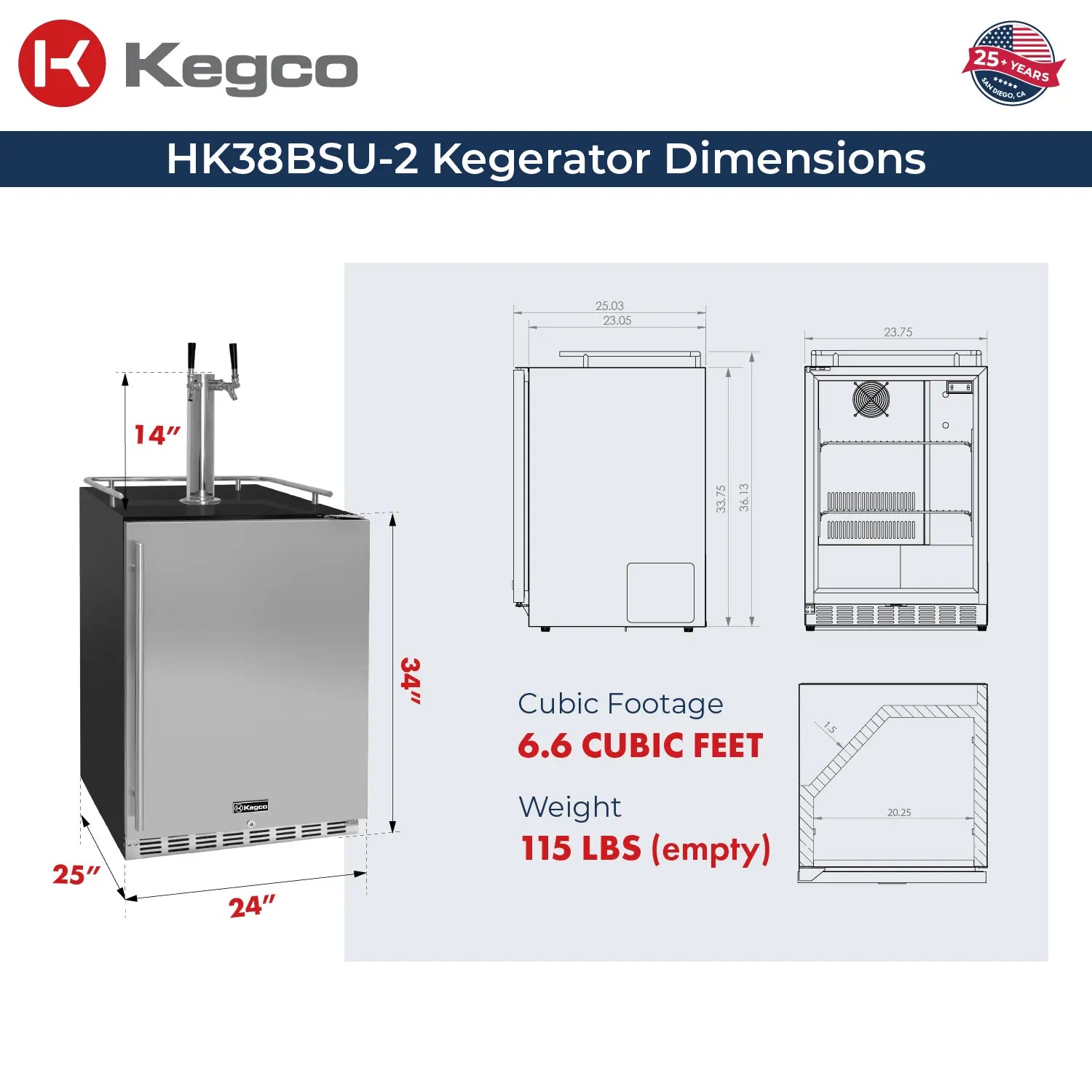

Dimensions
- Height: 34-1/8"
- Width: 24"
- Depth: 25" (without handle)
Weight
- Unit Weight: 96.8 lbs.
- Shipping Weight: 150 lbs.
Exterior
- Cabinet: Black
- Drip Tray: No
- Guard Rail: Yes
- Casters: Yes

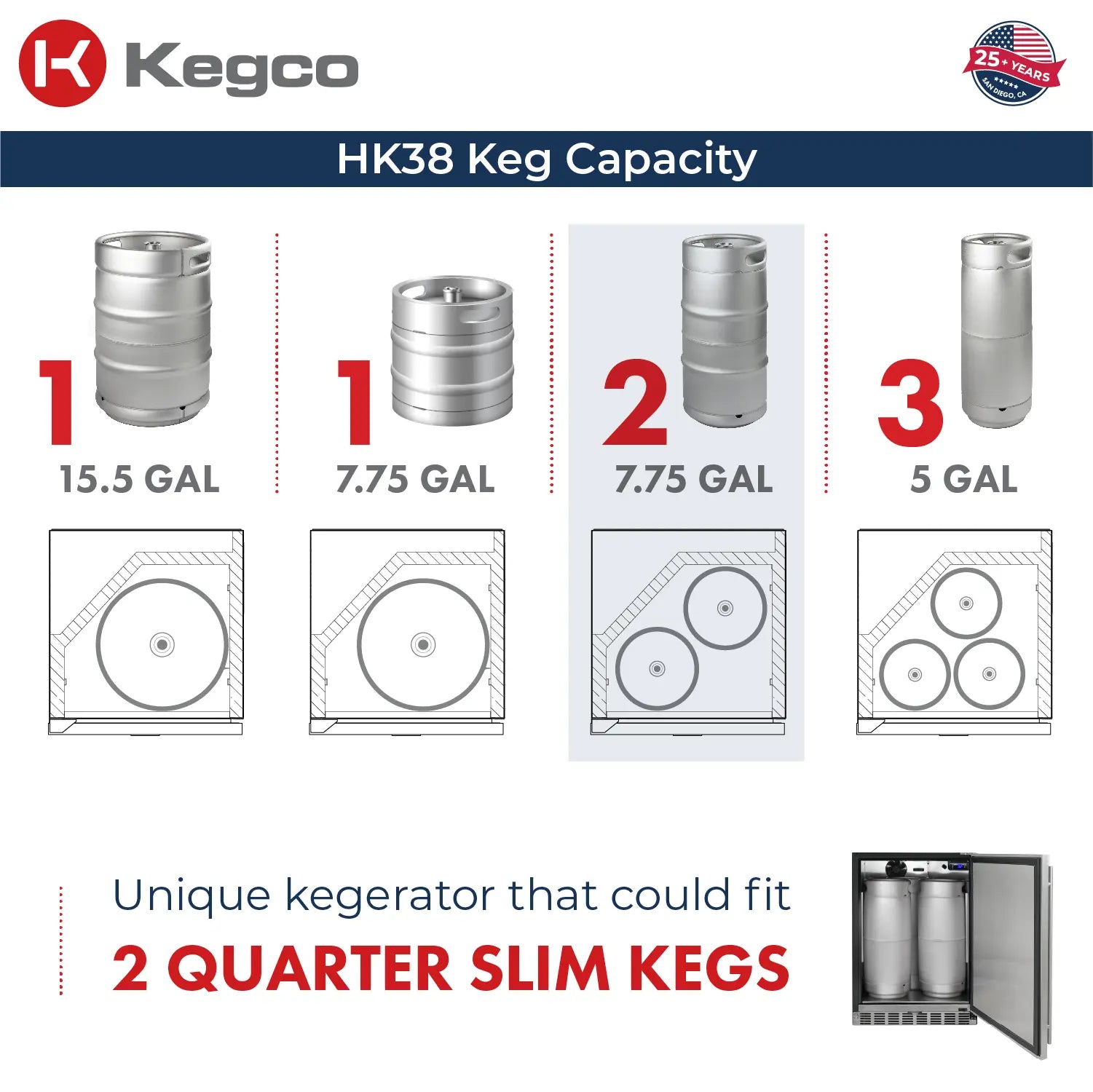

Keg Storage Capacities
- Full Size / 1/2-Barrel: Holds 1
- Pony Size / 1/4-Barrel: Holds 1
- 1/4-Barrel Slim: Holds 2
- 1/6-Barrel: Holds 3
- 5 gal. Ball/Pin Lock Keg: Holds 3
- 5-Liter / Mini Keg: Holds 3
Key Features
- Built-in Capable: Yes
- Keg Coupler: Yes
- Security Lock: Yes
- Regulator: Yes
- CO₂ Tank: Yes
- Cleaning Kit: Optional Add-On
- Outdoor Use: No
- Commercial Use: Yes
Door
- Color / Material: Stainless Steel
- Number of Doors: 1
- Door Handle: Towel/Curved
- Field Reversible: No
- Accepts Custom Overlay Panel: No
Draft Beer Tower
- Number of Faucets: 2
- Material: Stainless Steel
- Height: 14"
- Diameter: 3"
Cooling System
- Type: Compressor
- Defrost System: Manual
- Front Ventilation: Yes
Controls
- Adjustable Thermostat: Yes
- Digital: Yes
Electrical
- Electrical Requirements: 115V / 60Hz
- Running Amps: 1.7 A
