Specifically engineered for serving iced coffee on tap, this outdoor Javarator is designed to meet the unique demands of coffee keg dispensing. Its specialized dispense system uses stainless steel and food-grade plastic components, ensuring cleanliness and flavor purity with every pour. Built to be installed undercounter, it blends seamlessly into backyard BBQ islands or outdoor kitchens, providing both style and function.

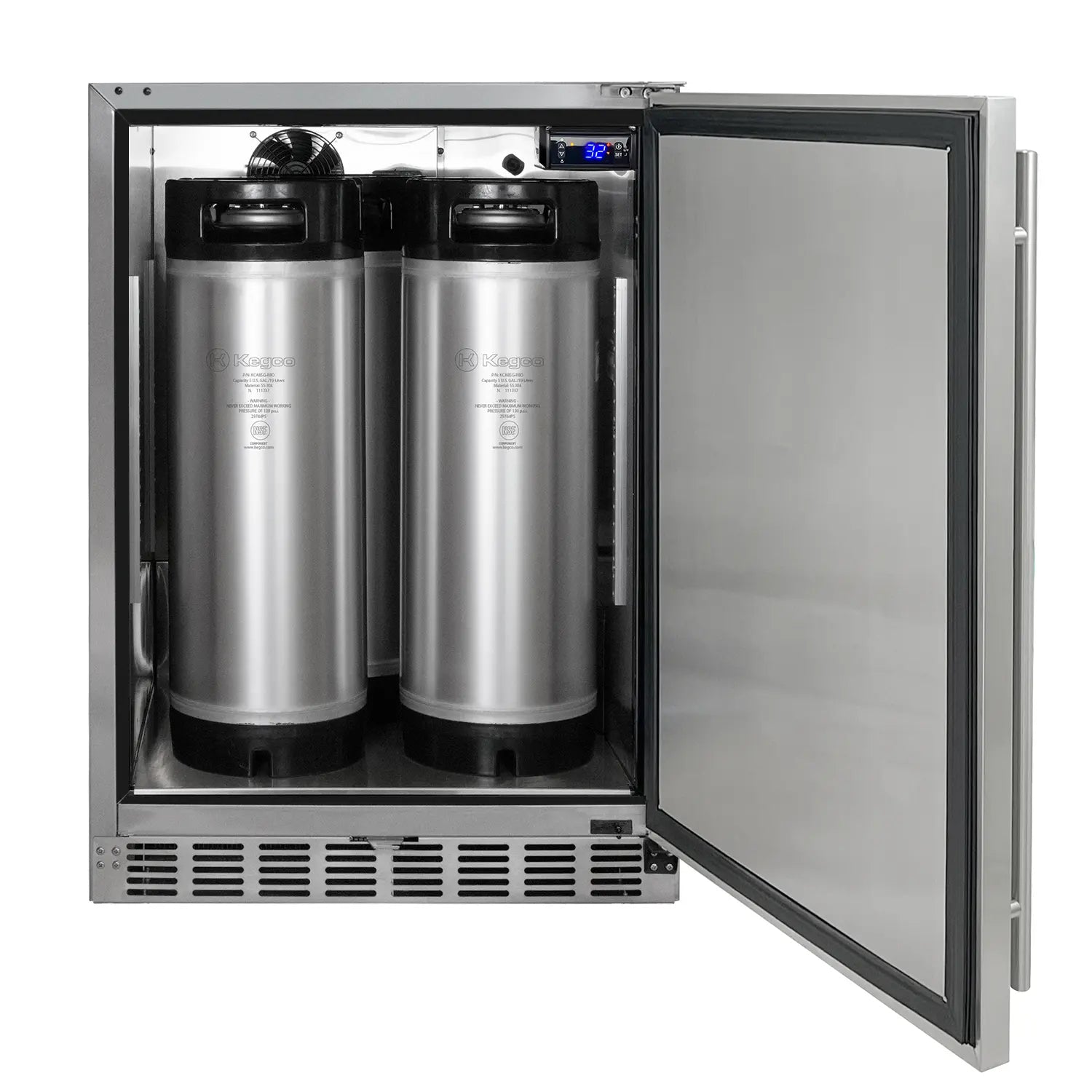

Inside, the spacious cabinet can accommodate a full-size keg, two quarter slim kegs, or up to three 5-gallon kegs, offering flexible storage configurations for your beverage needs. The unit utilizes eco-friendly R600a refrigerant and features a durable construction that's both ETL and ETL Sanitation Listed, as well as NSF compliant—making it ideal for commercial or residential outdoor use.

Instruction Manual

Digital Controller Manual

Parts Diagram

Dispense System Assembly Instructions

Pressurized Cleaning Kit Manual

Material Data Safety Sheet

Custom Front Blueprint

Custom Side Blueprint

Installation Guide

Spec Sheet

Features

• Includes a brand new 15 cu. ft. Aluminum Nitrogen Tank with Sleek Black Epoxy Finish
  This tank is produced from high strength, corrosion-resistant aluminum alloy 6061-T6. The eye-catching sleek black epoxy finish acts as an extra layer of protection against corrosion and wear, and the aluminum construction is lighter weight than steel tanks and does not rust. The service pressure is up to 1800 PSI/124 BAR with a test pressure of 3000 PSI/207 BAR. These cylinders are stamped with required U.S. Department of Transportation and Transport Canada Markings. The 580 Valves are CGA approved, and have a female thread for Nitrogen Regulators. (5.5" diameter, 18.25" Height).
• Includes a Commercial Grade Dual Gauge Nitrogen Regulator
  This commercial grade dual gauge regulator is compatible with nitrogen cylinders with CGA 580 valves and features a double gauge design that measures both PSI and the volume of nitrogen gas in the tank. The durable regulator body is constructed of forged brass with all brass connections and components, an integral safety pressure relief valve that releases at 45 PSI, and shut-off valves that allow you to instantly shut off pressure to the kegs. A large pressure adjustment knob makes it easy to adjust the pressure by hand without requiring a screwdriver.
• Includes two 5 feet of 5/16" I.D. Air Line Assembly with 2 Snap Clamps
  Two standard 5 foot lengths of 5/16" I.D. Blue Air/Nitrogen tubing made of thermoplastic vinyl hose (Super Vinyl). This tubing will not rot, swell, or dry out, and is unaffected by normal cleaning compounds. Each air line assembly comes with two plastic snap clamps with a reusable clamp design.
• Includes two sets of Ball Lock Home Brew Keg Couplers
  Each set includes both a gas in and a beer out coupler that work with ball lock Cornelius Pepsi kegs. The gas in features a 1/4" thread for a flare fitting. This connector already has attached the special 1/4" nut that has a 5/16" hose barb attached. The couplers are made of food grade plastic which will not corrode. There is an option to upgrade to all stainless steel ball lock couplers.

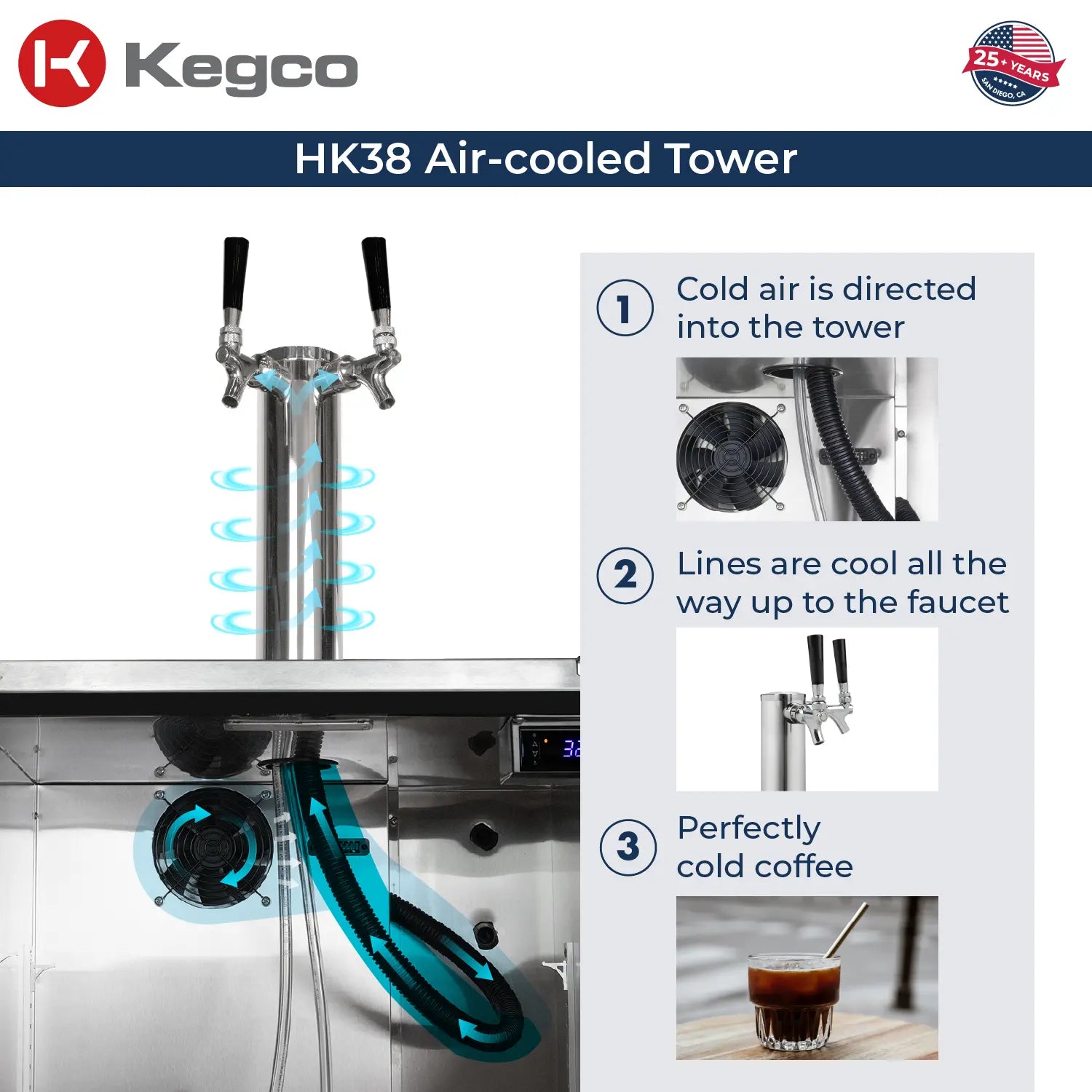

• Includes a Kegco Exclusive 14" tall, 3" diameter Stainless Steel Draft Tower
  The tower is a commercial grade single column, double faucet, 3" diameter stainless steel draft tower with 100% stainless steel contact. The stainless steel contact is necessary for good sanitation. This tower comes complete with stainless steel faucets and two 5 foot lengths of 3/16" I.D. clear tubing. This tower is mounted using the gasket and four screws that are included. The faucets can be upgraded to Perlick faucets, which have less internal surface area to prevent the faucet knobs from sticking. This Kegco Exclusive tower measures 14" tall, giving you an extra 2" of space over standard draft beer towers.
• Keg Storage Capacities:
• All dispensing accessories are UL recognized components
• Converts into a refrigerator using 2 full-width shelves that can be adjusted in 1/2" increments
• Large enough to hold most full size kegs, including Coors and Miller. Interior height is a limitation, so kegs that are taller than the standard half barrel (23.25") may not fit with the keg coupler installed. We have run into this issue with certain German kegs along with the M system coupler, but most major brands in D and S System kegs will not be an issue.

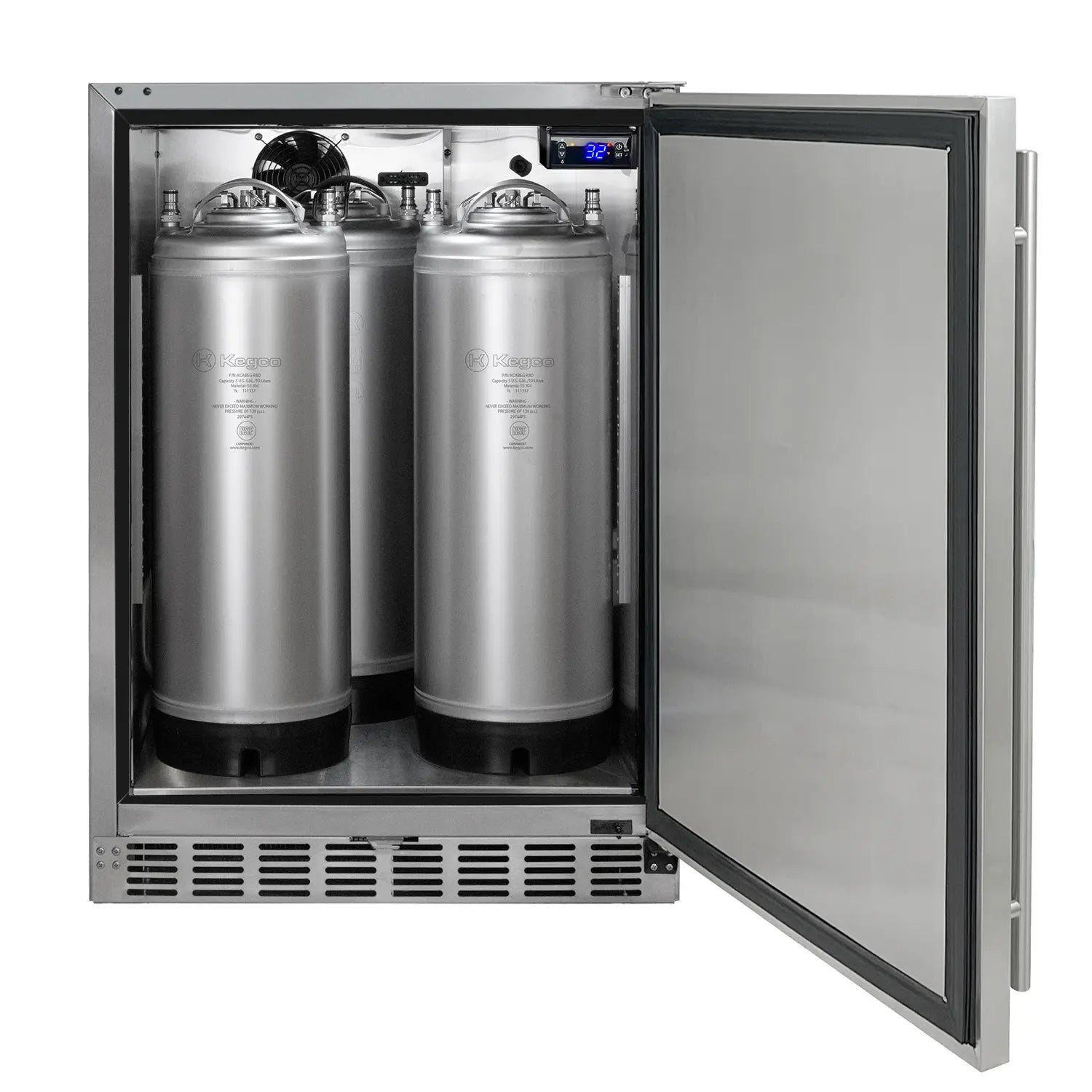

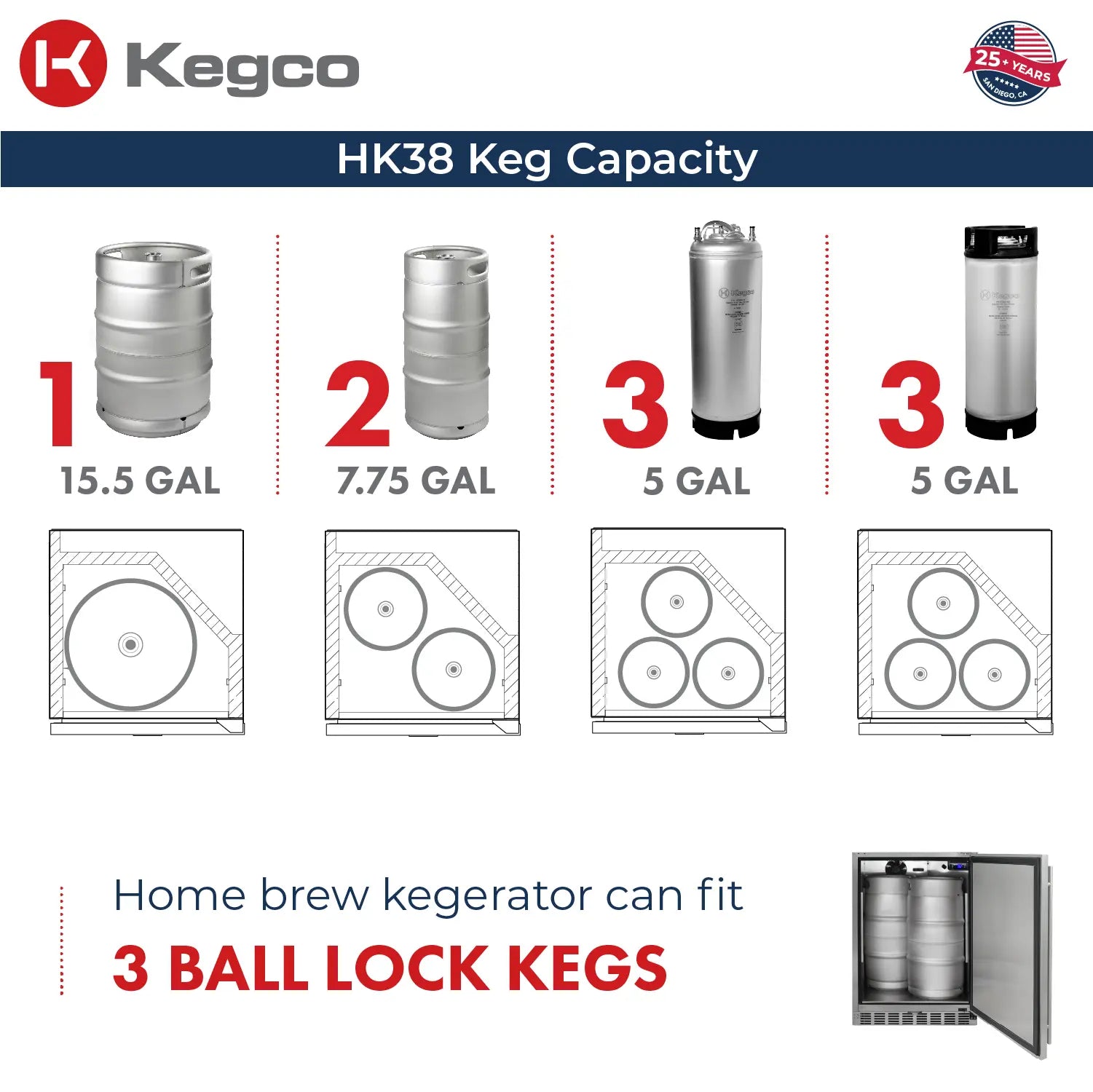

• Holds (1) full-size keg, (2) quarter slim kegs, (3) 5 gallon commercial kegs, or (3) 5 gallon home brew kegs
• PLEASE NOTE: Will not hold 50L European kegs
• Sleek black cabinet with stylish stainless steel door
• Digital temperature control keeps temperature between 32-59 degrees Fahrenheit
• Maximum Ambient Temperature: 100 degrees Fahrenheit
• Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the ambient temperature.
• A perfect option for dispensing beer, soda, kombucha, wine or cold brew coffee
• Stainless steel guard rail helps prevent mugs and glasses from sliding off
• Stainless steel interior is more durable than the plastic liner found in most kegerators
• Plugs into standard home outlet

Specifications

Product Details

• Height: 34-1/8"
• Width: 24"
• Depth: 25" (without handle)

• Built-in Capable: Yes
• Keg Coupler Included: Yes
• Security Lock: Yes
• Regulator Included: Yes
• CO₂ Tank: Nitrogen Tank
• Cleaning Kit: Optional Add-On
• Outdoor Use: Yes
• Commercial Use: Yes

• Full Size / 1/2-Barrel: Holds 1
• Pony Size / 1/4-Barrel: Holds 1
• 1/4-Barrel Slim: Holds 2
• 1/6-Barrel: Holds 3
• 5 gal. Ball/Pin Lock Keg: Holds 3
• 5-Liter / Mini Keg: Holds 3

• Cabinet Material: Stainless Steel
• Drip Tray: No
• Guard Rail: Yes
• Casters: Yes

• Number of Faucets: 2
• Material: Stainless Steel
• Height: 14"
• Diameter: 3"

• Color / Material: Stainless Steel
• Number of Doors: 1
• Door Handle: Towel / Curved
• Field Reversible: Yes
• Accepts Custom Overlay Panel: No

• Type: Compressor
• Defrost System: Manual
• Front Ventilation: Yes

• Adjustable Thermostat: Yes
• Digital Controls: Yes

• Electrical Requirements: 115V / 60Hz
• Running Amps: 1.7 A
