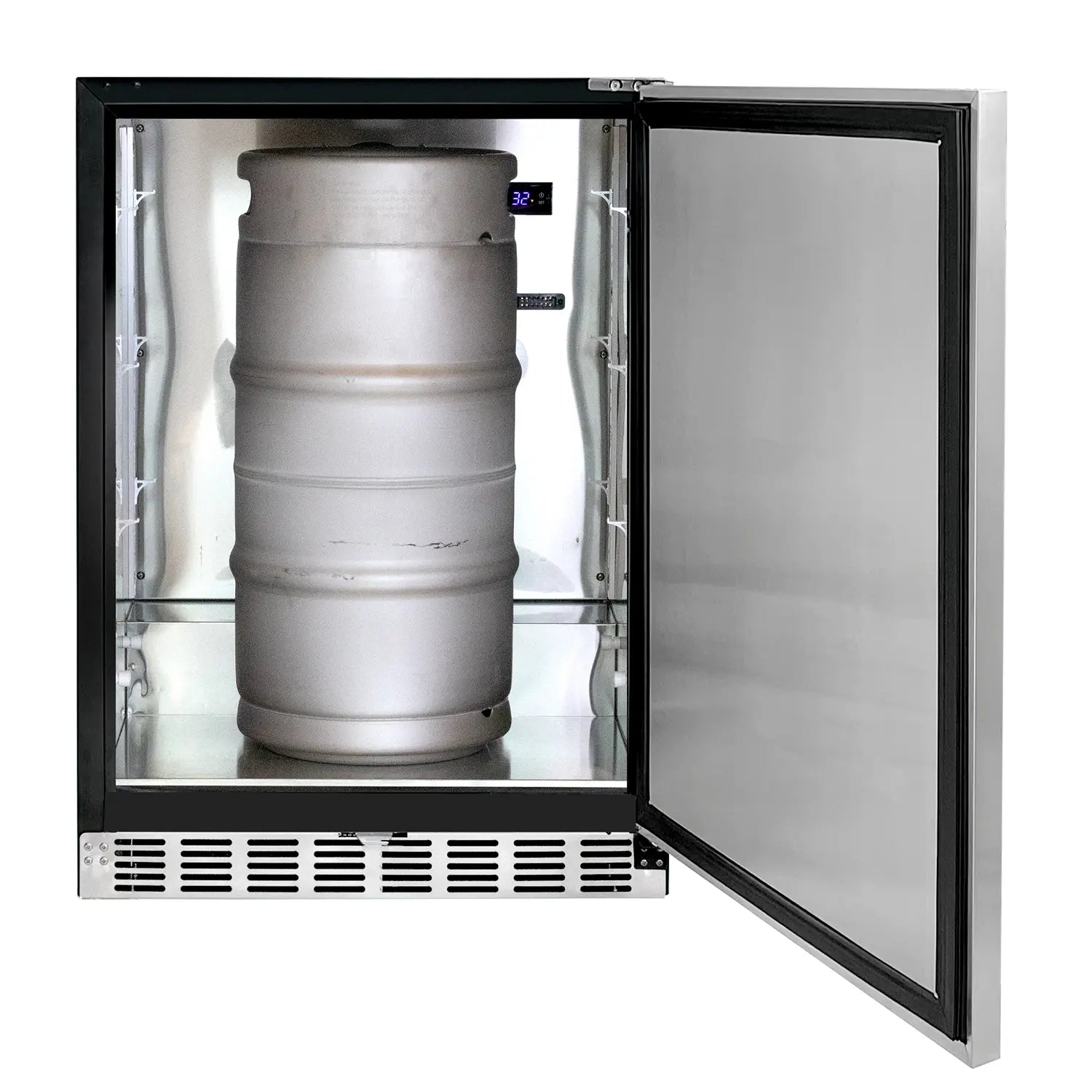

Kegco 24" Wide Single Tap Stainless Steel Built-In Right Hinge ADA Kegerator with Kit

Product Description

This versatile undercounter kegerator is ADA-compliant with a low 32.5" height, making it ideal for accessible installations in home bars, kitchens, or commercial settings. It can be built into cabinetry or used freestanding, offering flexible placement options to suit any space. Premium dispense components come standard, including 100% stainless steel beer contact, a Pro Series double gauge regulator, a corrosion-resistant electric red CO₂ tank, and a cleaning kit to keep your system fresh.

Equipped with forced air refrigeration, it maintains even cooling throughout the cabinet, while the automatic defrost function ensures hassle-free maintenance. The wide temperature range of 32–50°F makes it suitable for serving a variety of beverages like beer, wine, kombucha, or coffee. Inside, the stainless steel interior holds one quarter slim keg or two 5-gallon kegs and can convert into a full refrigerator with the included adjustable wire shelves. Measuring 32.5" H x 23.5" W x 23.5" D, this kegerator delivers commercial-grade performance in a compact, adaptable design.

Instruction Manual

Digital Controller Manual

Installation Guide

Cut Out Sheet

Spec Sheet

Custom Blueprint

Features

• Includes a brand new 5 lb. Aluminum CO₂ Tank with Electric Red Epoxy Finish
  This tank is produced from high strength aluminum alloy 6061-T6, a highly corrosion-resistant material. It features an eye-catching glossy powder-coated epoxy finish in Electric Red that acts as an extra layer of protection against corrosion and wear. The service pressure is up to 1800 PSI/124 BAR with a test pressure of 3000 PSI/207 BAR. These cylinders are stamped with the required U.S. Department of Transportation and Transport Canada markings. The 320 valves are CGA approved and have male thread for CO₂ regulators. An average fill is good for 5-6 kegs.
• Includes Pro Series Double Gauge CO₂ Regulator
  The regulator works with any CO₂ tank with a CGA-320 valve and measures PSI as well as the volume of CO₂ gas left in the cylinder. It has a pressure release valve and a large hand control that makes it easy to adjust the pressure inside of the keg.
• Includes 5 feet of 5/16" I.D. Blue Air Line Assembly with Worm Drive Clamps
  This standard length of 5/16" I.D. blue air/CO₂ tubing is made of thermoplastic vinyl hose (Super Vinyl). This tubing will not rot, swell, or dry out, and is unaffected by normal cleaning compounds. The air line assembly comes with stainless steel worm drive clamps that are easy to install and are resistant to corrosion over time.
• Includes a Low Profile "D" System Keg Coupler
  This low profile 2-3/8" tall coupler is the perfect keg tapping solution for kegerators with limited vertical space. It is compatible with all domestic brand "D" system Sankey kegs and is easy to use - to tap, simply pull out and then down on the lever handle. This coupler features a nickel-plated forged brass body with a sanitary stainless steel probe, a 1/4" I.D. beer outlet barb, and a 3/8" I.D. gas input barb. A 55-psi pressure relief valve allows over-pressurized gas to escape before it can enter your keg.

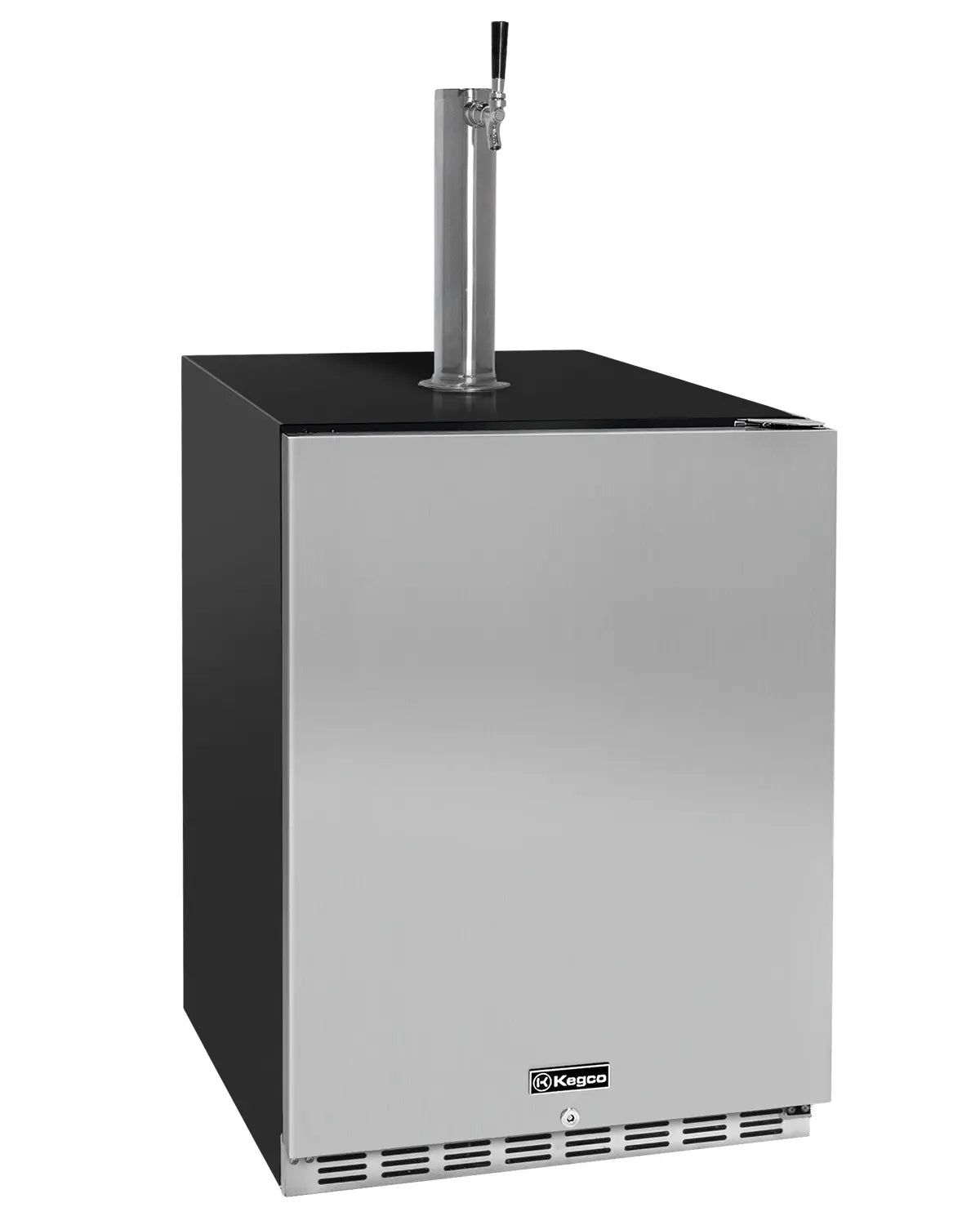

• Includes a Kegco Exclusive 14" Tall, 3" Diameter Polished Stainless Steel Draft Tower
  This NSF-approved tower is a 3" diameter single faucet metal draft tower made of polished stainless steel, and includes 5 feet of 3/16" I.D. clear beer tubing. The faucet, shank, and fittings are all made of 304 grade stainless steel for the ultimate in sanitation. The tower is mounted using the gasket and four screws that are included. This Kegco Exclusive tower measures 14" tall, giving you an extra 2" of space over standard draft beer towers.
• Includes a Draft System Cleaning Kit
  This kit has been specially designed to help you quickly and easily clean your direct draw system. It includes a one quart shatter proof plastic jar with pump and faucet coupler cleaning attachment, a faucet brush, a faucet wrench, and four 0.5 oz. packets of tap cleaner.
• All dispensing accessories are UL recognized components

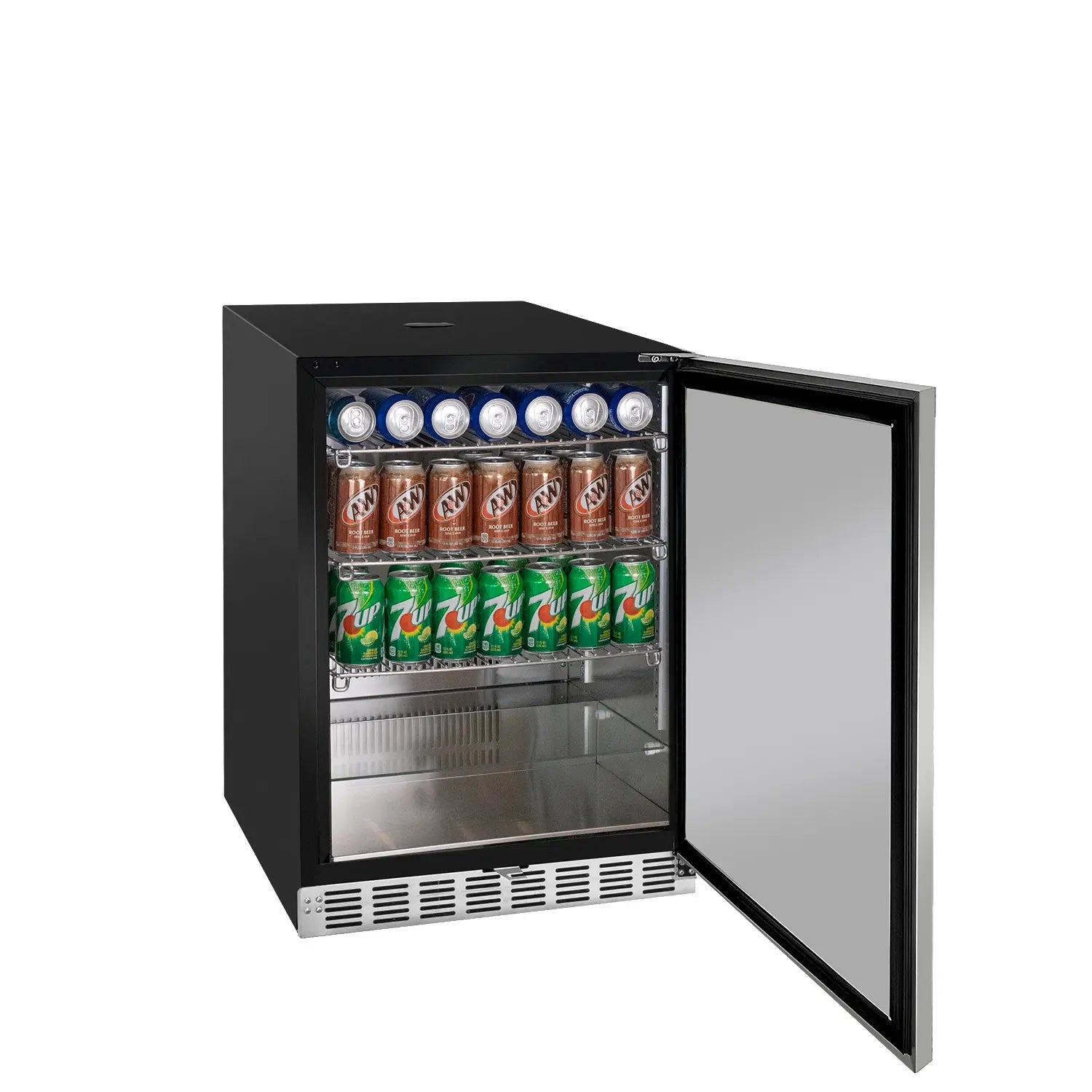

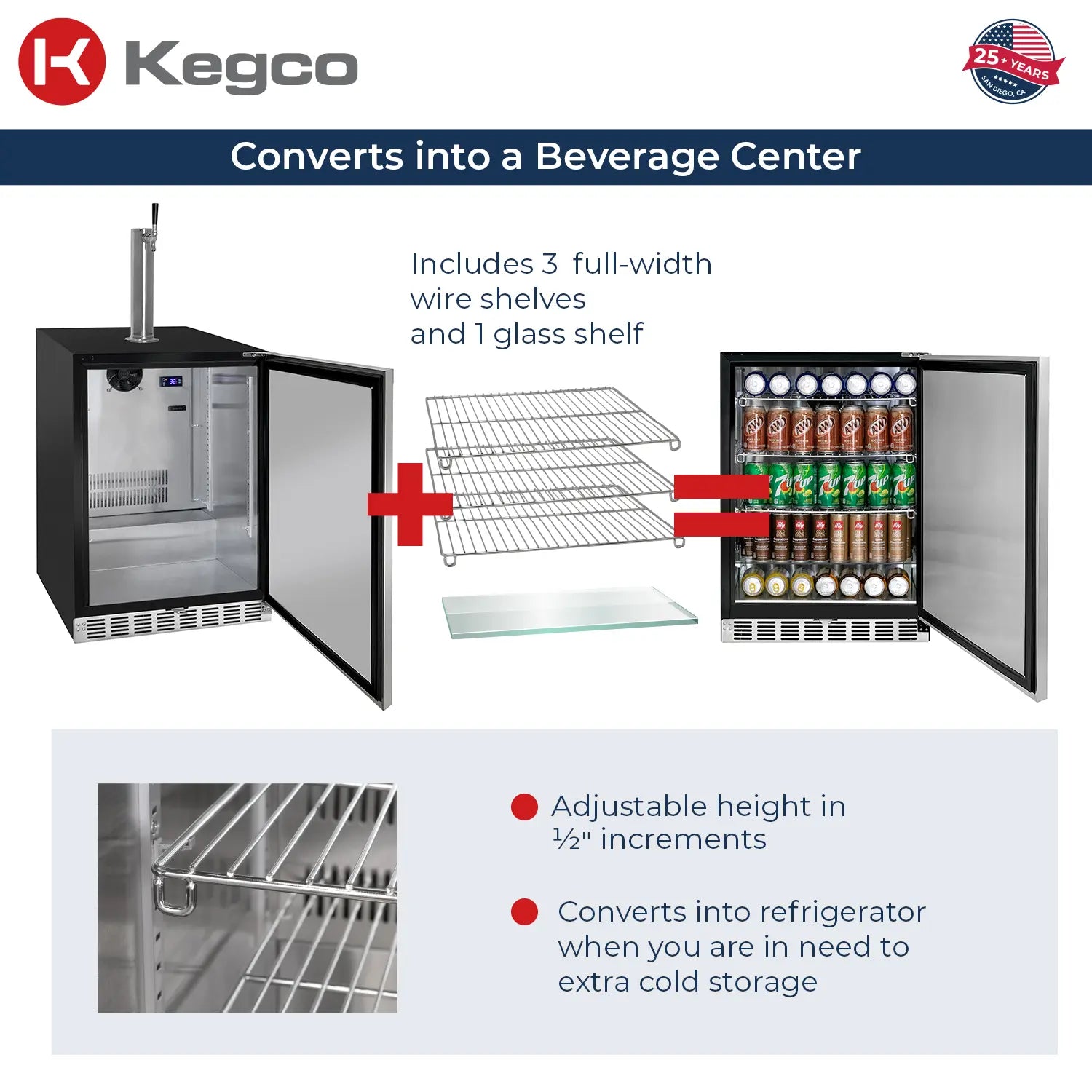

• Converts into a refrigerator using 2 full-width shelves that can be adjusted in 1/2" increments
• Holds (1) quarter slim keg or (2) 5 gallon commercial kegs
• Sleek black cabinet with stylish stainless steel door
• Digital temperature control keeps temperature between 32-50 degrees Fahrenheit
• Maximum Ambient Temperature: 100 degrees Fahrenheit
• Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the ambient temperature.

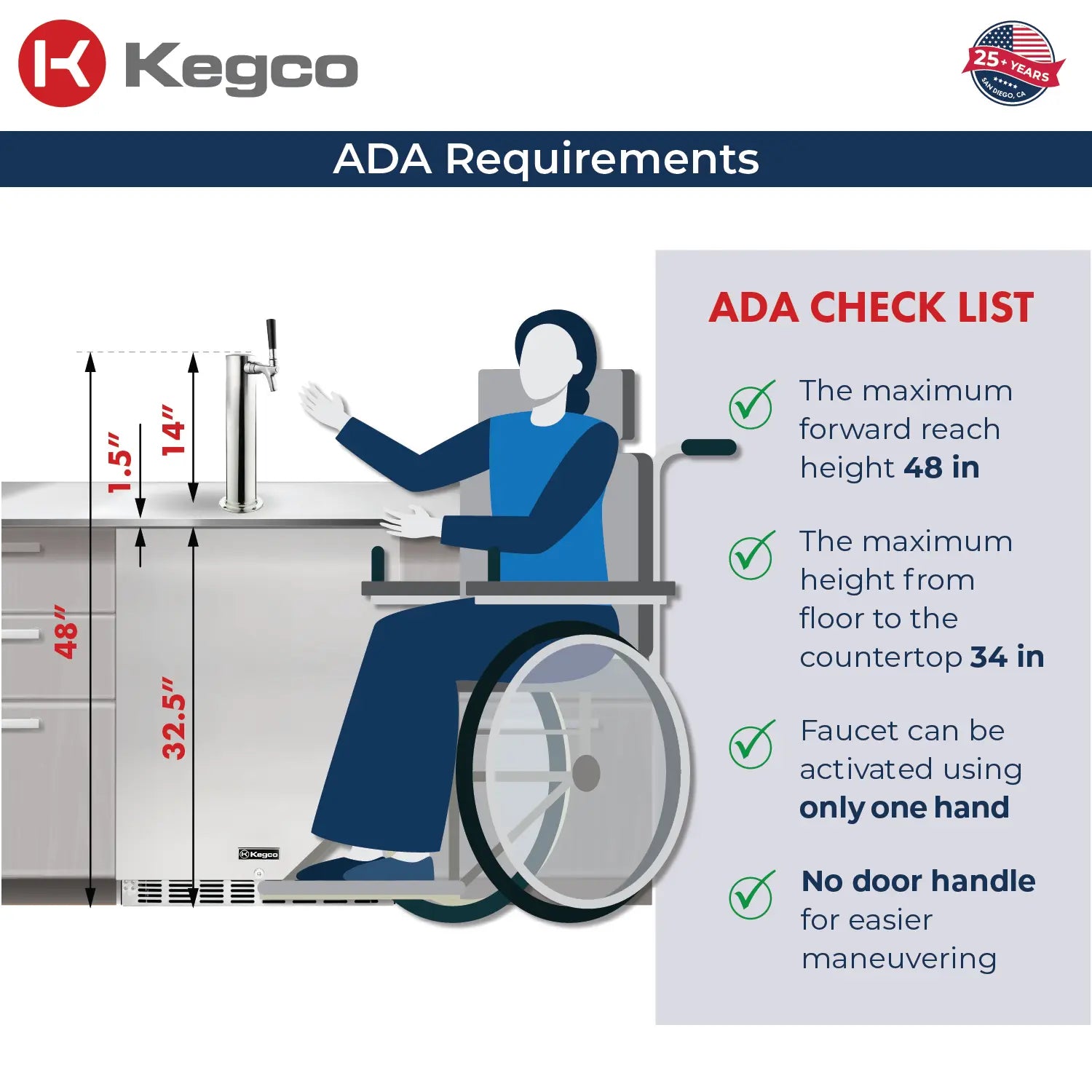

• Low 32.5" height is compliant with ADA requirements
• Stainless steel interior is more durable than the plastic liner found in most kegerators
• Plugs into standard home outlet
