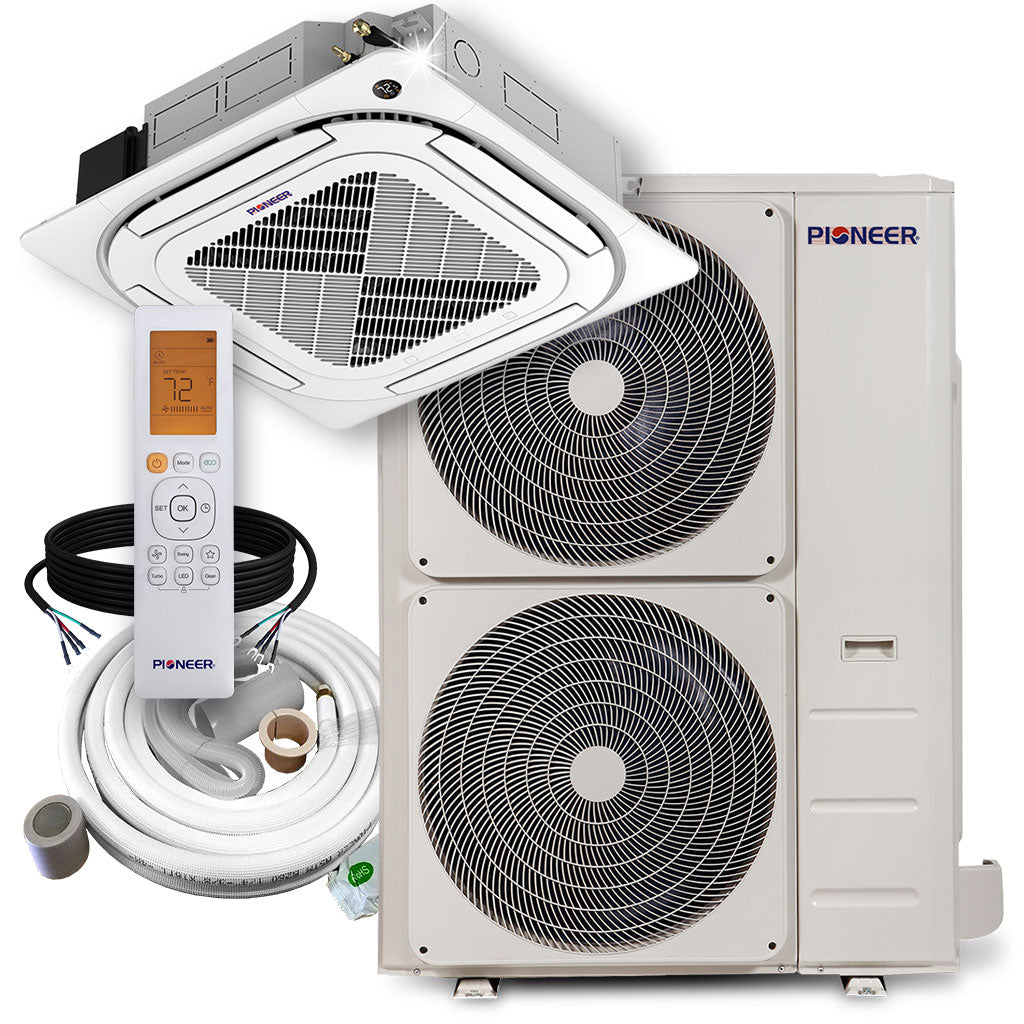

Pioneer® Quantum Ultra™ 48,000 BTU 19 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump

Summary

• High Efficiency Quantum Ultra Four-Way Ceiling Recessed Cassette Split Heat Pump System
• Cooling capacity: 48,000 BTU/H with 19.0 SEER2 / 9.5 EER2 efficiency
• Heating capacity: 50,000 BTU/H with 9.9 HSPF2 / 2.96 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Four-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

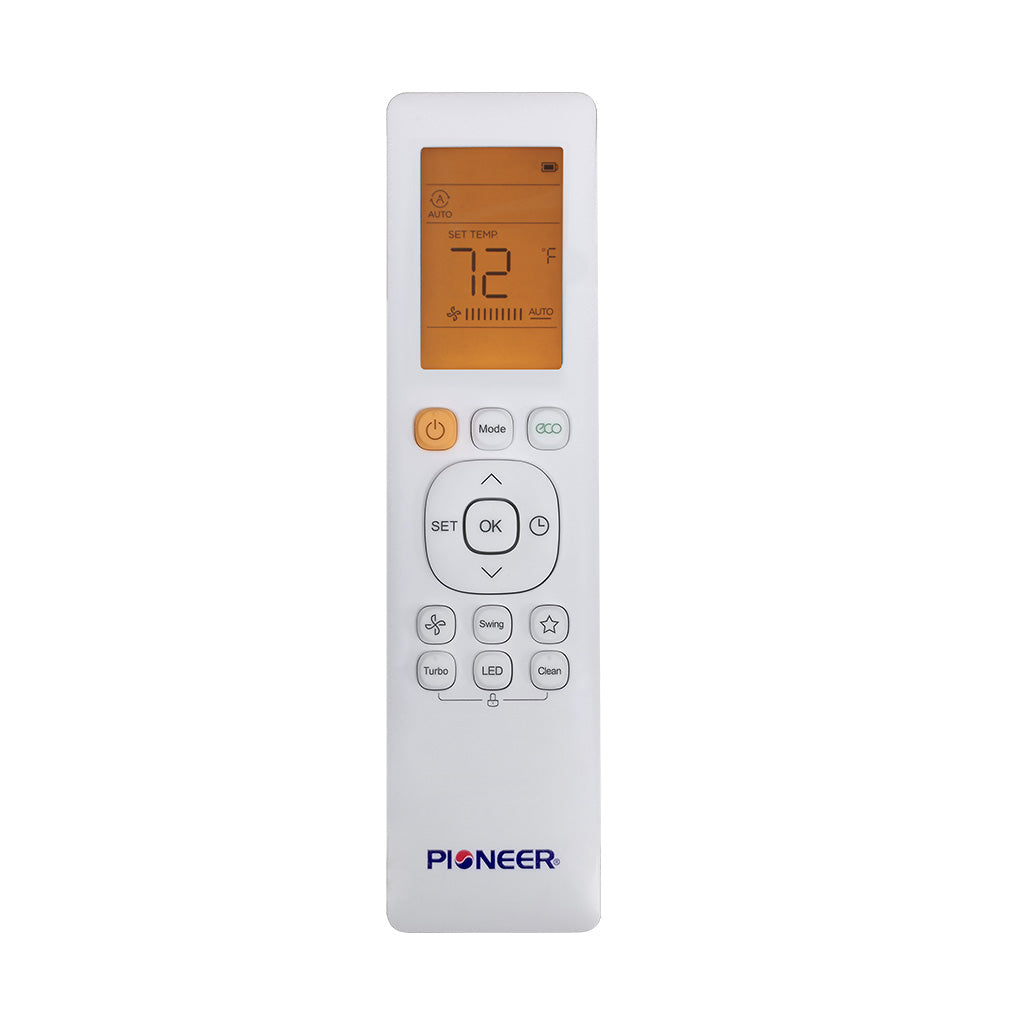

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • FOLLOW ME, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

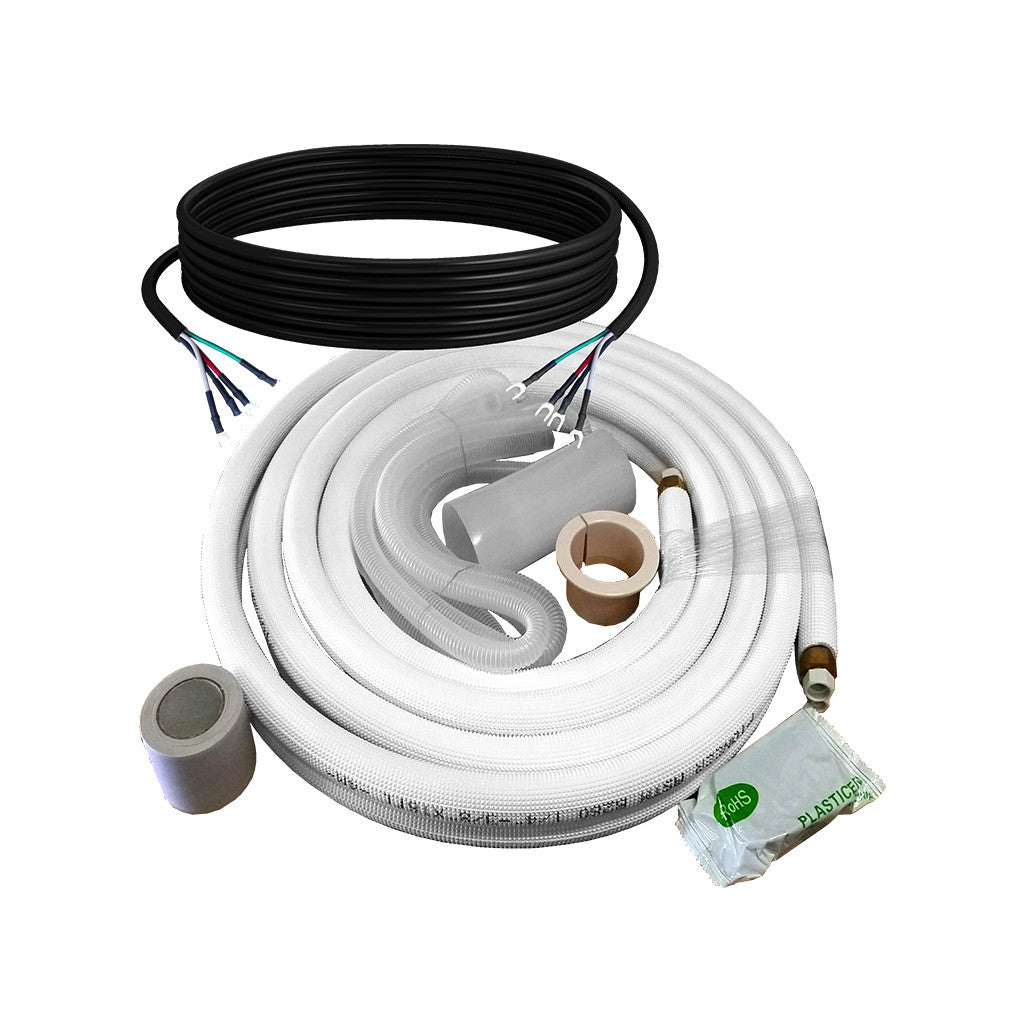

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 48,000 BTU/h
  • Cooling Capacity Range: 10,600~50,400 BTU/h
  • Cooling SEER2: 19.0 BTU/W.h
  • Cooling EER2: 9.5 BTU/W.h
  • Heating Rated Capacity: 50,000 BTU/h
  • Heating Capacity Range: 19,900~61,700 BTU/h
  • Heating HSPF2 (Region IV/V): 9.9 / 7.7 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 2.96 / 2.11 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 1,400~1,800 sq ft
  • Minimum Room Size: 143 sq ft
  • Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
  • AHRI Reference: 218010992
• Indoor Unit
  • Part Number: CB048GMSILDFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 1,236 / 1,124 / 1,018 / 800 / 689 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 56 / 52 / 50 / 42 / 38 dB(A)
  • Product Dimensions (WDH): 32"-5/8 x 32"-5/8 x 11"-3/8 Inches
  • Carton Dimensions (WDH): 35"-7/8 x 35"-7/8 x 13" Inches
  • Net / Gross Weight: 64.5 / 76.1 lbs

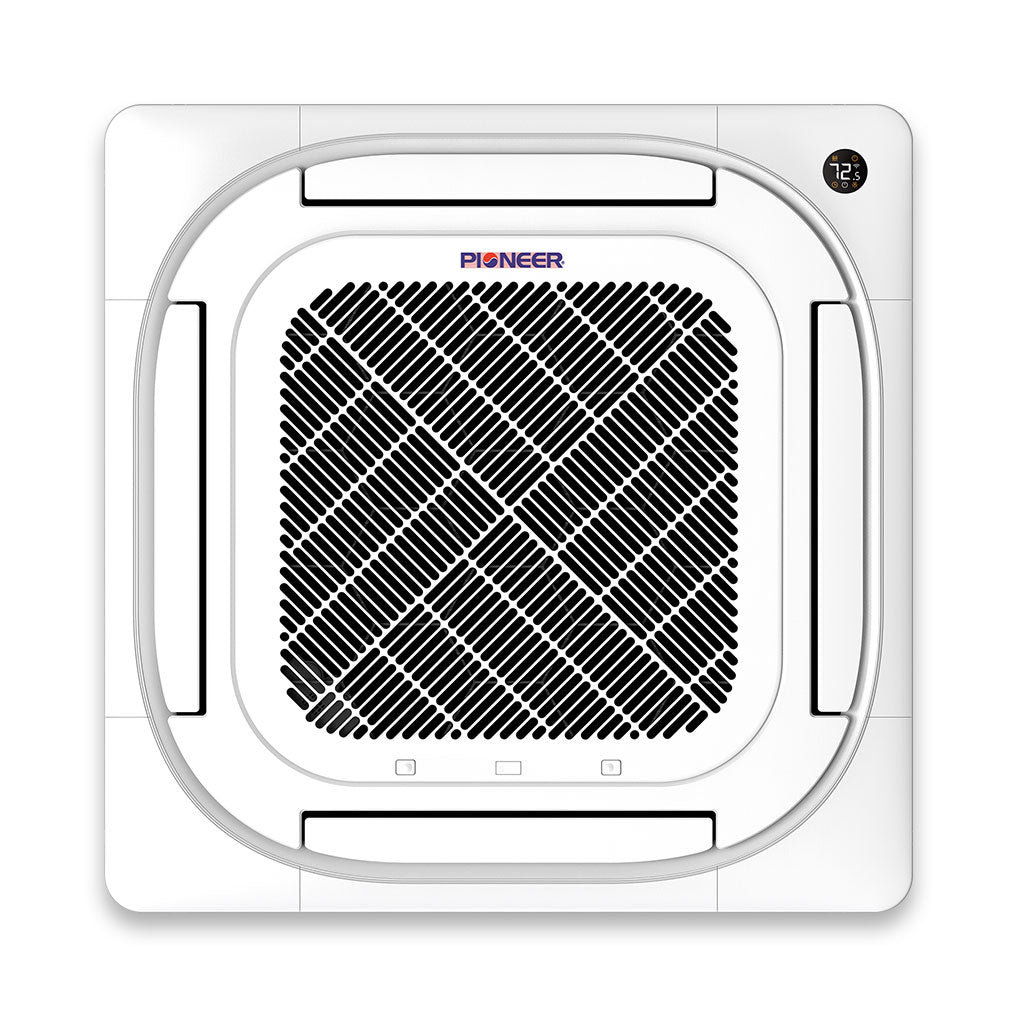

• Decorative Panel
  • Product Dimensions (WDH): 37"-3/8 x 37"-3/8 x 2"-1/8 Inches
  • Carton Dimensions (WDH): 40"-3/4 x 40"-3/4 x 3"-1/2 Inches
  • Net / Gross Weight: 13.2 / 19.8 lbs

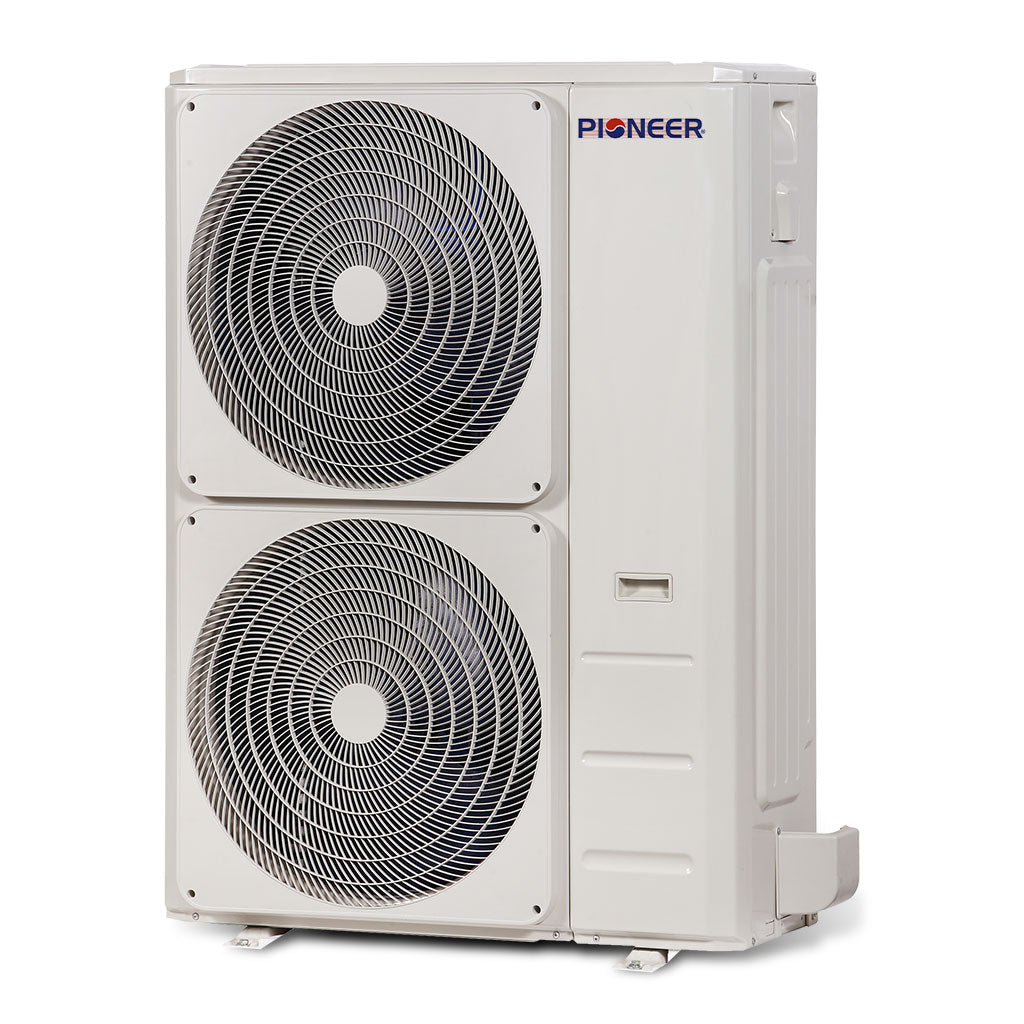

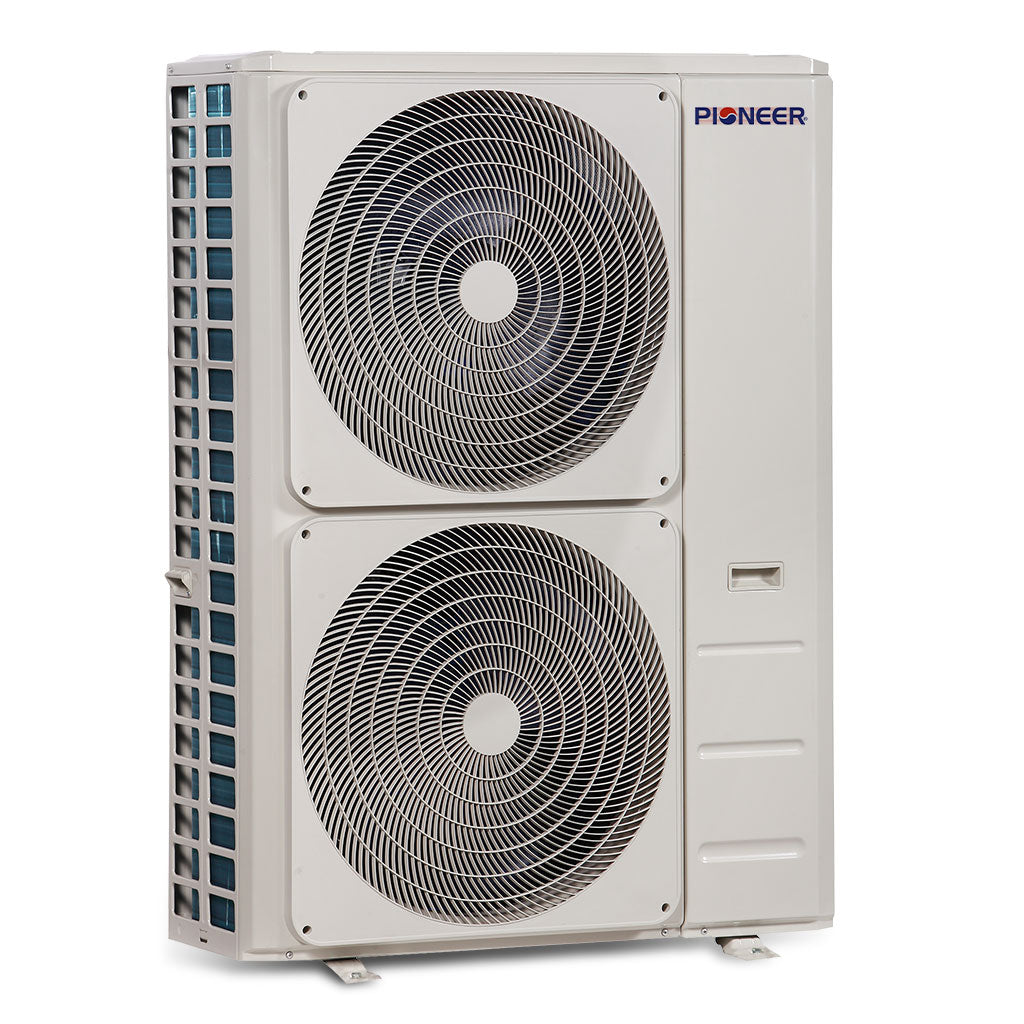

• Outdoor Unit
  • Part Number: YN048GMSI20RUG
  • Breaker Needed: 40A (double-pole)
  • Sound Level: 64 dB(A)
  • Net Dimensions (WDH): 37"-1/2 x 16"-3/8 x 52"-1/2 Inches
  • Carton Dimensions (WDH): 43"-1/8 x 19"-1/2 x 57"-1/2 Inches
  • Net / Gross Weight: 208.8 / 239.8 lbs
