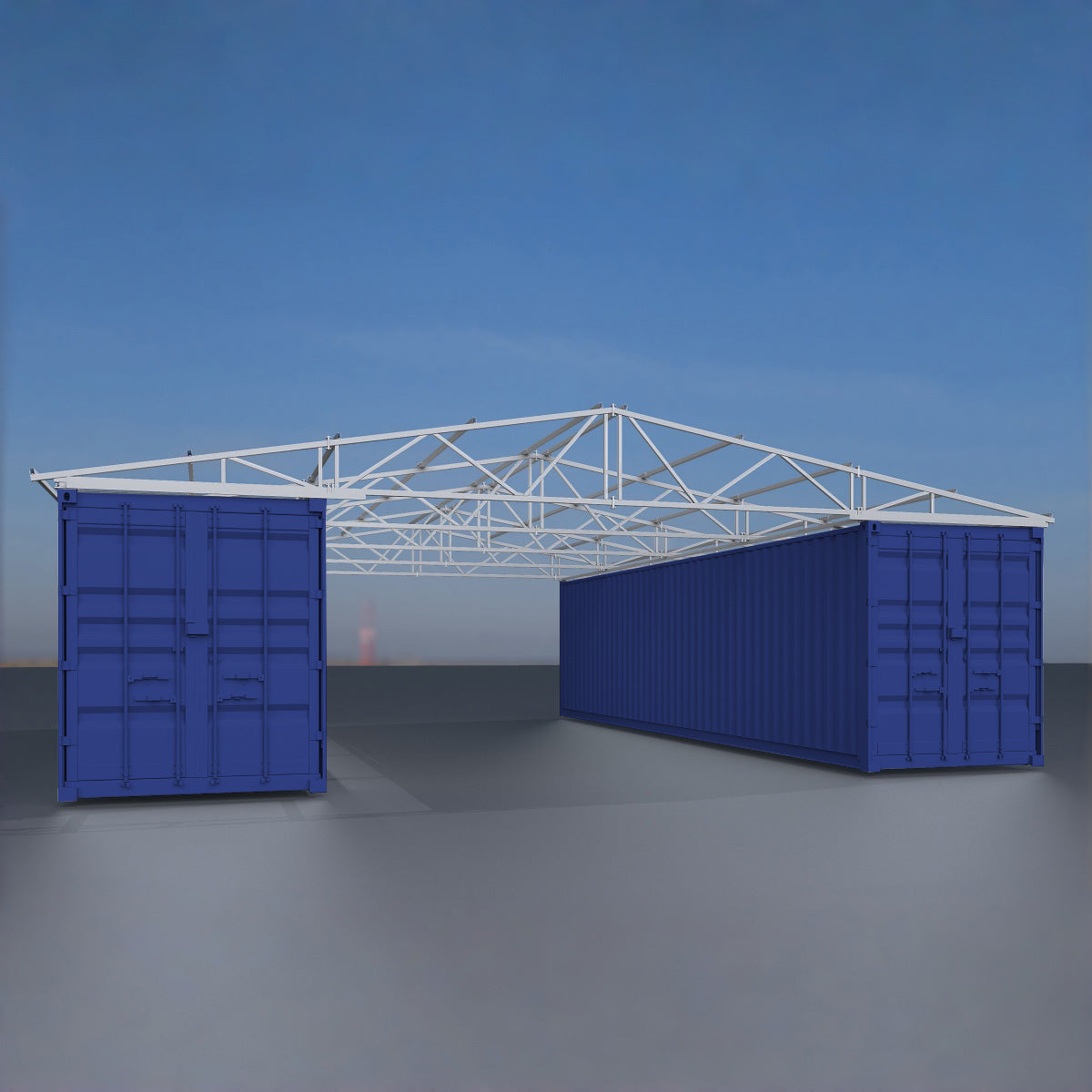

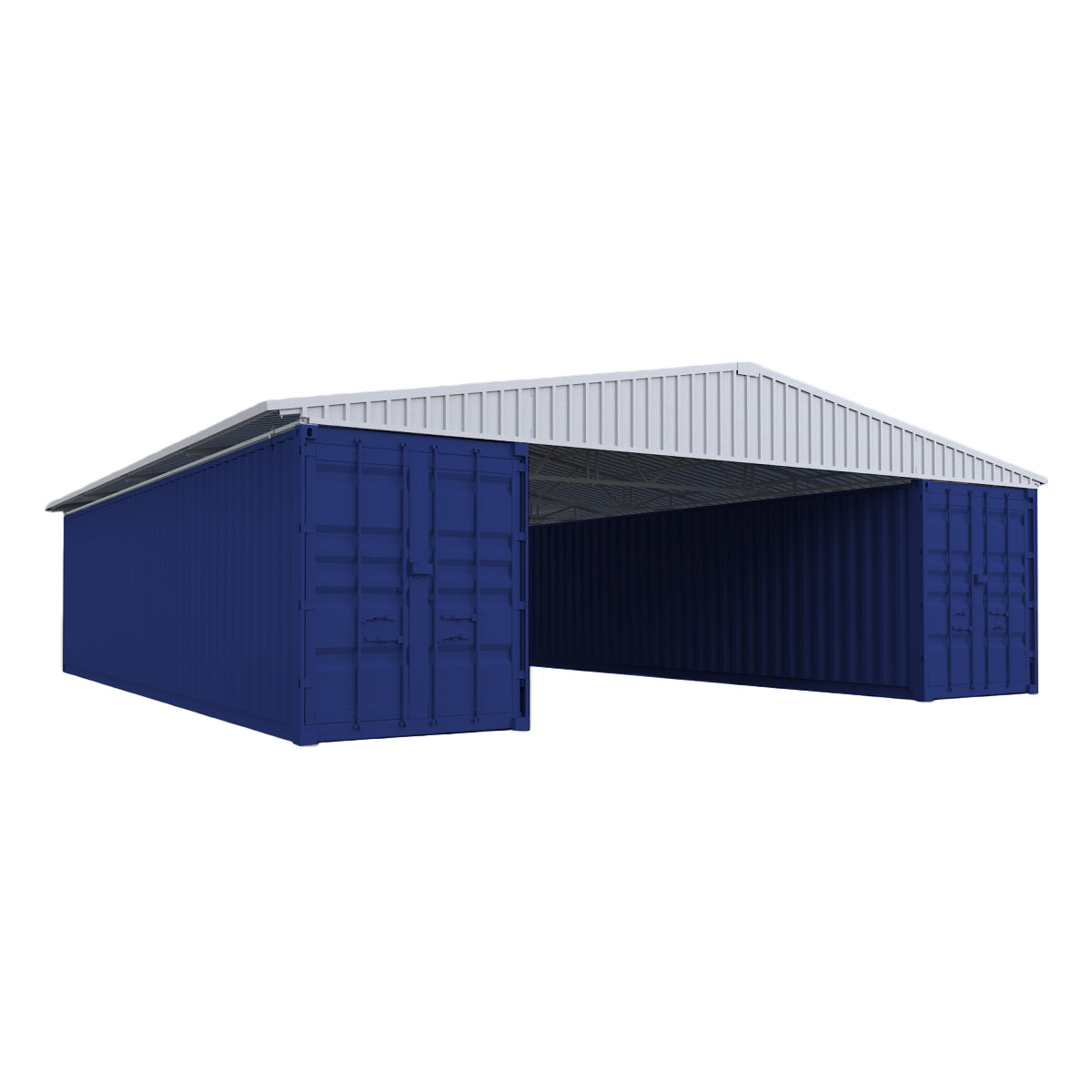

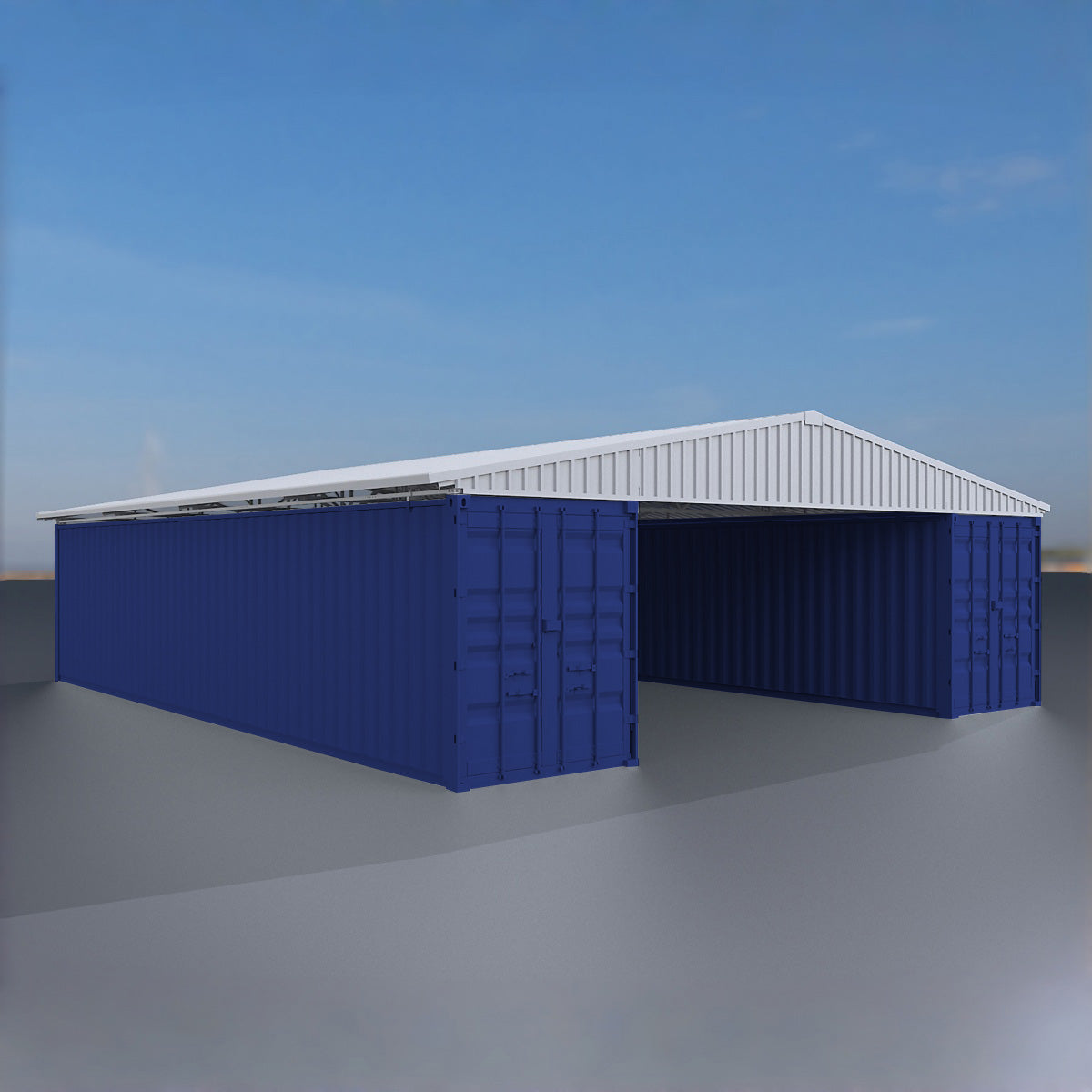

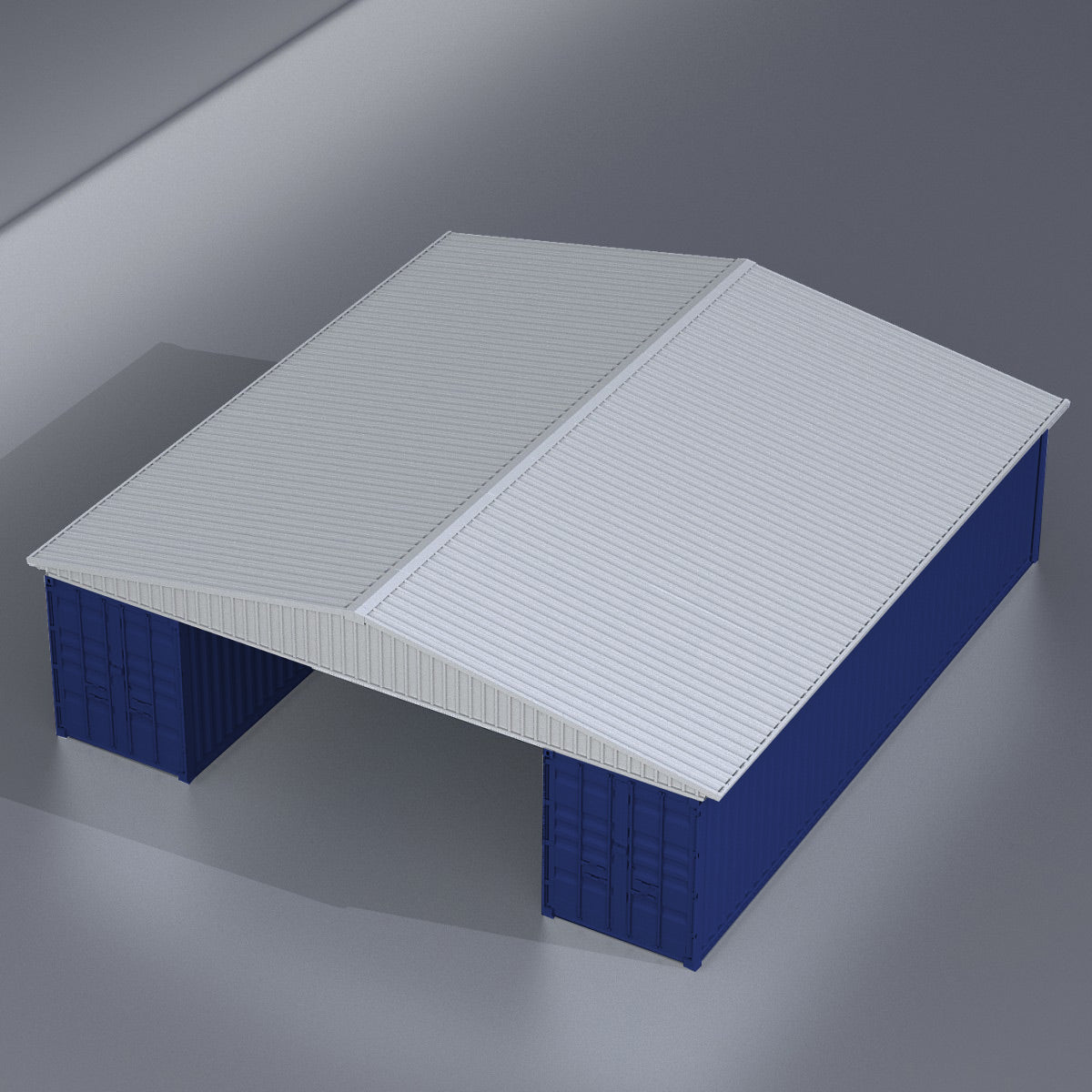

Construct a durable roof for your 40-foot shipping container with this W36xL40xH4 kit. Engineered for strength, it features a robust galvanized steel frame with rectangular main poles (40x60x1.5mm & 40x40x1.2mm) and heavy-duty 40x80x1.8mm base poles. The trusses are strategically spaced at 9.9ft to provide superior structural support and weather resistance, ensuring your cargo remains secure.
Specification
| Description |
Specifications |
| Model |
C364004 Dome Container Shelter |
| Dimension (ft) |

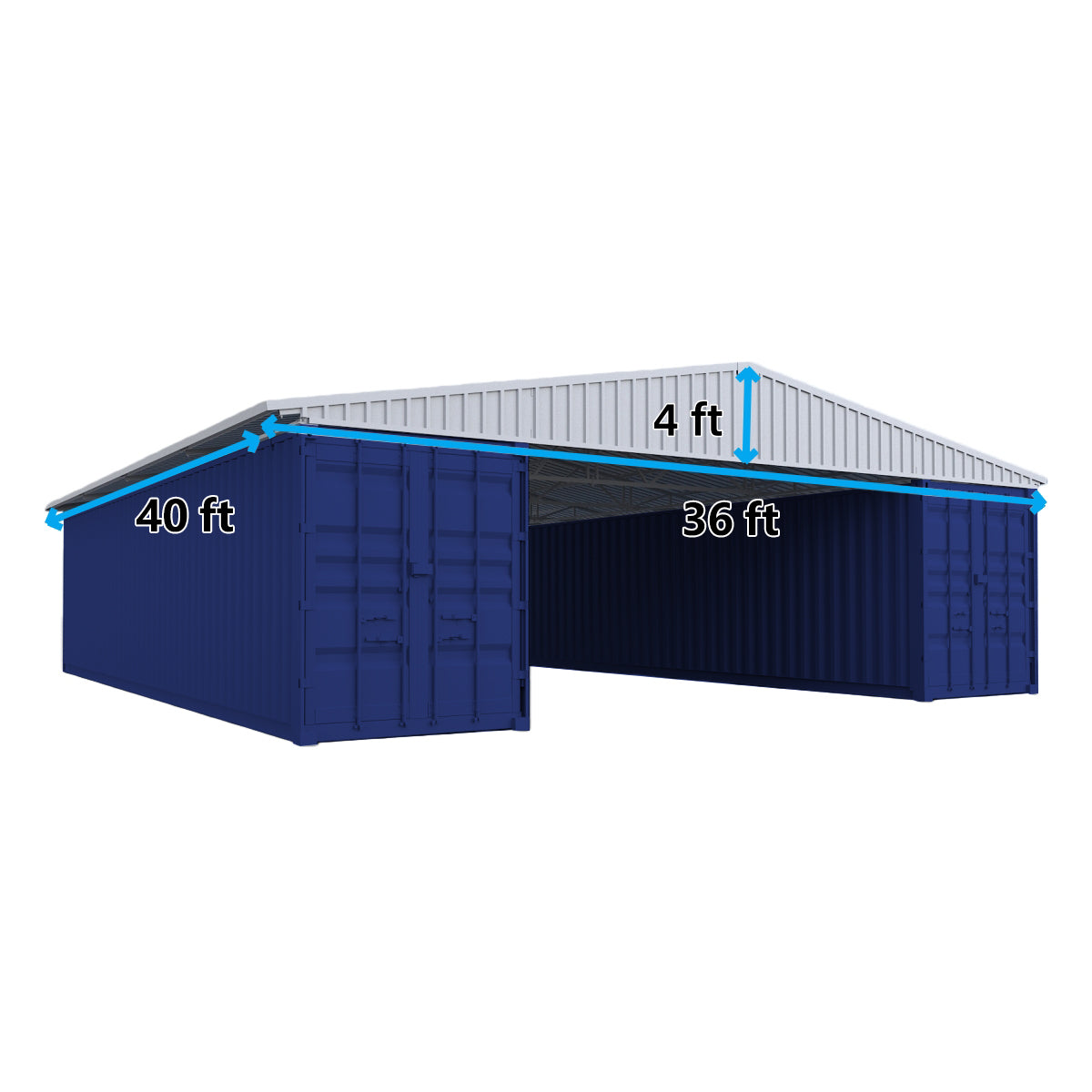

W36xL40xH4 |
| Frame |
Double Truss Galvanized Tube |
| Steel Structure |
High-Grade Hot Dip Galvanized Steel |
| Fabric Feature |
Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature resistance |
-22 - +158 °F |
| Front/back walls (optional) |
|
| Arch Interval |
9.9 ft |
| Mainframe Poles |
Rectangle 40x60x1.5mm Rectangle 40x40x1.2mm
|
| Base Poles |
40x80x1.8mm |
| Purlin Ø (mm) |
Rectangle 40x60x1.8 |
Package Size
- LxWxH (inch):
- Weight (lb):
- A forklift or equivalent is required for unloading.
